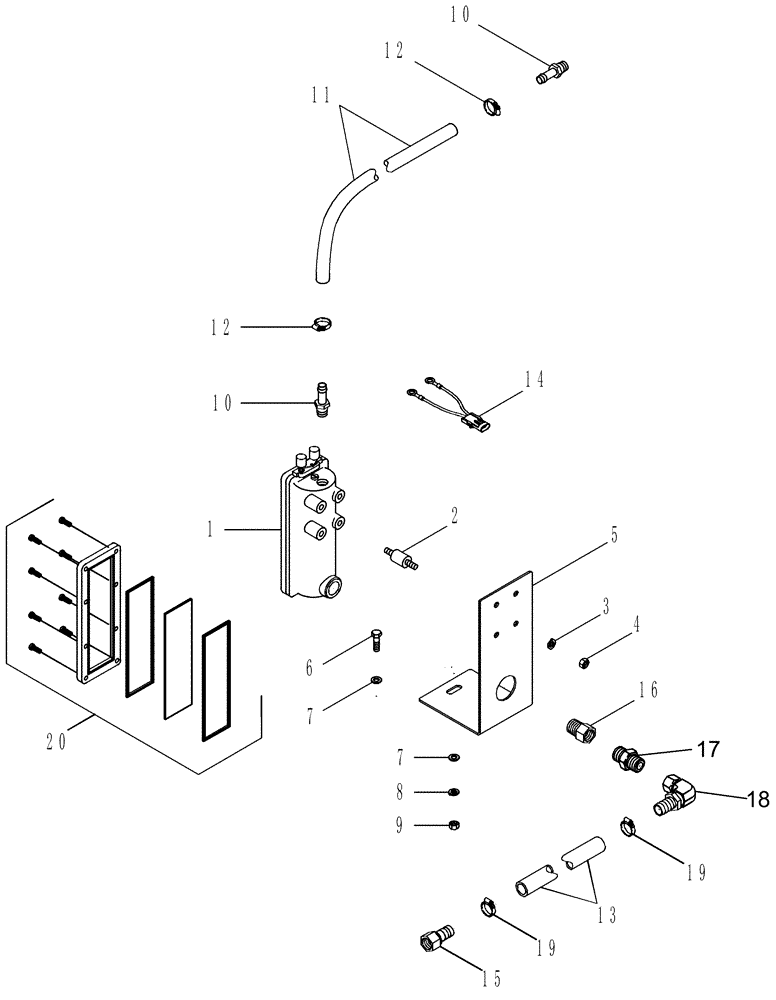

Запчасти Case IH P110 (04-03) - OIL LEVEL SHUTDOWN (04) - ELECTRICAL SYSTEMS

1

1347701C1

SWITCH ASSY

Oil Level, High/Low, Incl 2 - 4

1шт.

2

251203A1

MOUNT

Rubber, Shock

2шт.

3

492-11025

LOCK WASHER,1/4"

2шт.

4

425-104

NUT,1/4"-20, Cl 5

2шт.

5

1347702C1

BRACKET

Mounting, Switch

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

2шт.

11

706670C1

HOSE

3/8 ID, Oil Gauge Supply, Cut to 16 inches

1шт.

12

1348264C1

HOSE CLAMP

2шт.

13

73200C1

HOSE,16mm ID x 1219.2mm L

Oil Gauge Vent, Cut to 7 inches

1шт.

14

87448292

WIRE HARNESS

Oil level

1шт.

15

87448295

END FITTING

Straight, 5/8 Stem End x 3/4-16 female

1шт.

16

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

17

217-1103

HYD CONNECTOR,1/2" - 14 NPT x 1/2" - 14 NPT

1шт.

18

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

19

9706921

HOSE CLAMP,12.7mm - 35mm

2шт.

20

87455568

REPAIR KIT

Includes (1) Bezel, (1) Glass, (2) Gaskets and (8) Screws

1шт.
