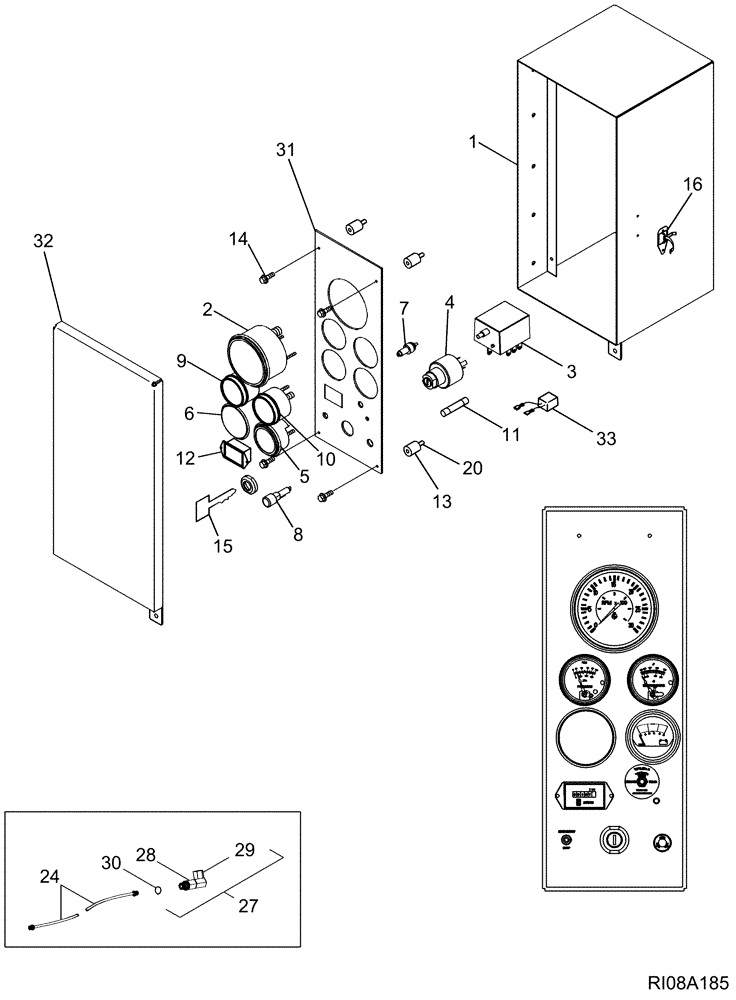

Запчасти Case IH P110 (04-02) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

84294040

BOXED PANEL

PLASTIC

1шт.

1

87708281

CONTROL PANEL

Inc. 31, 32 STEEL

1шт.

2

87463102

TACHOMETER

Without Hour Meter

1шт.

2

84293165

TACHOMETER

With Hour Meter

1шт.

3

102787A1

KIT

Shutdown

1шт.

4

D134737

IGNITION SWITCH

Switch, Inc. Keys and Nut

1шт.

5

87708275

GAUGE

1шт.

6

353-256

PLUG,1 1/8"

1шт.

7

1347699C1

BUTTON

Emergency Stop

1шт.

8

1347753C1

HOLDER

Fuse

1шт.

9

87708277

GAUGE

Oil

1шт.

10

87708278

GAUGE

Temperature

1шт.

11

590420

FUSE

15 Amp

1шт.

12

87708280

HOURMETER

Hour meter

1шт.

13

87708282

ISOLATOR

4шт.

14

86521549

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

15

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

16

87708284

LATCH

1шт.

17

87030764

RIVET,Pop, 1/8" x .400"

2шт.

18

240667A1

TERMINAL CONNECTOR,2 - 12 Pin, 8 - 24 SAE

Terminal

1шт.

19

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

1шт.

20

9706690

NUT,M8 x 1.25, Cl 8

4шт.

21

292029

SPECIAL TOOL

Seal Tape

3шт.

22

87719450

ELBOW

1шт.

23

86977693

NUT,Serrated, #8 - 32, Gr 5

2шт.

24

283983A1

HOSE,45.00"

Oil pressure

1шт.

25

87708286

BUSHING

1шт.

26

87105416

HOSE PROTECTION,16.64 mm ID x 1345.00 mm

1шт.

27

87448350

PIPE FITTING

Inc. 28 -30

1шт.

28

250838A2

HYD CONNECTOR

1шт.

29

87448356

ELBOW

1шт.

30

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

31

NSS

NOT SOLD SEPARAT

Face Plate

1шт.

32

NSS

NOT SOLD SEPARAT

Cover

1шт.

33

388061A1

DIODE

1шт.
