(0.32.6[01]) - THERMOSTAT - ENGINE COOLING SYSTEM

Запчасти Case IH P110 (0.32.6[01]) - THERMOSTAT - ENGINE COOLING SYSTEM (02) - ENGINE

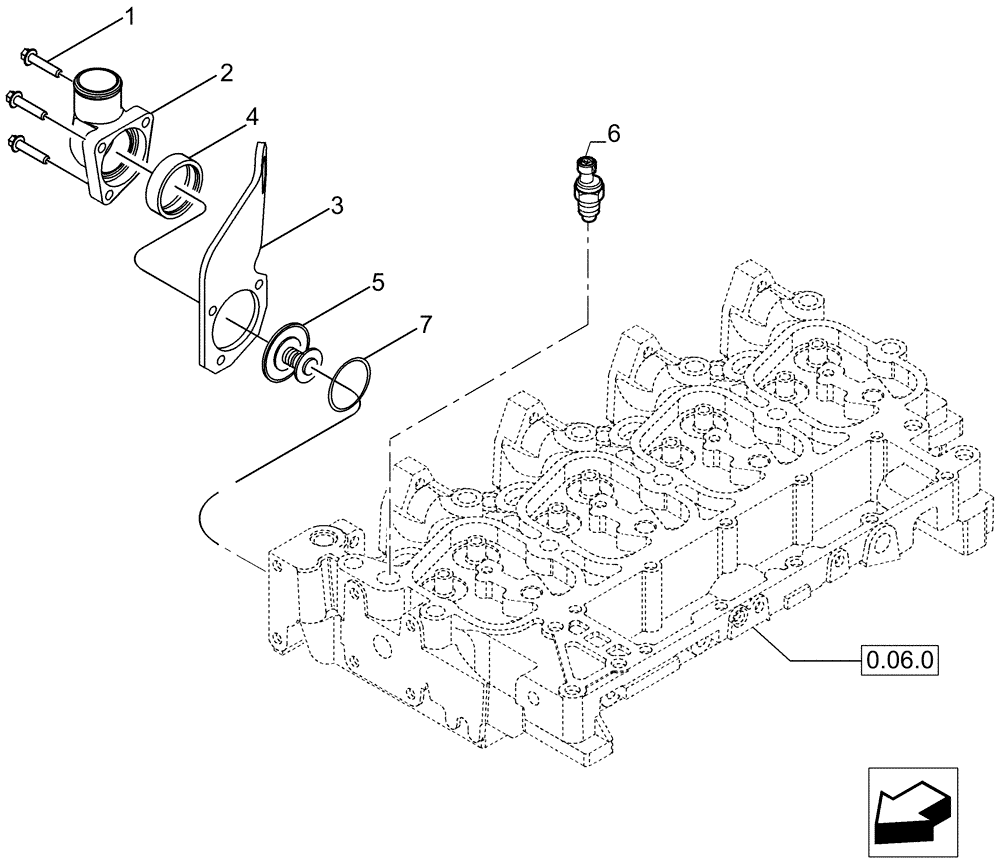

Схема запчастей Case IH P110 - (0.32.6[01]) - THERMOSTAT - ENGINE COOLING SYSTEM (02) - ENGINE
1
4
7
3
5
6
0.06.0
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

3шт.

2

87803567

HOUSING

1шт.

3

2856571

BRACKET

1шт.

4

2853133

GASKET,51.5mm ID x 61.5mm OD x 16.5mm Thk

1шт.

5

2856541

THERMOSTAT

1шт.

6

2852157

SENSOR

3-Pin

1шт.

6

84293493

TEMPERATURE SENDER

2-Pin

1шт.

7

2852473

GASKET,53.62mm ID x 59.72mm OD x 4.01mm Thk

1шт.

Выбрано товаров: 8
