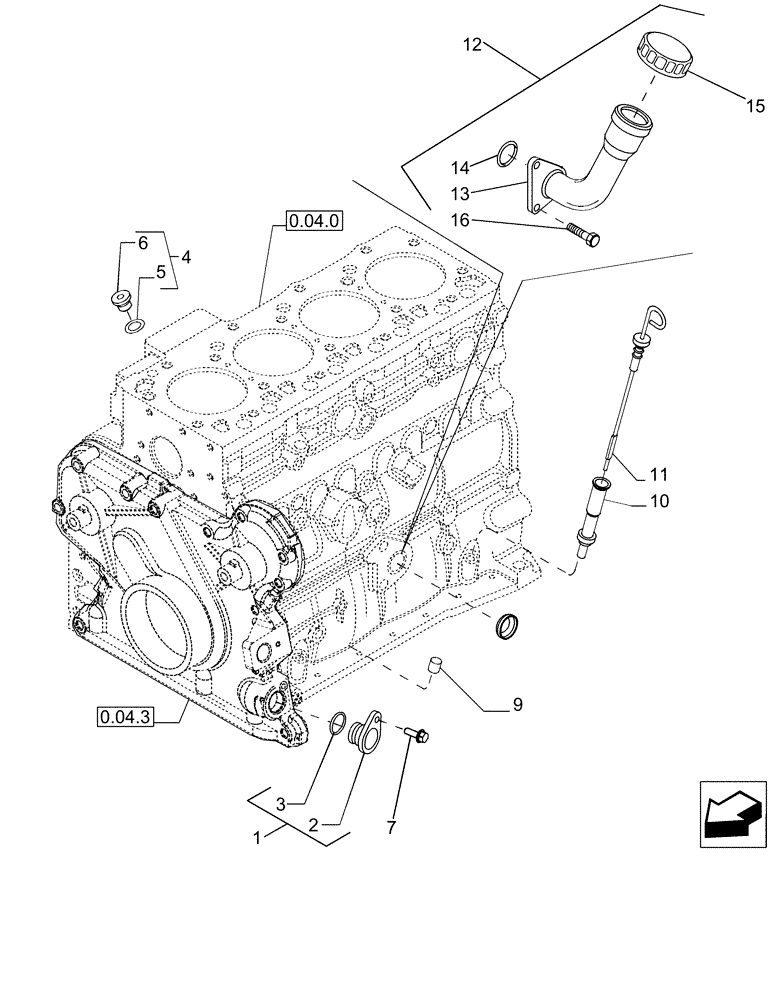

Запчасти Case IH P110 (0.27.0[01]) - ENGINE OIL DIPSTICK (02) - ENGINE

1

2855059

PLUG

- ASSY, Inc. 2, 3

1шт.

2

2855060

1шт.

3

2852801

O-RING

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

- Assy; Incl. 5, 6

2шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

4897459

PLUG,M12 x 1.5 x 11.5mm L

1шт.

7

2853118

BOLT,Hex, M6 x 1 x 18mm

1шт.

8

4895037

EXPANSION PLUG,32.03mm

1шт.

9

4895406

EXPANSION PLUG,9.8mm OD

1шт.

10

2852122

TUBE,81 mm Length

Oil Level

1шт.

11

2852125

DIPSTICK,351.5mm L

1шт.

12

87471919

SERVICE KIT

Inc. 13 - 16

1шт.

13

2852130

RIGID TUBE,42.43 mm OD, 150, 119.4 mm Length

1шт.

14

14458681

O-RING,1.487" ID x 0.103" Width

1шт.

15

2852136

CAP,48mm ID x 56mm OD x 18mm W

1шт.

16

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.
