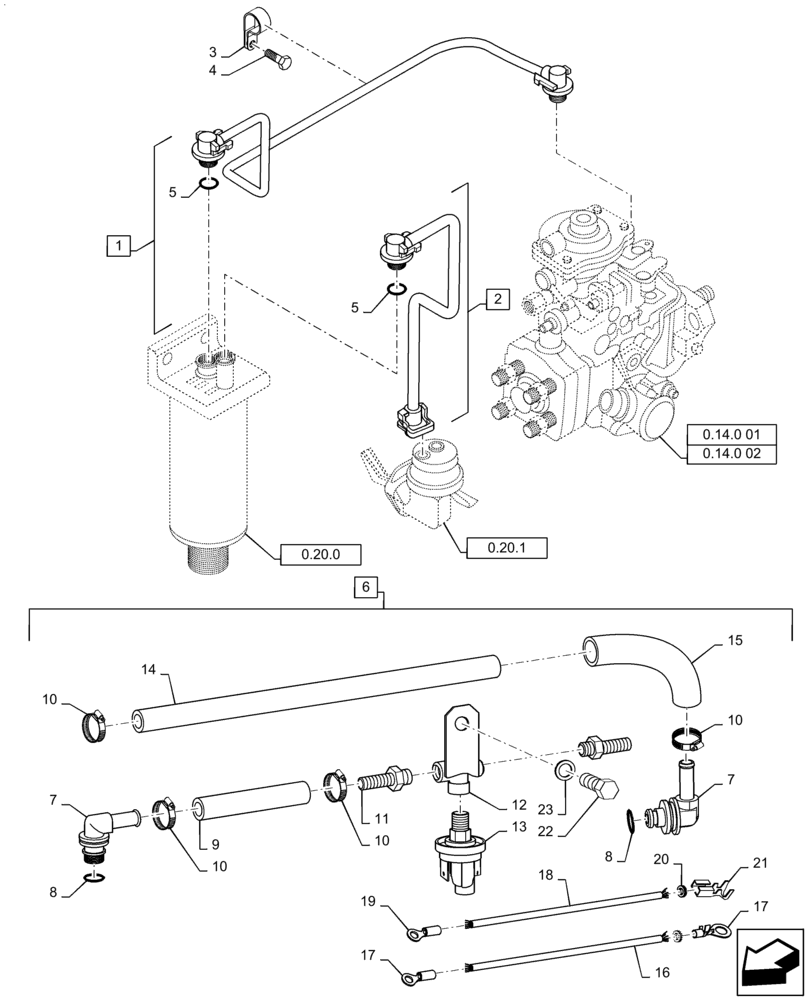

Запчасти Case IH P110 (0.20.3[01]) - FUEL TUBE (02) - ENGINE

1

2830480

INJECTION PIPE

Assy

1шт.

2

2830473

TUBE

Assy, Incl Clip NSS

1шт.

3

4895462

CLAMP

1шт.

4

4899068

BOLT,Flng, M8 x 1.25 x 16mm

1шт.

5

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

4шт.

6

84606864

SERVICE KIT

Fuel Pressure, Used in place of 2830480, Incl 7 - 23, Start Serial: DJA0024222

1шт.

7

87414560

90 ELBOW

2шт.

8

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

9

364357C2

HOSE,9.53mm ID x 304.8mm L, SAE 30R7

Cut to 60 mm

1шт.

10

86625022

HOSE CLAMP,6.3mm - 15.7mm

4шт.

11

87575678

HYD CONNECTOR

2шт.

12

NSS

NOT SOLD SEPARAT

Bracket Included in 6

1шт.

13

84606881

PRESSURE SWITCH

Fuel Pressure 2 PSI

1шт.

14

364357C2

HOSE,9.53mm ID x 304.8mm L, SAE 30R7

Cut to 305 mm

1шт.

15

47368717

HEATER HOSE

Replaces Unicoil Spring, If Equipped

1шт.

16

NSS

NOT SOLD SEPARAT

Wire, 16 GA Black 160 mm, Incl in 6

1шт.

17

225058C1

TERMINAL CONNECTOR

# 8 Ring

2шт.

18

NSS

NOT SOLD SEPARAT

Wire, 16 GA Blue 400 mm, Incl in 6

1шт.

19

86982786

ELEC. TERMINAL PIN,14 - 16 SAE

Terminal Connector, 5/16 "Ring

1шт.

20

225125C1

SEAL

Terminal

1шт.

21

87680656

CONTACT

Terminal Connector

1шт.

22

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

23

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

1шт.
