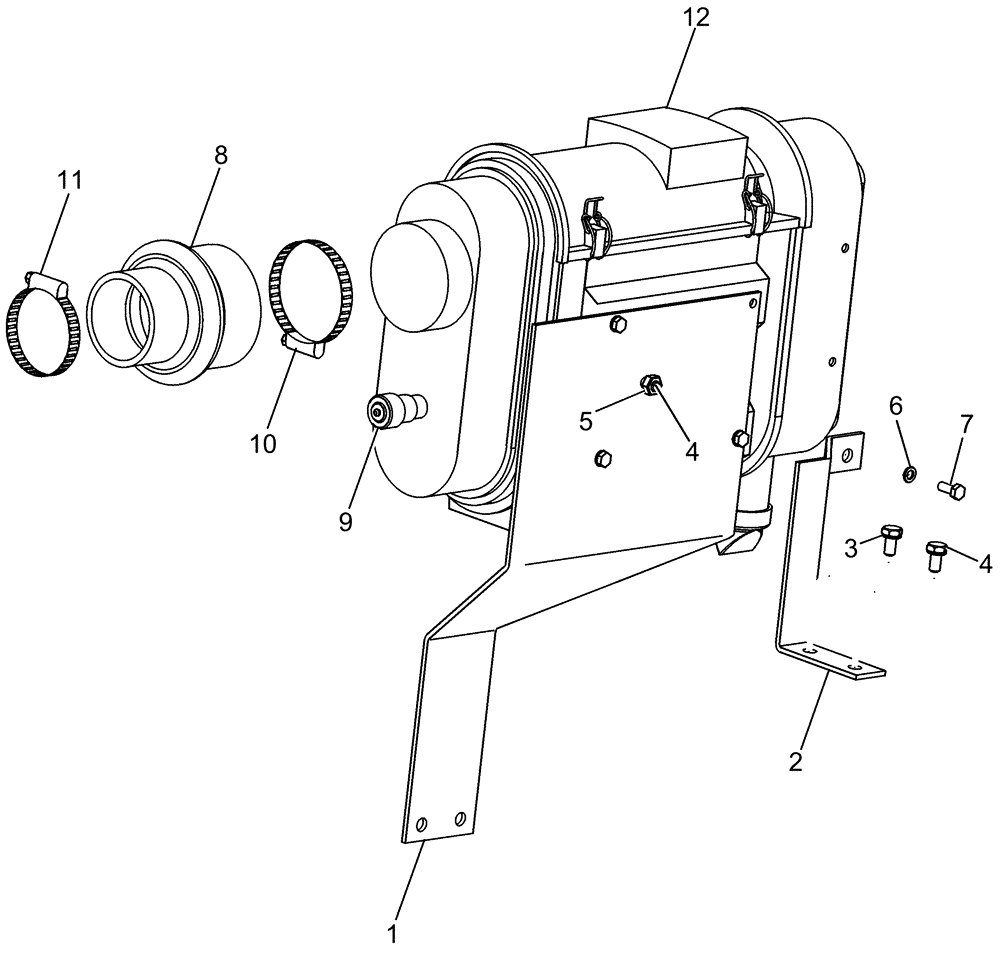

Запчасти Case IH P110 (02-03) - AIR CLEANER AND MOUNTING (02) - ENGINE

1

87716540

BRACKET

1шт.

2

87716541

BRACKET

1шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

5

100016

NUT,M10 x 1.5, Cl 8

1шт.

6

892-11008

LOCK WASHER,8mm ID

4шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

8

A56094

HOSE

4 Inch ID to 3 Inch ID

1шт.

9

533917C2

GAUGE

Air restriction

1шт.

10

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

11

87040758

HOSE CLAMP,71.4mm - 95.2mm

1шт.

12

87716549

AIR CLEANER

1шт.

See Figure 02-04

1шт.
