Запчасти Case IH P110 (02-01) - COOLING SYSTEM AND DEAERATION TANK (02) - ENGINE

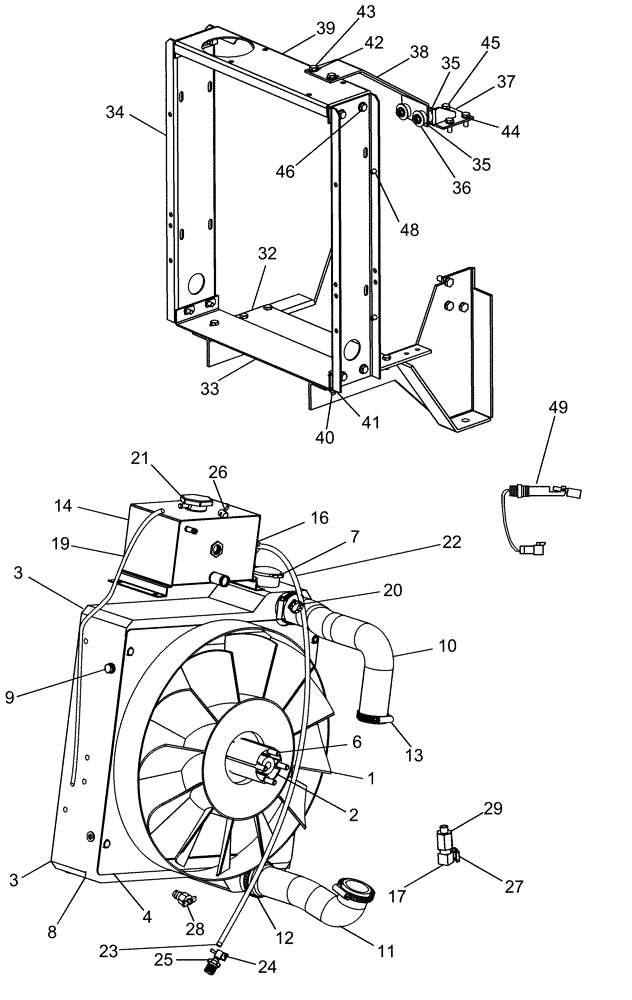

Схема запчастей Case IH P110 - (02-01) - COOLING SYSTEM AND DEAERATION TANK (02) - ENGINE
34
10
21
32
28
2
39
6
35
36
44
26
7
11
38
24
4
17
43
22
1
9
13
46
8
27
25
42
19
41
33
3
12
29
40
14
20
48
49
37
23
45
3
16
35

Артикул

Название

Примечание

Количество

1

87405214

FAN

12 Blade, 19-11/16 in Diameter

1шт.

2

86998478

SPACER

Fan

1шт.

3

239739A2

RADIATOR

4 Row

1шт.

See Figure 02-02

1шт.

4

186433A1

SHROUD

Fan

1шт.

5

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

(Not Shown)

4шт.

6

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

4шт.

7

253858A1

PLUG

1шт.

8

190562A2

SEALING STRIP,30mm W x 546mm L x 12.7mm Thk

Shroud

2шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

10

87707875

RADIATOR HOSE,1.77" ID x 12.32"

Upper

1шт.

11

87707873

RADIATOR HOSE,57.40 mm ID x 10.30 mm

Lower

1шт.

12

L115548

CLAMP,57.15mm - 79.38mm

1шт.

13

254026A1

HOSE CLAMP,44.45mm - 66.67mm

1шт.

14

87707874

TANK

Deaeration

1шт.

15

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

(Not Shown)

4шт.

16

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

1шт.

17

87271484

FITTING

1шт.

18

892-11010

LOCK WASHER,M10

(Not Shown)

4шт.

19

277647A1

HOSE

3/4 Inch x 40 Inch

1шт.

20

J923527

CLAMP

14 mm

5шт.

21

A170241

RADIATOR CAP

15 PSI

1шт.

22

87442013

HOSE,80.00 mm

36 Inch

1шт.

Cut from 414365C2

1шт.

23

241173A1

FITTING

1шт.

24

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

25

28796R1

ORIFICE

1шт.

26

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

3шт.

27

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

28

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

29

217-1008

ADAPTER,3/8" - 18 Male NPTF x 1/2" - 14 Female NPTF

1шт.

30

87442014

HOSE,745.00 mm

12 Inch, (Not Shown)

1шт.

Cut from 414365C2

1шт.

31

277644A1

HOSE

24 Inch, (Not Shown)

1шт.

Cut from 414365C2

1шт.

32

87710611

BRACKET, SUPPORTING

Lower

1шт.

33

87710616

SUPPORT

1шт.

34

87710615

SUPPORT

Upper, Right

2шт.

35

87710612

ISOLATOR

4шт.

36

86625257

WASHER,0.41" ID x 1.25" OD x 0.1" Thk

4шт.

37

87716478

BRACKET

Lower

1шт.

38

87716479

BRACKET

Upper

1шт.

39

87710617

SUPPORT

1шт.

40

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

41

425-106

NUT,3/8"-16, Cl 5

4шт.

42

492-11038

LOCK WASHER,3/8"

14шт.

43

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

6шт.

44

892-11010

LOCK WASHER,M10

3шт.

45

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

46

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

8шт.

47

247780

SERRATED NUT,Flg, USR, 3/8"-16

(Not Shown)

4шт.

48

87441708

NUT

4шт.

49

84134624

SENSOR

Coolant level

1шт.

Выбрано товаров: 53
