Запчасти Case IH C-200 (G-34) - GOVERNOR AND CONNECTIONS

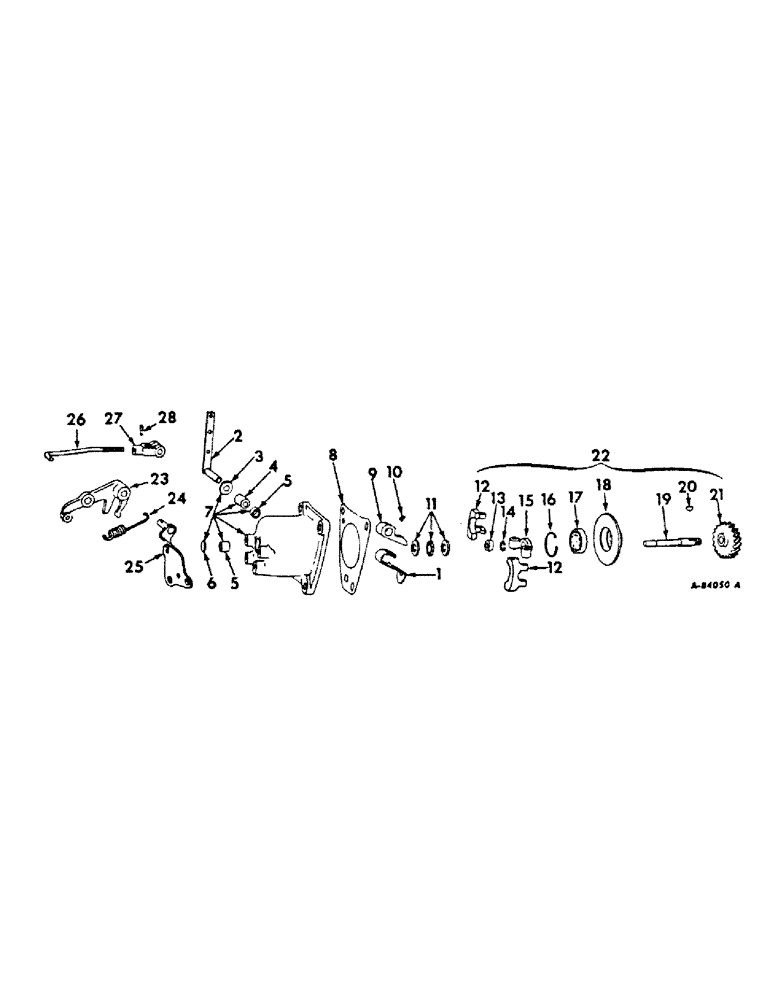

Схема запчастей Case IH C-200 - (G-34) - GOVERNOR AND CONNECTIONS
23
26
7
5
24
20
1
25
6
22
11
10
9
21
4
8
12
17
13
18
5
28
12
27
14
3
16
15
19
2

Артикул

Название

Примечание

Количество

372708R93

GOVERNOR

ASSEMBLY, consists of ref nos 1 thru 22

1шт.

1

374795R1

VALVE SPRING

SPRING, bumper

1шт.

2

367656R12

ROCKSHAFT

LEVER AND ROCKSHAFT ASSEMBLY, governor

1шт.

3

361123R91

OIL SEAL

governor rockshaft oil

1шт.

4

369593R1

BUSHING

governor

1шт.

5

369594R1

BUSHING

governor

2шт.

6

172530

PLUG,Exp, 11/16"

11/16 expansion

1шт.

7

367651R31

HOUSING ASSEMBLY, governor

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex. jam

1шт.

127842

YOKE

SCREW, 1/4-28 x 1-1/2 slt-rd-hd mach

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

367669R1

GASKET

governor housing

1шт.

9

367653R1

FORK

governor thrust

1шт.

10

368938R1

SET SCREW,Hdls Hex Skt, 1/4" - 28 x 5/16", Cup Pt

governor thrust fork set

1шт.

11

393405R91

THRUST BEARING,11.07mm ID x 25.4mm OD x 11.13mm W

governor thrust ball, also order sleeve, 387878R1

1шт.

12

367741R1

WEIGHT

governor

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

2шт.

13

387878R1

SLEEVE

governor thrust, also order bearing, 393405R91

1шт.

14

369477R1

RING

snap

1шт.

15

367726R1

CARRIER

governor weight

1шт.

16

281907C1

SNAP RING,1.438", Int, #143

Ring, Snap, , governor shaft brg 1.438", Int, #143

1шт.

17

ST552

BALL BEARING,12mm ID x 37mm OD x 12mm W

BEARING, governor shaft ball

1шт.

18

3967666R1

RETAINER, governor bearing

1шт.

19

367665R1

SHAFT

governor

1шт.

20

452560

KEY, 1/16 x 3/8 Woodruff no. 211

1шт.

21

367664R1

PINION

GEAR, governor

1шт.

864337R1

NUT, 7/16-20 hex. lock

1шт.

22

368939R93

PINION

GEAR AND WEIGHT ASSEMBLY, governor

1шт.

23

378133R1

LEVER

governor speed control

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex. jam

1шт.

181315

BOLT,Hex, 1/4" - 28 x 1", Gr 5

1шт.

Q3817

WASHER

11/32 x 11/16 x .021

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

24

384588R1

SPRING

governor

1шт.

25

402814R1

BRACKET

ASSY, governor control lever

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

398070R1

ROD

, Serial Range: governor-carburetor

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

27

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-20 adj rod end governor to carburetor rod fork

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

28

137130

PIN

1/16 x 7/16 cot.

1шт.

Выбрано товаров: 44
