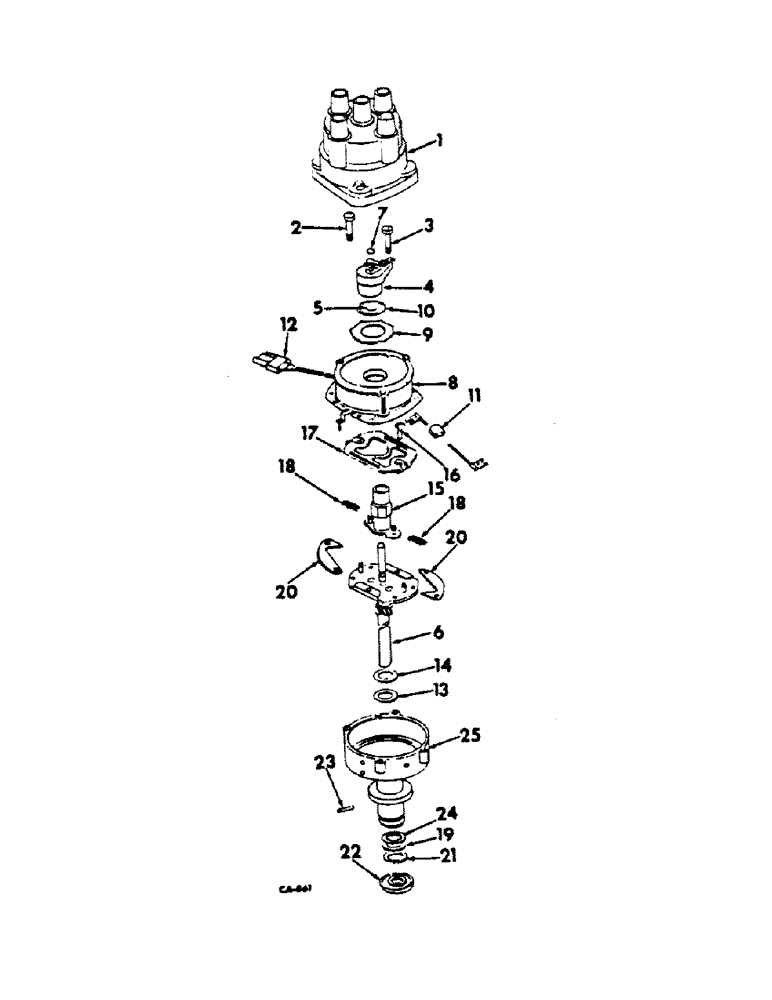

Запчасти Case IH C-200 (G-25) - MAGNETIC PULSE DISTRIBUTOR

1112452

DISTRIBUTOR ASSY, 406334R91

1шт.

1

801064

CAP, distributor

1шт.

2

1957573

SCREW, cap attaching 10-32

1шт.

3

1954571

SCREW, cap attaching 8-32

1шт.

4

1954566

ROTOR

1шт.

5

1963555

WICK, rotor

1шт.

6

800883

PLATE, main shaft and weight

1шт.

7

1957329

BUTTON, nylon, in weight base

2шт.

8

1967741

PLATE ASSY, w/pole piece

1шт.

9

1964945

POLE PIECE, rotor

1шт.

453461

SCREW, pole piece attaching

2шт.

10

9422340

RING, rotor pole piece retainer

1шт.

11

1964573

GROMMET

1шт.

12

2973782

CONNECTOR, ELEC

CONNECTOR

1шт.

13

1946238

WASHER, thrust

1шт.

14

817051

WASHER, space, under cam and shaft

1шт.

15

800885

BUSHING AND AUTOMATIC CAM

1шт.

16

453647

SCREW

W/LOCK WASHER, weight hold down plate attaching

2шт.

17

1954548

PLATE, weight hold down

1шт.

18

1971724

SPRING, weight

2шт.

19

810074

WASHER, .005 shim

1шт.

20

1880902

WEIGHT

2шт.

21

1912129

WASHER, .010 shim

1шт.

22

1950469

SEAL, in housing

1шт.

23

273436

HYD TUBE,5" OD, 7.5" Length

PIN, spring

1шт.

24

811912

WASHER

space

1шт.

25

800568

HOUSING

1шт.
