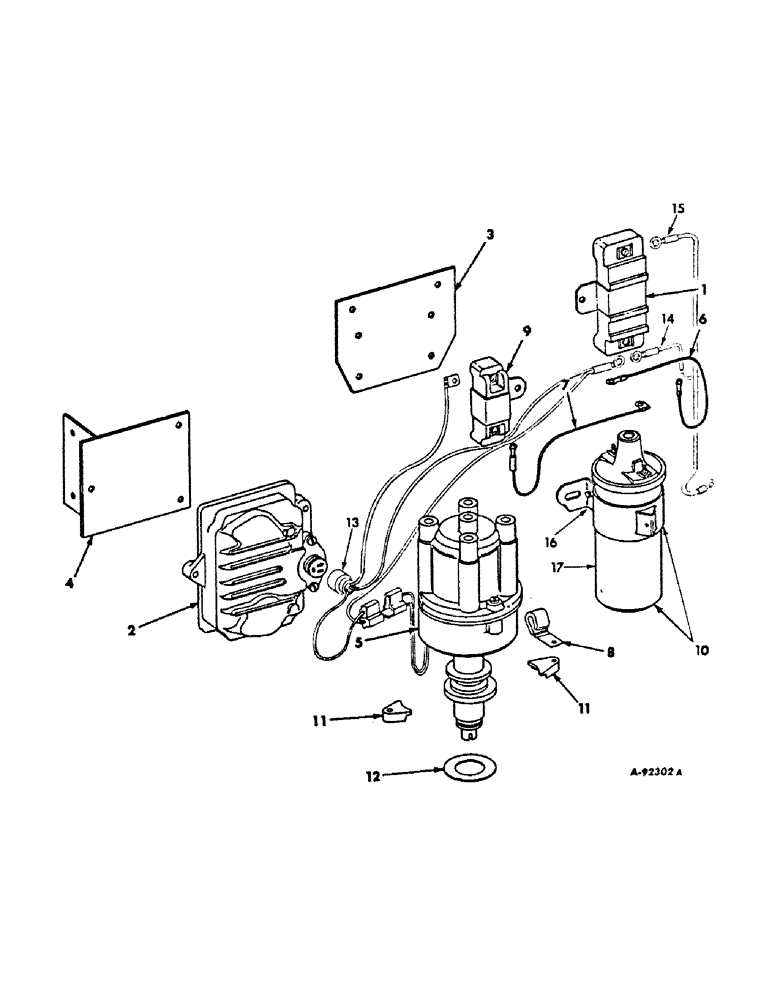

529745R91
PARTS ACCESSORY, magnetic pulse ignition
1шт.
1
1965417
RESISTANCE UNIT, .68 ohm
1шт.
2
1115005
AMPLIFIER, magnetic pulse
1шт.
3
406615R1
BRACKET, coil & resistor mounting
1шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
2шт.
103320
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
SCREW, 5/16-18 x 5/8 C-Z hex-hd cap
4шт.
120376
NUT,5/16"-18, G5
4шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 5/16 C-Z flat plate
2шт.
4
406612R1
BRACKET ASSY, amplifier mounting
1шт.
86505867
BOLT,Hex, 1/4" - 20 x 1", Gr 5
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
5
1112452
DISTRIBUTOR ASSY, magnetic pulse, 406334R91, for components, see list of parts under details of magnetic pulse distributor
1шт.
6
404415R1
CABLE ASSY, Serial Range: coil-ground
1шт.
7
404392R1
CABLE ASSY, Serial Range: coil-resistor
1шт.
8
371036R1
CLIP
distributor lead ground
1шт.
9
1962289
RESISTOR
RESISTANCE UNIT, .43 ohm
1шт.
10
1115419
COIL
-IGNITION, magnetic pulse
1шт.
11
353937R1
CLIP
CLAMP, distributor mounting
2шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
2шт.
103320
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
12
353936R2
GASKET
distributor mounting
1шт.
13
529410R1
CABLE ASSY, magnetic pulse ignition
1шт.
14
529411R1
CABLE ASSY, resistor to solenoid switch
1шт.
15
529412R1
CABLE ASSY, key switch, Serial Range: junction-resistor
1шт.
16
1990326
CLAMP, coil
1шт.
17
1115207
COIL
ignition
1шт.
370535R1
CLIP
cable
1шт.
362121R1
CLIP
magnetic pulse cable
2шт.
363117R1
CLIP
cable harness
1шт.
