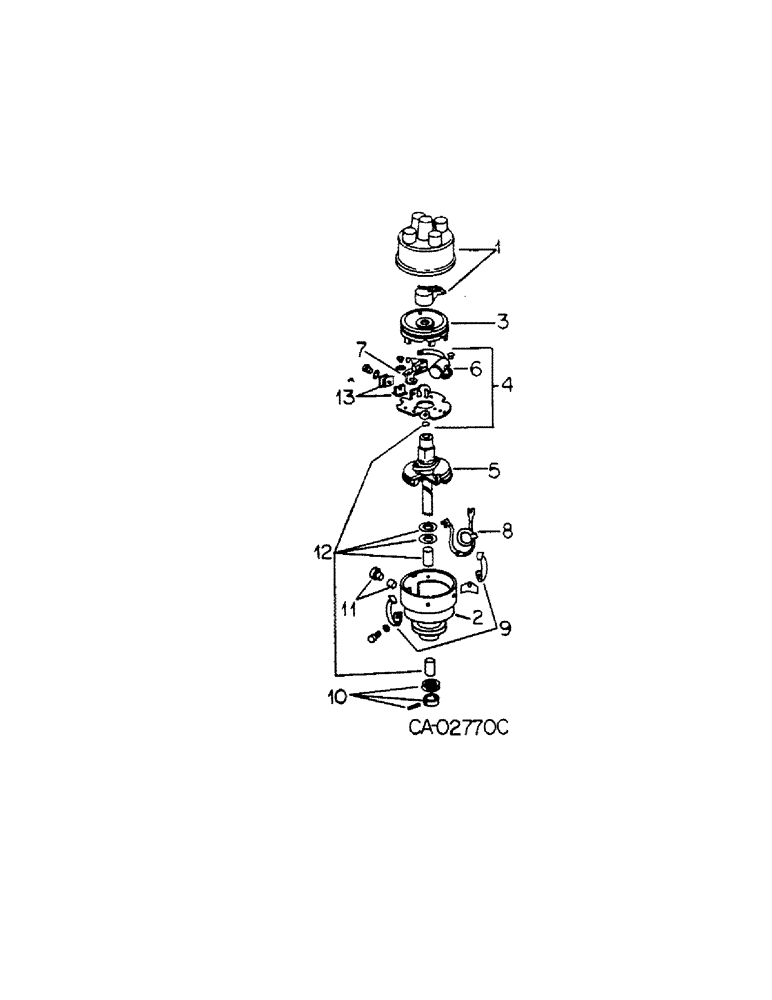

Запчасти Case IH C-200 (G-22) - DISTRIBUTOR

70925C1

CAP

DISTRIBUTOR ASSY

1шт.

1

404967R92

DISTRIBUTOR

PACKAGE, distributor cap and rotor (Replaces 70925C1)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING, not serviced separately order distributor assy

1шт.

3

531449R1

COVER

ASSY, dust

1шт.

4

531453R92

PLATE

ASSY, breaker, consists of ref. nos. 6, 7 and 13

1шт.

5

64854C1

SHAFT

W/WEIGHTS, springs and cam, drive, replaces 531447R1, 531443R1, 70952C1 and 531450R1

1шт.

6

531455R1

PACKAGE

condenser

1шт.

7

531456R1

SET

contact breaker

1шт.

8

531444R1

CABLE

LEAD ASSY, primary

1шт.

9

531446R1

PACKAGE

cap clamp spring and hinge

1шт.

10

531460R91

PACKAGE

shaft collar

1шт.

11

539934R1

PACKAGE

oil plug and wick

1шт.

12

531459R91

BEARING

PACKAGE, shaft bearing

1шт.

13

539933R1

KIT

PACKAGE, clip and insulator

1шт.

398088R91

DRIVE ASSY, distributor and tachometer, ref. no. 1 not included, all machines except 3500A tractors

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/8 C-Z slthds pipe

1шт.
