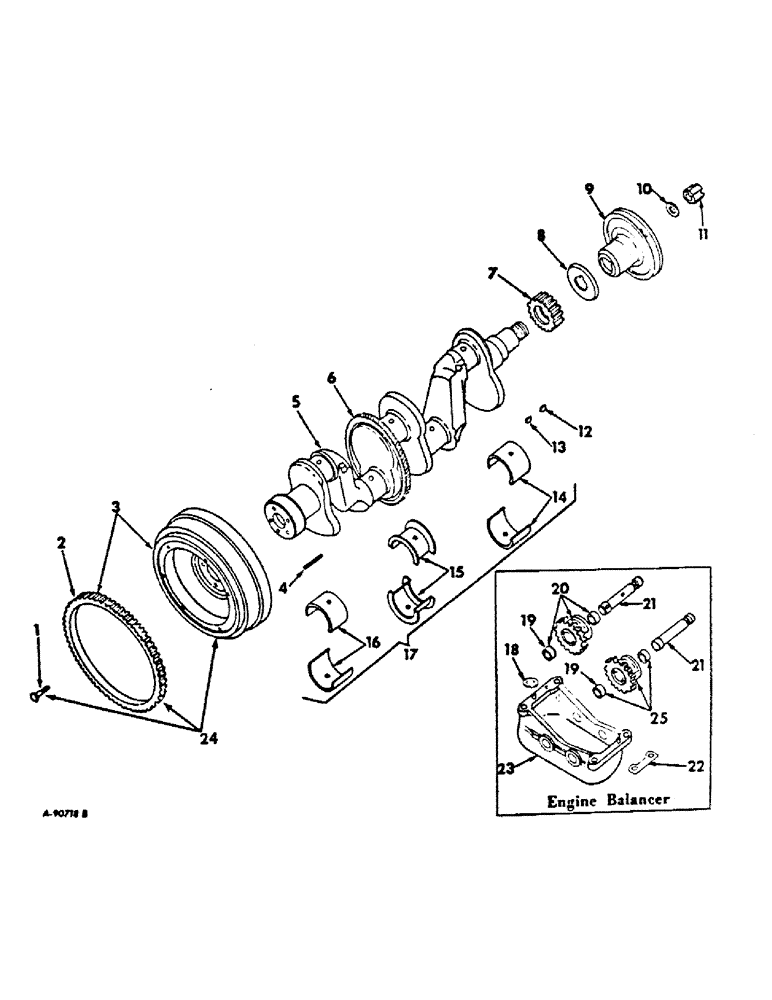

Запчасти Case IH C-200 (G-15) - CRANKSHAFT, FLYWHEEL, AND BEARINGS

1

601558C1

BOLT (SPREADER)

BOLT, 7/16-20 x 3, all machines except 544, 2544, tractors with hydrostatic transmission, 8000 fork lifts and 3500A tractors with engine serial no. 28343 and below used in conjunction w/adapter 405867R2

1шт.

1

601561C1

BOLT, 7/16-20 x 2-3/4, used w/hydrostatic transmission flywheel 396468R21 on Farmall 544 with tractor serial no. 14412 and below and International 544, 2544 tractors with tractor serial no. 15904 and below

1шт.

1

332136R1

BOLT (SPREADER),7/16" - 20 x 2 1/4"

BOLT, flywheel mounting, used w/hydrostatic transmission flywheel 532391R11 on Farmall 544 with tractor serial no. 14413 and above and International 544, 2544 tractors with tractor serial no. 15905 and above

1шт.

1

601669C1

BOLT, 7/16-20 x 2, 3500A tractors with serial no. 28344 and above and used in conjunction with adapter 405866R1

1шт.

2

396421R1

GEAR, RING

GEAR, flywheel ring, 133 teeth, 544, 2544, 3500A tractors and 8000 fork lifts

1шт.

2

405861R1

GEAR

ring, 159T, 574, 674, 2500A, 2500B, 2505B, 2510B and 2514B tractors

1шт.

3

396419R91

FLYWHEEL

W/RING GEAR, 544, 2544 tractors with synchromesh transmission and 8000 fork lifts

1шт.

3

396468R21

FLYWHEEL

W/RING GEAR, 544 and 2544 tractors with hydrostatic transmission, furnish one flywheel assy w/mtg bolts 537135r91 and one drive plate package 532249R91

1шт.

3

532391R11

FLYWHEEL W/RING GEAR, 544 and 2544 tractors with hydrostatic transmission, furnish one flywheel assy w/mtg bolts 537135R91

1шт.

3

405862R11

FLYWHEEL

W/RING GEAR, 574, 674, 2500A, 2500B, 2505B, 2510B, 2514B tractors and 3500A tractors w/serial no. 28343 and below and used in conjunction with adapter 405867R2

1шт.

3

405860R11

FLYWHEEL

W/RING GEAR, 3500A tractors w/serial no. 28344 and above and used in conjunction w/adapter 405866R1

1шт.

4

398047R1

PIN

flywheel to crankshaft dowel

1шт.

5

398043R92

CRANKSHAFT W/BEARINGS, std, order crankshaft 66596C91

1шт.

5

66596C91

CRANKSHAFT W/BEARINGS, std, also furnish 66474C91 balance weight assy and 66475C91 driven balance weight

1шт.

Consists of (4) bearing 367408R11, (1) bearing 367276R91, (1) bearing 332267R91, (1) bearing 367285R91, (1) crankshaft (NSS), (1) gear 66478C1, (1) pin 398047R1

1шт.

6

398046R1

GEAR, crankshaft balancer drive, machines w/engine serial no. 18695 and below order gear 308398R1

1шт.

6

308398R1

GEAR, crankshaft balancer drive, machines w/engine serial no. 18696 and below, used w/crankshaft assy, 398043R91

1шт.

6

531710R1

GEAR, crankshaft balancer drive, machines w/engine serial no. 18696 to 27205, used w/crankshaft assy, 398043R92

1шт.

6

66478C1

GEAR

crankshaft balancer drive, machines w/engine serial no. 27206 and above

1шт.

7

367272R1

PINION

GEAR, crankshaft

1шт.

8

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

9

398048R1

PULLEY

crankshaft

1шт.

10

70109R1

WASHER

starting crank nut

1шт.

11

219755

BACK-UP RING

crankshaft 1-14 hex. jam

1шт.

12

103462

KEY

3/16 x 1 Woodruff 13, pulley

1шт.

13

103462

KEY

3/16 x 1 Woodruff 13, crankshaft gear

1шт.

14

367276R91

BEARING LINER

BEARING ASSY, crankshaft front, 2 halves, std

1шт.

14

367300R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, 2 halves, .002 U/S

1шт.

14

376670R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .010 U/S

1шт.

14

376683R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .020 U/S

1шт.

14

367288R91

BEARING ASSY

ASSY, crankshaft front, 2 halves, .030 U/S

1шт.

15

332267R91

BEARING SET

BEARING ASSY, crankshaft intermediate rear, 2 halves, std

1шт.

15

332273R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .002 U/S

1шт.

15

332276R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .010 U/S

1шт.

15

332279R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .020 U/S

1шт.

15

332270R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .030 U/S

1шт.

16

367285R91

BEARING

ASSY, crankshaft rear, 2 halves, std

1шт.

16

367309R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .002 U/S

1шт.

16

376679R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .010 U/S

1шт.

16

376692R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .020 U/S

1шт.

16

367297R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .030 U/S

1шт.

17

NLS

NO LONGER SERVICED

(No longer available for service)

1шт.

18

398060R1

SHIM

engine balancer housing LH

1шт.

19

310384R1

BEARING

BUSHING, engine balancer weight

4шт.

20

398059R21

WEIGHT

ASSY, engine balancer idler, machines w/engine serial no. 27205 and below

1шт.

20

66474C91

WEIGHT ASSY, engine balancer idler, machines w/engine serial no. 27206 and above

1шт.

21

405855R1

PACKAGE

SHAFT ASSY, engine balancer weight

2шт.

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

2шт.

22

398061R1

SHIM

engine balancer housing RH

1шт.

23

398054R1

HOUSING ASSY, engine balancer

1шт.

398056R1

BOLT

engine balancer housing oil

1шт.

398057R1

BOLT, engine balancer housing

1шт.

398058R1

BOLT

engine balancer housing

1шт.

24

537135R91

PACKAGE, flywheel assy w/mtg bolts, 544 and 2544 with hydrostatic transmission, consists of (1) flywheel (NSS), (1) gear 396421R1, (6) bolt 332136R1

1шт.

25

398059R21

WEIGHT

ASSY, engine balancer driven, machines w/engine serial no. 27205 and below

1шт.

25

66475C91

WEIGHT ASSY, engine balancer driven, machines w/engine serial no. 27206 and above

1шт.

532249R91

CLUTCH ASSEMBLY

PACKAGE, drive plate assy, 544 and 2544 tractors with hydrostatic transmission, consists of (1) plate (NSS), (6) washer 615890C1, (6) screw 324711R1, (1) instructions (NSS), (1) lubricant (NSS)

1шт.
