(G-14[A]) - CRANKCASE OIL PAN, 574, 674, 2500A, 2500B, 2505B, 2510B AND 2514B TRACTORS

Запчасти Case IH C-200 (G-14[A]) - CRANKCASE OIL PAN, 574, 674, 2500A, 2500B, 2505B, 2510B AND 2514B TRACTORS

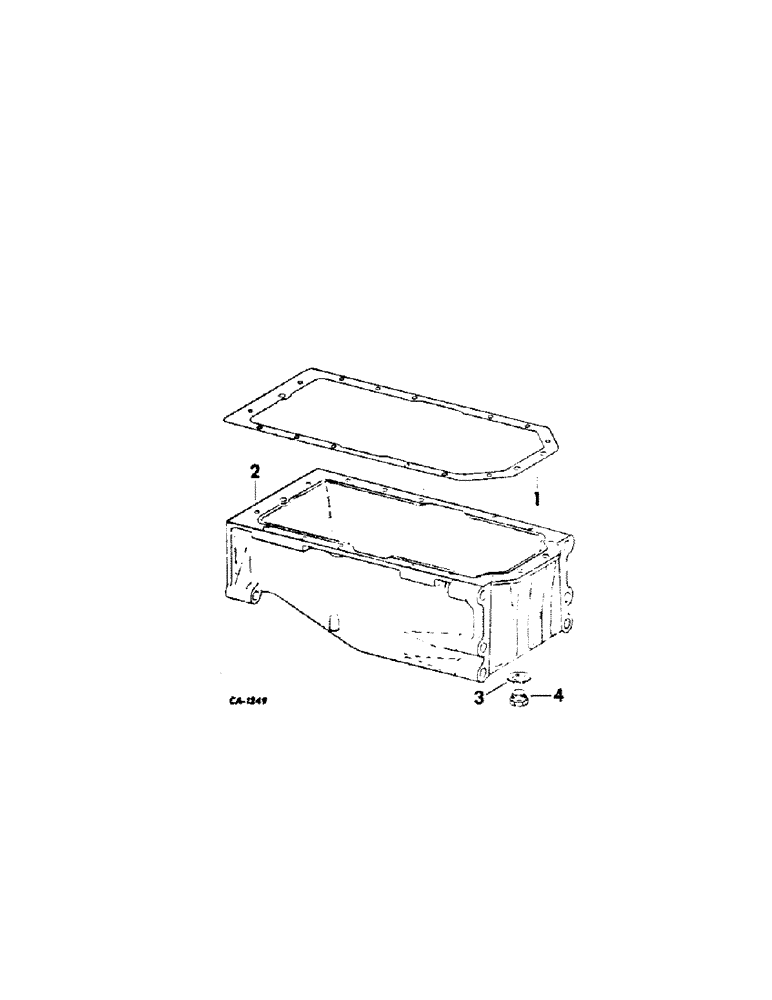

Схема запчастей Case IH C-200 - (G-14[A]) - CRANKCASE OIL PAN, 574, 674, 2500A, 2500B, 2505B, 2510B AND 2514B TRACTORS
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

405858R1

GASKET

oil pan

1шт.

2

405857R1

PAN

crankcase oil

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 hex-hd cap

9шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

17шт.

3

3405H

GASKET

drain plug

1шт.

4

445096

PLUG

7/8-18 hex-hd outside

1шт.

Выбрано товаров: 7
