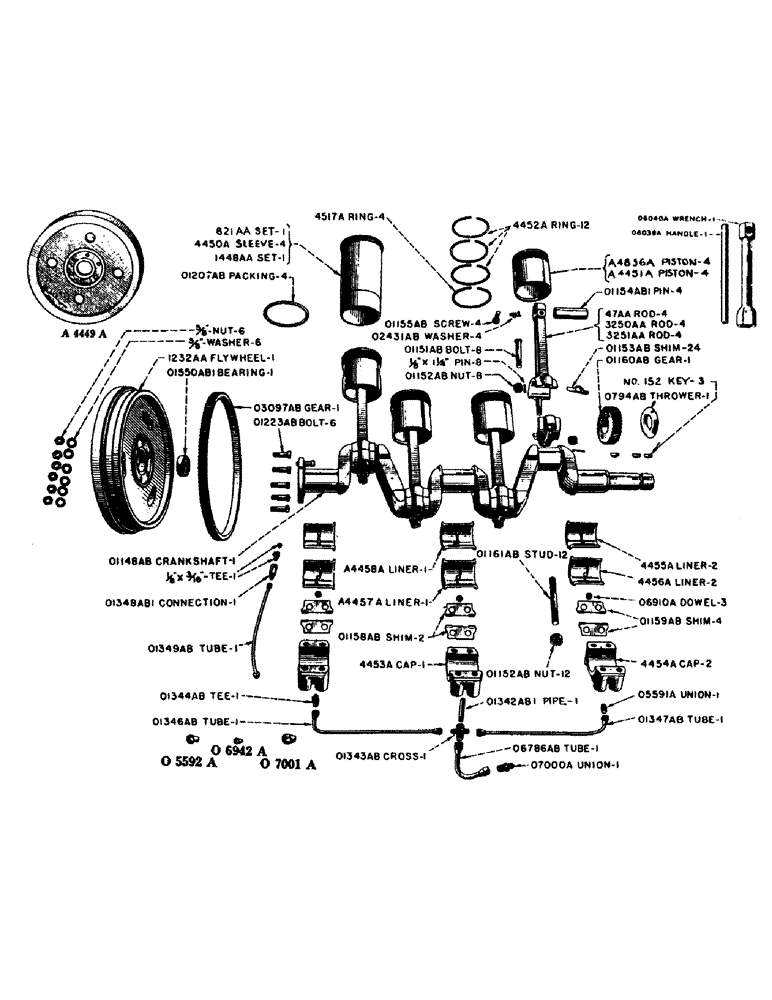

Запчасти Case IH LE (12) - PISTONS, CONNECTING RODS AND CRANKSHAFT

PISTONS AND CONNECTING RODS

1шт.

4450A

X

SLEEVE, cylinder (YR. 1929)

4шт.

4451A

PISTON, low cost fuel. Use A4451A

1шт.

A4451A

PISTON, low cost fuel. See A4836A (YR. 1929)

4шт.

4452A

RING, piston, compression. Used in new tractors and on new piston and sleeve sets. See 4517A and 3723AA (YR. 1929)

12шт.

4517A

RING, piston, with vents. See 4452A (YR. 1929)

4шт.

4836A

PISTON, gasoline. Use A4836A

1шт.

A4836A

PISTON, gasoline. See A4451A (YR. 1929)

4шт.

O6039A

HANDLE, for O6040A socket wrench (YR. 1929)

1шт.

O6040A

WRENCH, socket, for connecting rod (YR. 1929)

1шт.

O1150AB

ROD, connecting. Use 47AA. See 3250AA and 3251AA

1шт.

O1151AB

BOLT, connecting rod (YR. 1929)

8шт.

PIN, 1/8" x 1-1/4" cotter

8шт.

O1152AB

NUT, connecting rod bolt and main bearing stud (YR. 1929)

8шт.

O1153AB

X

SHIM, connecting rod (YR. 1929)

24шт.

O1154AB1

PIN, piston (YR. 1929)

4шт.

O1155AB

SCREW, piston pin clamp (YR. 1929)

4шт.

O1207AB

X

PACKING, cylinder sleeve (YR. 1929)

4шт.

O2431AB

WASHER, lock, piston pin clamp screw (YR. 1929)

4шт.

47AA

ROD, connecting, complete with bolts, nuts and shims. See 3250AA and 3251AA. (YR. 1929) When connecting rods require rebabbiting, they may be sent to the nearest Case branch in exchange for a rebabbited rod, providing old rod is in otherwise good conditio

4шт.

1448AA set of sleeves and pistons can be used with low cost fuel manifold at altitudes below 6000 feet and above. Must not be used at altitude below 6000 feet, with low cost fuel manifold.

1шт.

394AA

PULLER, cylinder sleeve, with O2661AB plate (YR. 1929)

1шт.

821AA

SET OF (4) CYLINDER SLEEVES WITH PACKING, A4451A pistons, with rings and pins, fitted for cylinder. For low cost fuel equipment. See 1448AA. (YR. 1929)

1шт.

1448AA

SET OF (4) CYLINDER SLEEVES WITH PACKING, A4836A pistons, with rings and pins, fitted for cylinder. For gasoline equipment. See 821AA (YR. 1929)

1шт.

3250AA

ROD, connecting, complete with bolts, nuts and shims, .010" undersize. (YR. 1929) When connecting rods require rebabbiting, they may be sent to the nearest Case branch in exchange for a rebabbited rod, providing old rod is in otherwise good conditio

4шт.

1448AA set of sleeves and pistons can be used with low cost fuel manifold at altitudes below 6000 feet and above. Must not be used at altitude below 6000 feet, with low cost fuel manifold.

1шт.

3251AA

ROD, connecting, complete with bolts, nuts and shims, .020" undersize. (YR. 1929) When connecting rods require rebabbiting, they may be sent to the nearest Case branch in exchange for a rebabbited rod, providing old rod is in otherwise good conditio

4шт.

1448AA set of sleeves and pistons can be used with low cost fuel manifold at altitudes below 6000 feet and above. Must not be used at altitude below 6000 feet, with low cost fuel manifold.

1шт.

REPLACEMENT PISTON RINGS

1шт.

4517A

RING, piston oil

4шт.

6030A

RING, piston taper faced compression

8шт.

6031A

RING, piston continuous groove scraper

4шт.

3723AA

PISTON RING SET

RINGS, set of (16) replacement piston consists of 4 - 4517A, 8 - 6030A and 4 - 60341A rings

1шт.

CRANKSHAFT

1шт.

4449A

FLYWHEEL. Use A4449A

1шт.

A4449A

FLYWHEEL. Regular. See 4860A (YR. 29-36)

1шт.

4453A

CAP, crankshaft bearing, center (YR. 1929)

1шт.

4454A

CAP, crankshaft bearing, front or rear (YR. 1929)

2шт.

4455A

LINER, crankshaft bearing, front or rear, upper. Not fitted (YR. 1929)

2шт.

4456A

LINER, crankshaft bearing, front or rear, lower. Not fitted (YR. 1929)

2шт.

A4457A

LINER, crankshaft bearing, center, lower. Not fitted (YR. 1929)

1шт.

A4458A

LINER, crankshaft bearing, center, upper. Not fitted (YR. 1929)

1шт.

4860A

FLYWHEEL. Used with starting attachment. See A4449A (YR. 1936)

1шт.

6020A

LINER, crankshaft bearing, front or rear, upper. .090" undersize. Not fitted. See 4455A (YR. 1929)

2шт.

6021A

LINER, crankshaft bearing, front or rear, lower. .090" undersize. Not fitted. See 4456A (YR. 1929)

2шт.

A6022A

LINER, crankshaft bearing, center, upper. .090" undersize. Not fitted. See A4458A (YR. 1929)

1шт.

A6023A

LINER, crankshaft bearing, center, lower. .090" undersize. Not fitted. See A4457A (YR. 1929)

1шт.

O6910A

DOWEL, crankshaft bearing (YR. 1929)

3шт.

O794AB

THROWER, oil, crankshaft, front (YR. 1929)

1шт.

O1148AB

CRANKSHAFT (YR. 1929)

1шт.

KEY, no. 152 Woodruff

3шт.

O1152AB

NUT, for O1161AB bearing cap stud (YR. 1929)

12шт.

O1158AB

SHIM, crankshaft center bearing (YR. 1929)

2шт.

O1159AB

SHIM, crankshaft front or rear bearing (YR. 1929)

4шт.

O1160AB

GEAR, crankshaft (YR. 1929)

1шт.

O1161AB

STUD, crankshaft bearing cap. Use O8277AB (YR. 1929)

12шт.

O1223AB

BOLT, flywheel (YR. 1929)

6шт.

NUT, 5/8" hexagon, jam, N.F. thread

6шт.

WASHER, 5/8" standard lock

6шт.

O1550AB

BEARING, pilot, clutch shaft, New Departure no. 1206. Use O1550AB1

1шт.

O1550AB1

BEARING, pilot, clutch shaft, New Departure no. 7206. See O5083AB (YR. 29-38)

1шт.

O3097AB

X

GEAR, flywheel ring. Used with starting attachment. See 1232AA (YR. 1936)

1шт.

O5083AB

BEARING, pilot, clutch shaft, Timken no. 5506. See O1550AB1 (YR. 1939)

1шт.

O8277AB

SCREW, crankshaft bearing cap (YR. 1929)

12шт.

1232AA

FLYWHEEL, with ring gear. Used with starting attachment. See A4449A (YR. 1936)

1шт.

O5591A

UNION, 3/8" pipe thread x 1/4" tube size, flared tube, for O1347AB tube (YR. 1929)

1шт.

O5592A

NUT, 3/8" flared tube, for O1346AB nad O1347AB tubes (YR. 1929)

4шт.

O6942A

NUT, 1/4" flared tube, for O1349AB tube (YR. 1929)

2шт.

O7000A

UNION, 3/8" pipe thread x 1/2" tube size, flared tube, for O6786AB tube (YR. 1929)

1шт.

O7001A

NUT, 1/2" flared tube, for O1345AB tube (YR. 1929)

1шт.

O1342AB1

PIPE, crankshaft center bearing cap oil (YR. 1929)

1шт.

O1343AB

CROSS, crankshaft center bearing cap (YR. 1929)

1шт.

O1344AB

TEE, crankshaft rear bearing cap (YR. 1929)

1шт.

O1345AB

X

TUBE, oil pump. Use O6786AB

1шт.

O1346AB

TUBE, crankshaft rear, oil (YR. 1929)

1шт.

O1347AB

TUBE, crankshaft front, oil (YR. 1929)

1шт.

O1348AB

CONNECTION, oil gauge tube, LE300401 - (YR. 29-30)

1шт.

O1348AB1

CONNECTION, oil gauge tube, LE300400 + (YR. 1931)

1шт.

TEE, 1/8" pipe thread x 3/16" tube size, Dole A14 service

1шт.

O1349AB

TUBE, inner, to oil gauge (YR. 1929)

1шт.

O6786AB

X

TUBE, oil pump to distributor tee (YR. 1929)

1шт.
