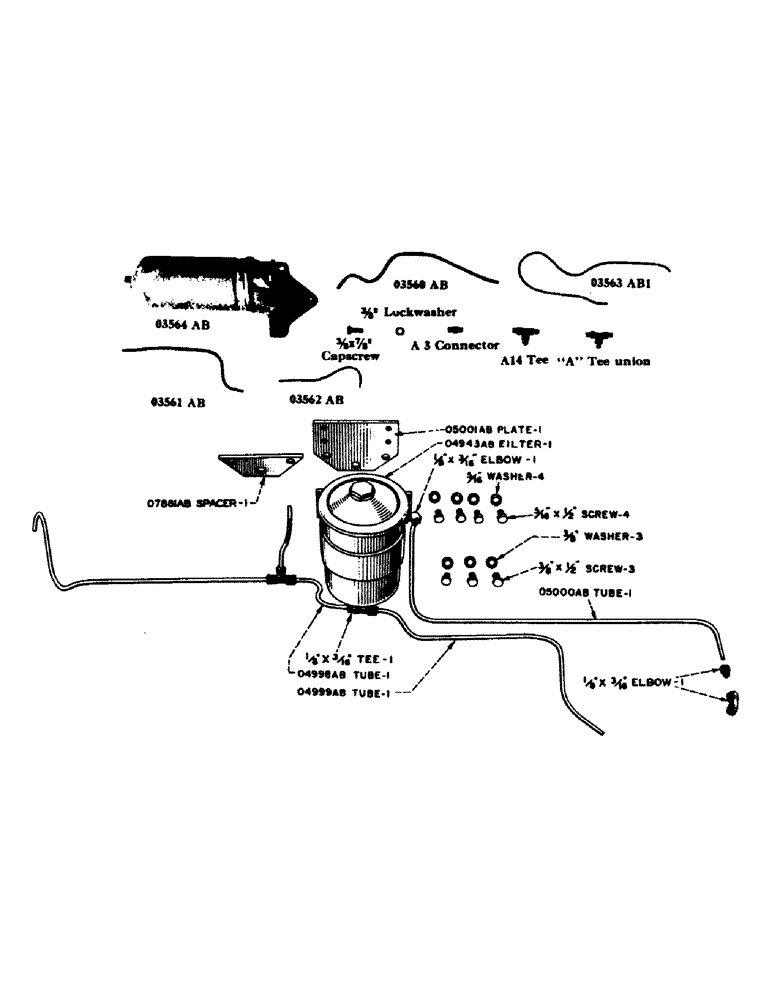

Запчасти Case IH LE (10) - OIL FILTER, PRIOR TO ENGINE NUMBER 4300000

O3560AB

TUBE, gauge connection to oil filter (YR. 34-38)

1шт.

O3561AB

TUBE, oil filter to tee (YR. 34-38)

1шт.

O3562AB

TUBE, tee to cylinder head (YR. 34-38)

1шт.

O3563AB1

TUBE, tee to governor (YR. 34-38)

1шт.

O3564AB

FILTER, oil. Purchased from Purolator Products, Inc., Newark, N.J. Their model no. B878M, assy no. 18875 (YR. 34-38)

1шт.

SCREW, 3/8" x 7/8" hexagon head cap, N.C. thread

3шт.

WASHER, 3/8" standard lock

3шт.

PLUG, 1/8" pipe, square head

2шт.

TEE, 1/8" pipe thread x 3/16" tube size, service, Dole A14

1шт.

CONNECTOR, 1/8" pipe thread x 1/4" tube size, Dole A3

2шт.

UNION, type "A" tee, with compression screw at one end for 1/4" tube and compression screw for 3/16" tube at opposite end

1шт.

O4943AB

X

FILTER, oil. Purchased from Purolator Products Corsp., Newark, N.J. Their model no. 25559 (YR. 1939)

1шт.

SCREW, 5/16" x 1/2" hexagon head cap, N.C. thread

4шт.

WASHER, 5/16' standard lock

4шт.

ELBOW, 1/8" pipe thread x 3/16" tube size, Dole A7 male

2шт.

TEE, 1/8" pipe thread x 3/16" tube size, Dole all male

1шт.

O4998AB

TUBE, tee to oil filter (YR. 1939)

1шт.

O4999AB

TUBE, oil filter to governor bearing carrier (YR. 1939)

1шт.

O5000AB

TUBE, oil filter to governor housing cover (YR. 1939)

1шт.

O5001AB

PLATE, oil filter mounting (YR. 1939)

1шт.

SCREW, 3/8" x 1/2" hexagon head cap, N.C. thread

3шт.

WASHER, 3/8" standard lock

3шт.

O7861AB

SPACER, oil filter mounting plate (YR. 1939)

1шт.
