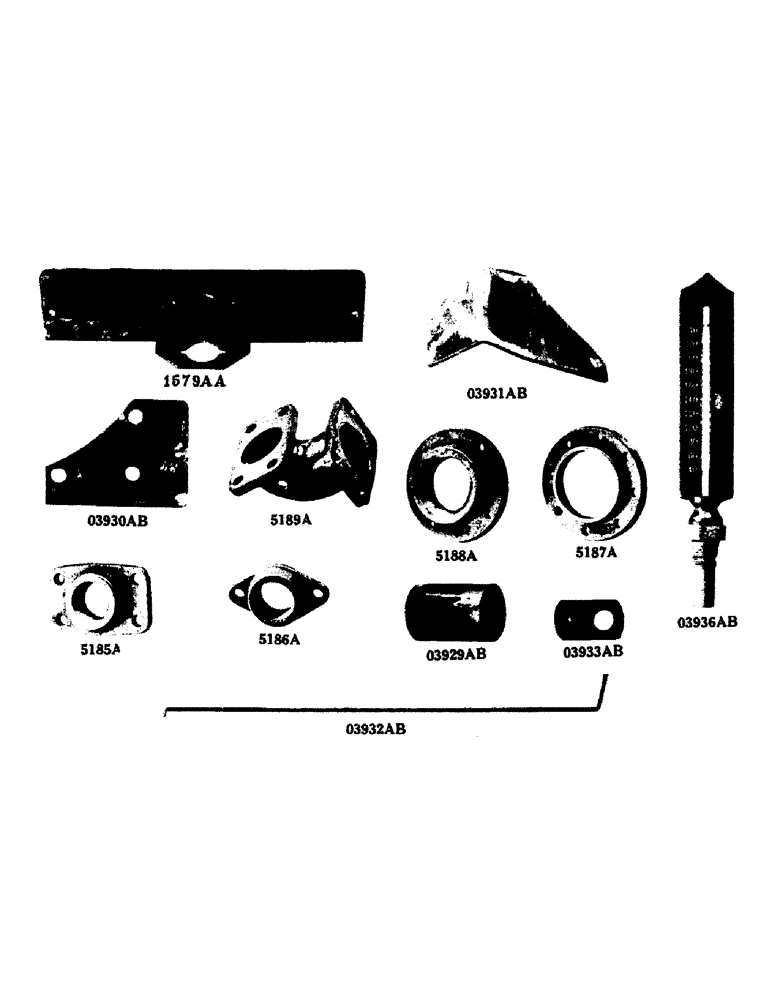

Запчасти Case IH LE (78) - RICE FIELD PUMPING UNIT NOT USED ON STANDARD ENGINE

5185A

FLANGE, upper water elbow. Use 5267A

1шт.

5186A

FLANGE, lower water elbow (YR. 1935)

1шт.

BOLT, 1/2" x 1-1/4" machine, with hexagon nut

2шт.

5187A

FLANGE, exhaust elbow (YR. 1935)

1шт.

5188A

FLANGE, exhaust pipe (YR. 1935)

1шт.

BOLT, 3/8" x 1-1/4" machine, with hexagon nut

4шт.

WASHER, 3/8" standard lock

4шт.

5189A

ELBOW, radiator inlet (YR. 1935)

1шт.

5267A

FLANGE, upper water elbow (For thermostat) (YR. 1935)

1шт.

BOLT, 1/2" x 1-1/2" machine, with hexagon nut

4шт.

O3929AB

HOSE, radiator outlet elbow (YR. 1935)

1шт.

CLAMP, no. 16 hose

2шт.

O3930AB

SUPPORT, low oil pressure cut-out (YR. 1935)

1шт.

BOLT, 5/8" x 2-1/4" machine, with hexagon nut

1шт.

O3931AB

SUPPORT, throttle lever (YR. 1935)

1шт.

BOLT, 5/8" x 2-1/4" machine, with hexagon nut

2шт.

O3932AB

ROD, choke (YR. 1935)

1шт.

O3933AB

SUPPORT, choke rod (YR. 1935)

1шт.

O3936AB

THERMOMETER. Purchased from Palmer Co., Cincinnati, Ohio. Their no. 1701 straight type (YR. 1935)

1шт.

1579AA

PLATE, starting crank, with bracket (YR. 1937)

1шт.

BOLT, 1/2" x 1-3/4" machine, with hexagon nut

2шт.
