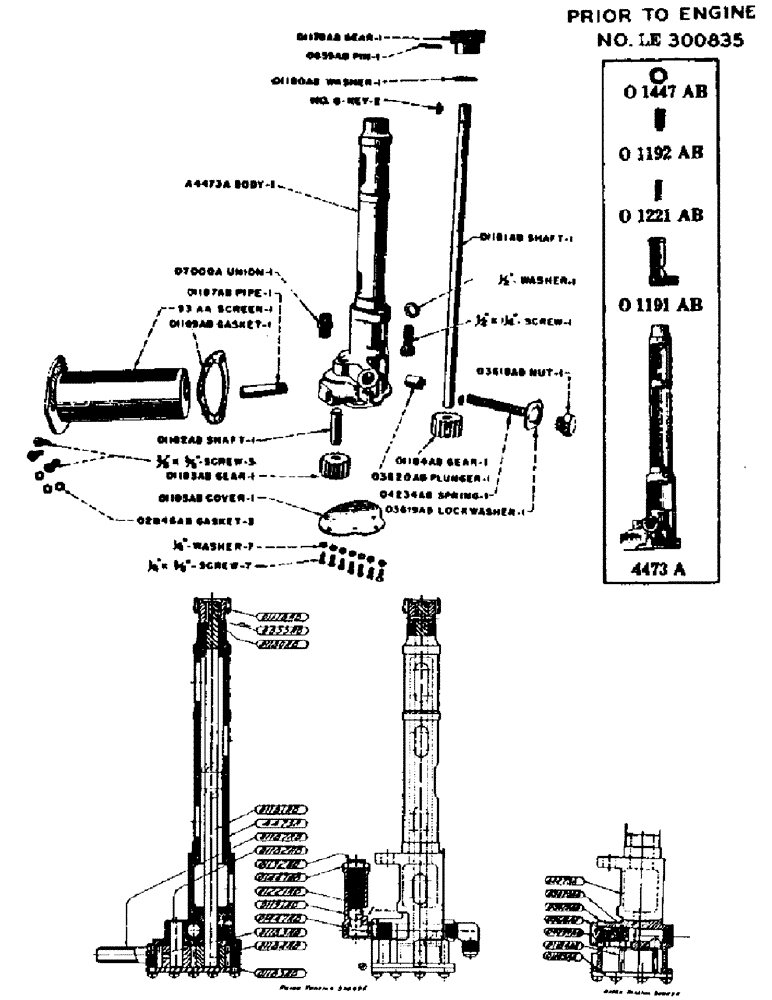

Запчасти Case IH LE (09) - OIL PUMP ASSEMBLY

4473A

BODY, oil pump. LE300835 -. For repairs furnish 1-A4473A body, 1-O4234AB spring, 1-O3618AB nut, 1-O3619AB lockwasher and 1-O3620AB plunger (YR. 29-35)

1шт.

SCREW, 1/2" x 1-1/4" hex. hd. cap, N.C. thread

1шт.

WASHER, 1/2" std. lock

1шт.

PIN, 1/8" x 1-1/2" cotter

1шт.

ELBOW, 1/2" flared tube, 3/8" pipe thread x 3/4" N.F. thread

1шт.

A4473A

BODY, oil pump, LE300834 + (YR. 1935)

1шт.

SCREW, 1/2" x 1-1/4" hex. hd. cap, N.C. thread

1шт.

WASHER, 1/2" standard lock

1шт.

ELBOW, 1/2" flared tube x 3/8" pipe thread x 3/4" N.F. thread

1шт.

4474A

X

FLANGE, oil pump screen. Use 93AA

1шт.

4475A

X

HEAD, oil pump screen. Use 93AA

1шт.

5846A

BODY, oil relief valve (YR. 1929)

1шт.

O7000A

UNION, 3/8" pipe thread x 1/2" tube size, flared tube, for O6786AB tube (YR. 1929)

1шт.

O855AB

PIN, oil pump shaft gear (YR. 1929)

1шт.

O1178AB

GEAR, oil pump drive shaft (YR. 1929)

1шт.

KEY, no. 6 Woodruff

1шт.

O1180AB

WASHER, thrust, oil pump (YR. 1929)

1шт.

O1181AB

SHAFT, drive, oil pump (YR. 1929)

1шт.

KEY, no. 6 Woodruff

2шт.

O1182AB

SHAFT, stud, oil pump (YR. 1929)

1шт.

O1183AB

X

GEAR, oil pump, without keyway (YR. 1929)

1шт.

O1184AB

GEAR, oil pump, with keyway (YR. 1929)

1шт.

KEY, no. 6 Woodruff

1шт.

O1185AB

COVER, oil pump body (YR. 1929)

1шт.

SCREW, 1/4" x 5/8" round head machine, N.C. thread

7шт.

WASHER, 1/4" standard lock

7шт.

O1187AB

PIPE, inlet, oil pump (3/8" x 2-1/2" long) (YR. 1929)

1шт.

O1189AB

X

GASKET, oil pump screen (YR. 1929)

1шт.

O1191AB

BODY, oil relief valve. Use 5846A

1шт.

O1192AB

SCREW, adjusting, oil relief valve, LE300835 - (YR. 29-35)

1шт.

O1221AB

SPRING, oil relief valve, LE300835 -. See O4234AB (YR. 29-35)

1шт.

O1447AB

LOCKNUT, oil relief valve adjusting screw, LE300835 - See O3618AB (YR. 29-35)

1шт.

O2846AB

X

GASKET, oil screen cap screw (YR. 1930)

3шт.

O3618AB

NUT, relief, oil pump, LE300834 +. See O1447AB (YR. 1935)

1шт.

O3619AB

LOCKWASHER, oil pump relief nut, LE300834 + (YR. 1935)

1шт.

O3620AB

PLUNGER, relief, oil pump, LE300834 + (YR. 1935)

1шт.

O4234AB

X

SPRING, oil pump relief plunger. LE300834 +. See O1221AB (YR. 1935)

1шт.

58AA

PUMP, oil, with screen. Use A58AA

1шт.

A58AA

PUMP, oil with screen (YR. 1929)

1шт.

93AA

X

SCREEN, oil pump (YR. 1929)

1шт.

SCREW, 3/8" x 5/8" hexagon head cap, N.C. thread

3шт.
