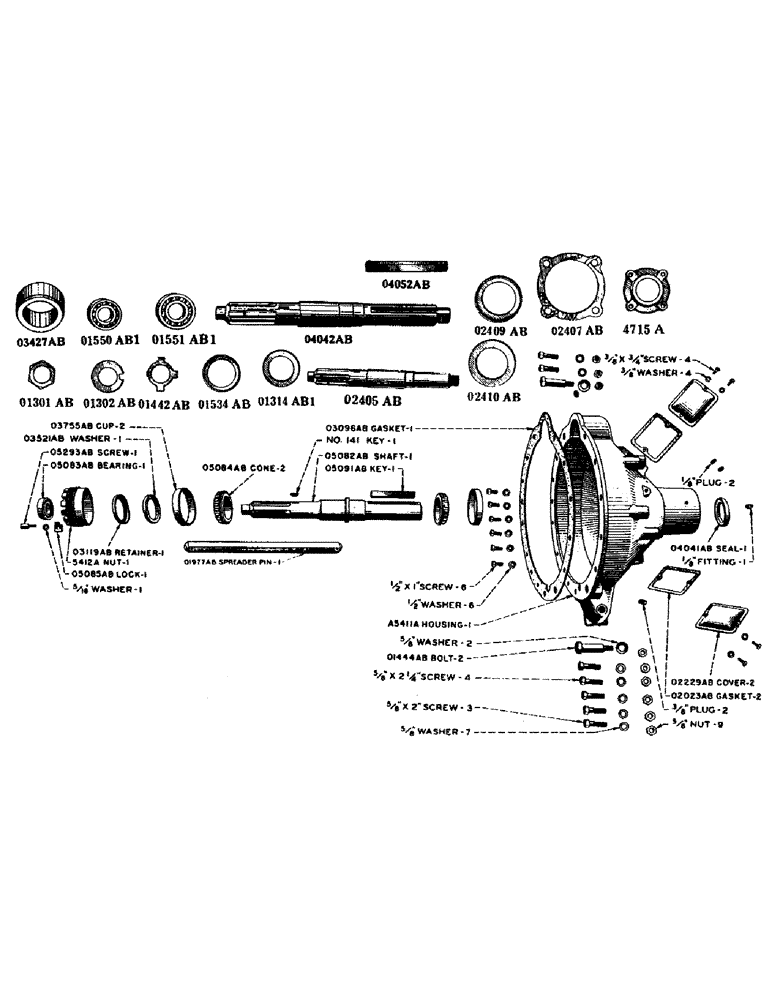

Запчасти Case IH LE (72) - CLUTCH SHAFT AND HOUSING

4713A

HOUSING, clutch (YR. 29-34)

1шт.

BOLT, 5/8" x 2" machine, with hexagon nut

8шт.

BOLT, 5/8" x 4-1/2" machine, with hexagon nut

2шт.

PLUG, 3/8" square head pipe

1шт.

A4713A

HOUSING, clutch. See 5141A and A5411A (YR. 35-38)

1шт.

BOLT, 5/8" x 2" machine, with hexagon nut

8шт.

BOLT, 5/8" x 4-1/2" machine, with hexagon nut

2шт.

PLUG, 1/8" square head pipe

1шт.

PLUG, 3/8" square head pipe

2шт.

4715A

FLANGE, for O4042AB clutch shaft (YR. 29-38)

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

4шт.

WASHER, 1/2" standard lock

4шт.

5141A

HOUSING, clutch. For engines with provision for starter. See A4713A and A5411A (YR. 32-38)

1шт.

BOLT, 5/8" x 2" machine, with hexagon nut

8шт.

BOLT, 5/8" x 4-1/2" machine, with hexagon nut

2шт.

PLUG, 1/8" square head pipe

1шт.

PLUG, 3/8" square head pipe

1шт.

5411A

HOUSING, clutch. Use A5411A

1шт.

A5411A

X

HOUSING, clutch. See A4713A and 5141A (YR. 1939)

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

6шт.

SCREW, 5/8" x 2" hexagon head cap, N.F. thread

3шт.

SCREW, 5/8" x 2-1/4" hexagon head cap, N.F. thread

4шт.

NUT, 5/8" hexagon, light, N.F. thread

7шт.

WASHER, 1/2" standard lock

6шт.

WASHER, 5/8" standard lock

7шт.

PLUG, 1/8" square head pipe

2шт.

PLUG, 3/8" square head pipe

2шт.

5412A

NUT, lock, clutch shaft bearing. See O1301AB (YR. 1939)

1шт.

O1301AB

NUT, clutch shaft. See 5412A (YR. 29-38)

1шт.

O1302AB

WASHER, clutch shaft (YR. 29-38)

1шт.

O1314AB1

WASHER, felt, clutch shaft bearing. See O3521AB and O4041AB (YR. 29-38)

1шт.

O1404AB

GASKET, engine to clutch housing. Prior to Engine no. 4206422. See O3096AB (YR. 29-38)

1шт.

O1442AB

WASHER, clutch shaft lock. See O5085AB (YR. 29-38)

1шт.

O1444AB

BOLT, clutch housing flange (YR. 1929)

2шт.

NUT, 5/8" hexagon, light, N.F. thread

2шт.

WASHER, 5/8" standard plain

2шт.

01534AB

RETAINER, clutch shaft felt. See O3119AB (YR. 29-38)

1шт.

O1550AB

BEARING - pilot, clutch shaft. New Departure no. 1206. Use O1550AB1

1шт.

O1550AB1

BEARING, pilot, clutch shaft. New Departure No. 7206. See O5083AB (YR. 29-38)

1шт.

O1551AB1

BEARING, clutch shaft, New Departure no. 1310. See O3755AB and O5084AB (YR. 29-38)

1шт.

O1977AB

PIN, spreader, for spreading engine and clutch housing. See 61AA (YR. 1929)

2шт.

PIN, 1/4" x 1-1/2" cotter

8шт.

O2023AB

GASKET, clutch hand hole cover (YR. 1929)

2шт.

O2214AB

THIMBLE, for pressing on O1314AB1 felt washer (YR. 29-38)

1шт.

O2229AB

COVER, clutch hand hole (YR. 1929)

2шт.

SCREW, 3/8" x 3/4" hexagon head cap, N.C. thread

4шт.

WASHER, 3/8" standard lock

4шт.

O2405AB

SHAFT, clutch. Regular (18-1/8" long) See O4042AB and O5082AB (YR. 29-36)

1шт.

KEY, no. TX Woodruff

1шт.

KEY, no. 141 Woodruff

1шт.

FITTING, 1/8" straight lubricating, Lincoln no. 5000

1шт.

O2407AB

GASKET, clutch shaft flange (YR. 29-38)

1шт.

O2409AB

RETAINER, clutch shaft felt, outer. See O3119AB (YR. 29-38)

1шт.

O2410AB

WASHER, felt, clutch shaft, outer. See O3521AB and O4041AB (YR. 29-38)

1шт.

O3096AB

X

GASKET, engine to clutch housing. Engine no. 4206422 and after. See O1404AB (YR. 1939)

1шт.

O3119AB

RETAINER, clutch shaft felt. See O1534AB and O2409AB (YR. 1939)

1шт.

O3427AB

SPACER, clutch shaft, for belt pulley (YR. 29-38)

1шт.

O3521AB

WASHER, felt, clutch shaft. See O1314AB1 and O2410AB (YR. 1939)

1шт.

O3755AB

X

CUP, clutch shaft outer bearing, Timken no. 394A. See O1551AB1 (YR. 1939)

2шт.

O4041AB

X

SEAL, oil, clutch shaft. See O1314AB1 and O2410AB (YR. 1939)

1шт.

O4042AB

SHAFT, clutch (20-1/4" long) Regular for 1937 and 1938 season, was special prior to 1937. See O2405AB and O5082AB (YR. 34-38)

1шт.

O4052AB

KEY, belt pulley, for O4042AB shaft. See O5091AB (YR. 34-38)

1шт.

O5082AB

SHAFT, clutch (20-3/8" long) Regular. See O2405AB and O4042AB (YR. 1939)

1шт.

KEY, no. 141 Woodruff

1шт.

FITTING, 1/8" straight lubricating, Lincoln no. 5000

1шт.

O5083AB

BEARING, pilot, clutch shaft, Timken no. 5506. See O1550AB1 (YR. 1939)

1шт.

O5084AB

X

CONE, clutch shaft outer bearing, Timken No. 395. See O1551AB1 (YR. 1939)

2шт.

O5085AB

LOCK, nut, clutch shaft. See O1422AB (YR. 1939)

1шт.

WASHER, 5/16" standard lock

1шт.

O5091AB

KEY, belt pulley, for O5082AB shaft. See O4052AB (YR. 1939)

1шт.

O5293AB

SCREW, cap, clutch shaft nut lock (1/2" x 1-1/2" hexagon head). Use O5293AB1

1шт.

O5293AB1

SCREW, cap, clutch shaft nut lock (1/2" x 2-1/4" hexagon head) (YR. 1939)

1шт.

WASHER, 5/16" standard lock

1шт.

61AA

PINS, set of (2) for spreading engine and clutch housing (YR. 1929)

1шт.
