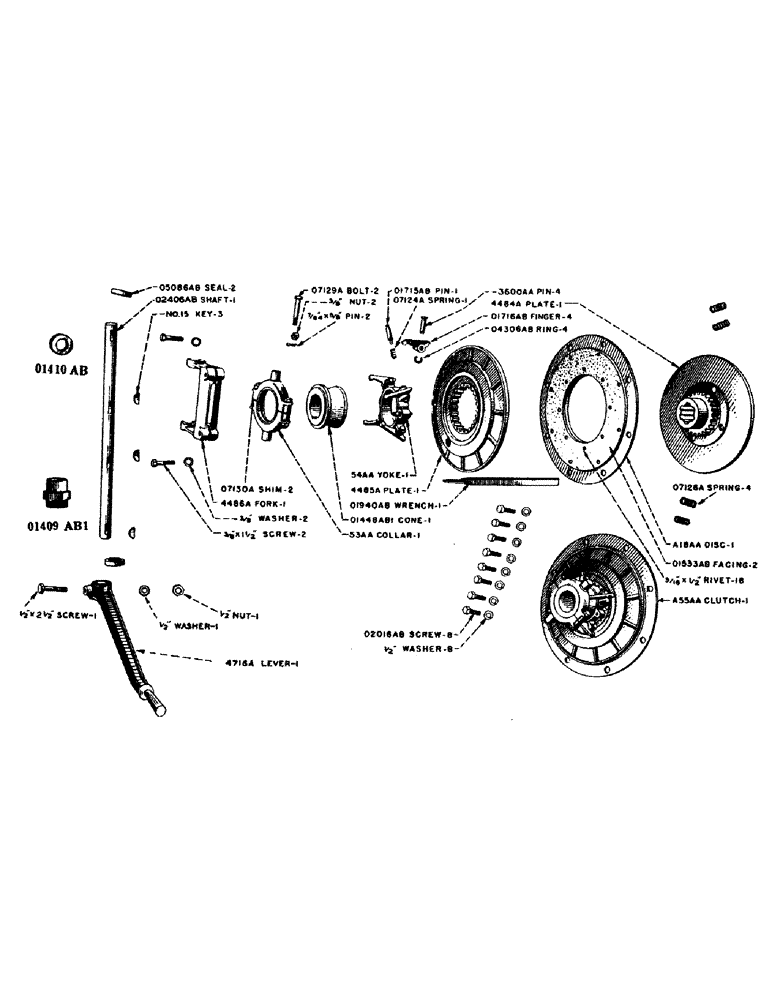

Запчасти Case IH LE (70) - CLUTCH

4484A

BACK PLATE

PLATE, clutch back (YR. 1929)

1шт.

4485A

PLATE, clutch floating (YR. 1929)

1шт.

4486A

FORK, clutch throwout (YR. 1929)

1шт.

SCREW, 3/8" x 1-1/2" hexagon head cap, N.C. thread

2шт.

WASHER, 3/8" standard lock

2шт.

4487A

COLLAR, clutch cone. Use 53AA

1шт.

4716A

LEVER, clutch hand (YR. 1929)

1шт.

SCREW, 1/2" x 2-1/2" hexagon head cap, N.C. thread

1шт.

NUT, 1/2" hexagon, light, N.F. thread

1шт.

WASHER, 1/2" standard lock

1шт.

O7121A

PIN, clutch finger. Use 3600AA

1шт.

O7124A

X

SPRING, clutch adjusting lock (YR. 1929)

1шт.

O7126A

SPRING, clutch release (YR. 1929)

4шт.

O7129A

BOLT, clutch cone collar (YR. 1929)

2шт.

NUT, 3/8" hexagon, light, castle, N.F. thread

2шт.

PIN, 7/64" x 5/8" cotter

2шт.

O7130A

SHIM, clutch cone collar (YR. 1929)

2шт.

O1409AB1

GLAND, clutch throwout shaft. See O5086AB (YR. 29-38)

1шт.

O1410AB

WASHER, felt, clutch throwout shaft gland (YR. 29-38)

2шт.

O1448AB1

CONE, clutch (YR. 1929)

1шт.

O1533AB

FACING, clutch friction. See 3411AA (YR. 1929)

2шт.

RIVET, 3/16" x 1/2" brass tubular, no. 1681

16шт.

O1715AB

PIN, clutch adjusting lock (YR. 1929)

1шт.

O1716AB

FINGER

clutch (YR. 1929)

4шт.

O1940AB

WRENCH, clutch adjusting (YR. 1929)

1шт.

O2016AB

SCREW, cap, clutch driving disc (YR. 1929)

8шт.

WASHER, 1/2" standard lock

8шт.

O2406AB

SHAFT, clutch throwout (YR. 1929)

1шт.

KEY, no. 15 Woodruff

3шт.

O4305AB

X

PIN, clutch finger. Use 3600AA

1шт.

O4306AB

X

RING, snap, clutch finger pin (YR. 1929)

4шт.

O5086AB

X

SEAL, oil, clutch throwout shaft. See O1409AB1 (YR. 1939)

2шт.

A18AA

DISC, clutch driving, with facing (YR. 1929)

1шт.

53AA

COLLAR, clutch cone, complete (YR. 1929)

1шт.

54AA

YOKE, adjusting, assembly (YR. 1929)

1шт.

A55AA

CLUTCH ASSEMBLY. Twin disc. Consists of the above items (YR. 1929)

1шт.

3411AA

FACING, CLUTCH

with rivets (YR. 1929), Consists of 2 - O1533AB facings and 16 - 3/16" x 1/2" brass tubular rivets, no. 1681

1шт.

3600AA

PIN, clutch finger, with snap rings (YR. 1929)

4шт.
