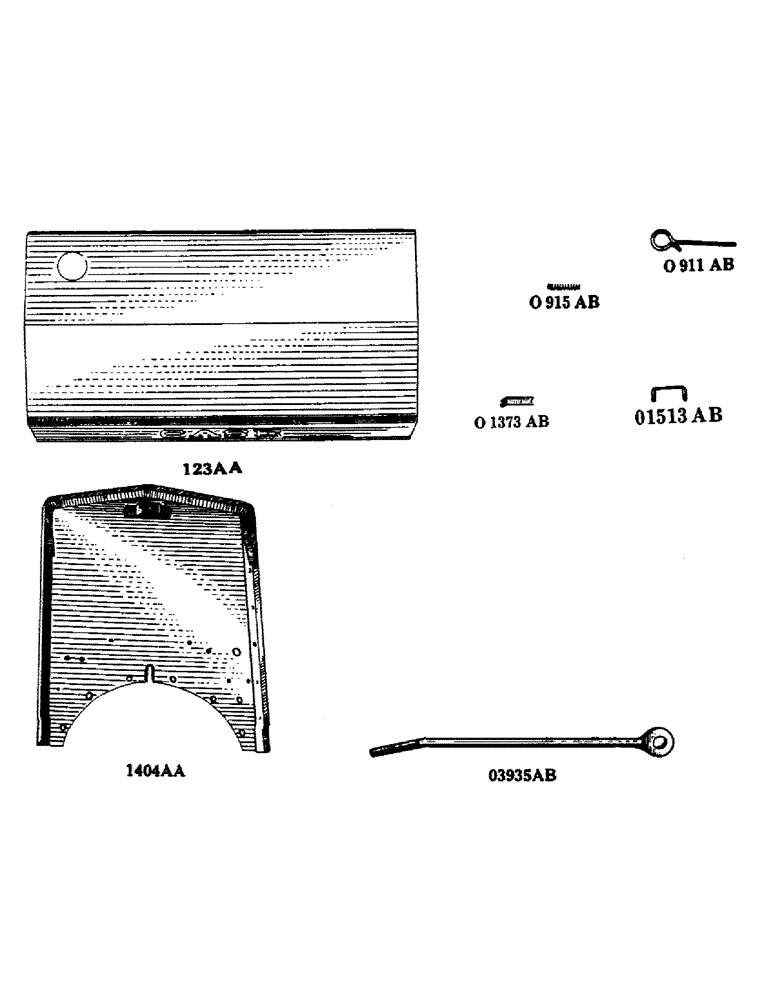

Запчасти Case IH LE (67) - ENGINE HOOD

O911AB

LATCH, hood (YR. 1931)

4шт.

PIN, 3/32" x 1/2" cotter

4шт.

WASHER, 1/4" standard plain

4шт.

O915AB

SPRING, hood latch (YR. 1931)

4шт.

O1373AB

STOP, hood latch, front (YR. 1931)

2шт.

SCREW, 3/8" x 3/4" hexagon head cap, N.C. thread

2шт.

WASHER, 3/8" standard lock

2шт.

O1374AB

STOP, hood latch, rear (YR. 1931)

2шт.

O1513AB

BRACKET, hood latch. Use 2245AA

1шт.

O3570AB

BRACE, hood support, rear. Used with 1261AA plate. See O3935AB (YR. 34-35)

1шт.

BOLT, 5/16" x 3/4" machine, with hexagon nut

1шт.

WASHER, 5/16" standard lock

1шт.

O3935AB

BRACE, hood support. Used with 1464AA plate. See O3570AB (YR. 1935)

1шт.

NUT, 3/8" hexagon, N.C. thread

2шт.

123AA

HOOD, engine (YR. 1931)

1шт.

1261AA

PLATE, hood rear support. Used for rearend of hood when fuel tank is taken off. See 1464AA (YR. 34-35)

1шт.

1404AA

PLATE, hood rear support, with angle. Use 1464AA

1шт.

1464AA

PLATE, hood rear support, with angle. See 1261AA (YR. 1935)

1шт.

2245AA

BRACKET, hood latch, with strap (YR. 1935)

4шт.

RIVET, 3/16" x 5/16" wagon box head

8шт.

RIVET, 1/4" x 3/8" wagon box head

4шт.
