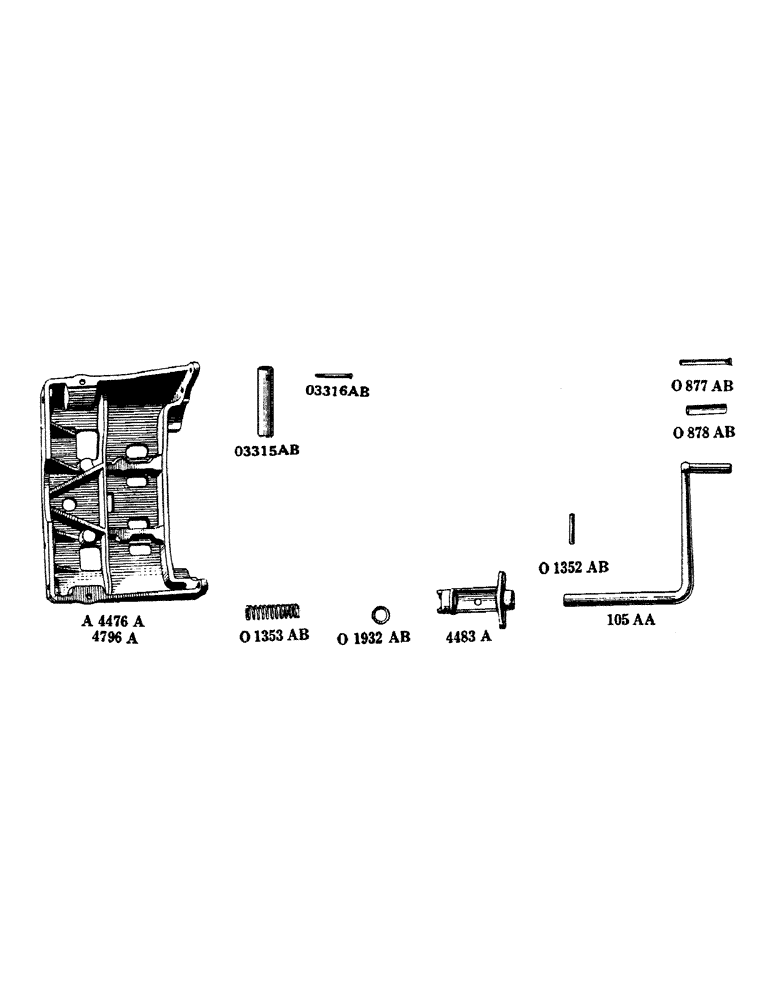

Запчасти Case IH LE (66) - STARTING CRANK AND RADIATOR BRACKET

A4476A

BRACKET, radiator. Used with steel frame. Use 1292AA. See 4796A (YR. 29-35)

1шт.

4483A

BEARING, starting, crank (YR. 1929)

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

4796A

BRACKET, radiator. Used with engine supports. See 1292AA (YR. 1935)

1шт.

O877AB

PIN, starting crank handle (YR. 1929)

1шт.

O878AB

HANDLE, starting crank (YR. 1929)

1шт.

O1352AB

PIN, starting crank (YR. 1929)

1шт.

O1353AB

SPRING, starting crank (YR. 1929)

1шт.

PIN, 1/8" x 1-1/2" cotter

1шт.

O1932AB

WASHER, starting crank spring (YR. 1929)

1шт.

O3315AB

PIN, radiator bracket pivot. Used with A4476A (YR. 29-35)

1шт.

O3316AB

BOLT, pivot pin. Used with A4476A (YR. 29-35)

1шт.

NUT, 1/2" hexagon, N.F. thread

1шт.

WASHER, 1/2" standard lock

1шт.

105AA

CRANK, starting, with handle and pin (YR. 1929)

1шт.

1292AA

BRACKET, radiator, with pivot pin and bolt. See 4796A (YR. 29-35)

1шт.

BOLT, 5/8" x 2" machine, with hexagon nut

6шт.

WASHER, 5/8" standard lock, Consists of: 1 - A4476A, 1 - O3315AB and 1 - O3316AB

6шт.
