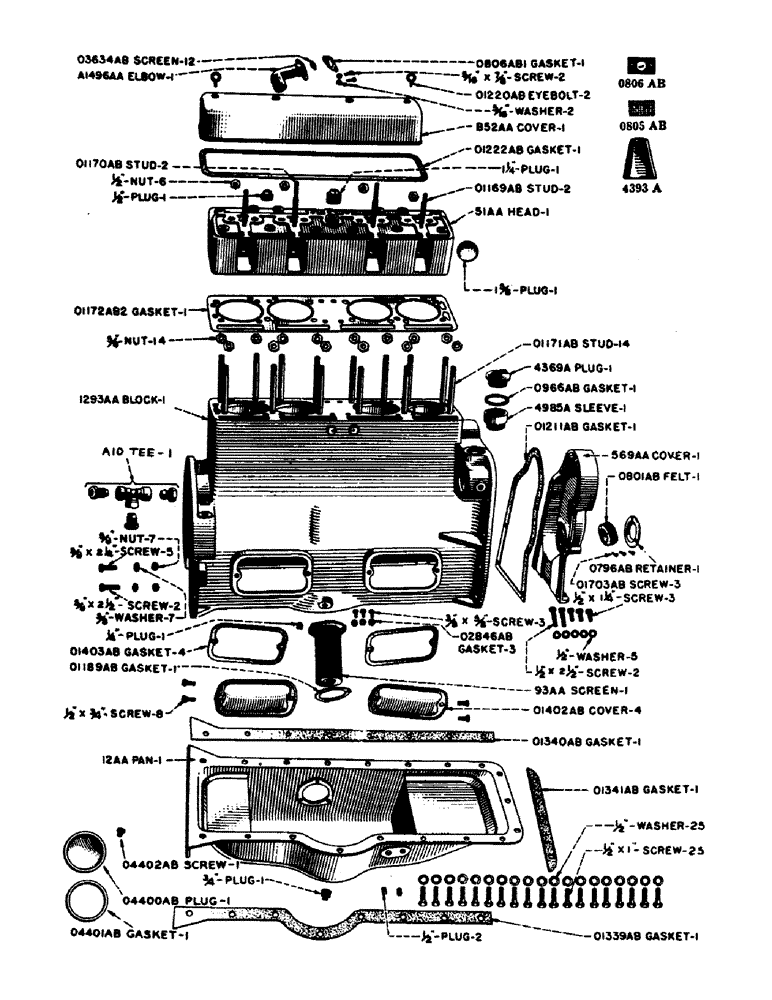

Запчасти Case IH LE (06) - CYLINDER HEAD, CYLINDER BLOCK AND OIL PAN, CYLINDER HEAD

4393A

BODY, breather, LE355363 - Use 443AA (YR. 29-30)

1шт.

4447A

HEAD, cylinder. Use 51AA

1шт.

4448A

COVER, cylinder head. Use B52AA

1шт.

A4448A

COVER, cylinder head. Use B52AA

1шт.

4790A

BODY, breather, LE355362 + see 443AA (YR. 30-34)

1шт.

SCREW, 5/16" x 3/4" round head machine, N.C. thread

2шт.

WASHERS, 5/16" standard lock

2шт.

WOOD, 1/2 oz. no. 2 steel

1шт.

A4790A

BODY, breather. Use A1496AA

1шт.

B4790A

BODY, breather. Use A1496AA

1шт.

O805AB

SCREEN, for 4393A or 4790A breather body. See O3634AB (YR. 29-34)

1шт.

O806AB

GASKET, for 4393A or 4790A breather body. See O806AB1 (YR. 29-34)

1шт.

O806AB1

GASKET, for A4790A or B4790A breather body. See O806AB. (YR. 1935)

1шт.

O1169AB

STUD, valve rocker arm bracket, short (YR. 1929)

2шт.

NUT, 1/2" hexagon, light, semi-finish, N.F. thread

2шт.

O1170AB

STUD, valve rocker arm bracket, long (YR. 1929)

2шт.

NUT, 1/2" hexagon, light, semi-finish, N.F. thread

4шт.

O1171AB

STUD, cylinder head (YR. 1929)

14шт.

NUT, 5/8" hexagon, light, semi-finish, N.F. thread

14шт.

O1172AB2

X

GASKET, cylinder head (YR. 1929)

1шт.

O1220AB

EYEBOLT, cylinder head cover (YR. 1929)

2шт.

O1222AB

X

GASKET, cylinder head cover (YR. 1929)

1шт.

O2729AB

COVER, for 4790A breather body. LE355362 + (YR. 30-34)

1шт.

SCREW, 1/4" 20 x 1/2" round head machine, N.C. thread

2шт.

WASHER, 1/4" standard lock

2шт.

O2730AB

GASKET, for O2729AB breather cover. LE355362 + (YR. 30-34)

1шт.

O3634AB

SCREEN, for A4790A or B4790A breather elbow. See O805AB (YR. 1935)

1шт.

51AA

HEAD, cylinder, with valve guide and valve inserts (YR. 1929)

1шт.

PLUG, 1/2" pipe, square head

1шт.

PLUG, 1-1/4" pipe, square head

1шт.

PLUG, 1-5/8" Welch

1шт.

B52AA

COVER, cylinder head, with breather elbow (YR. 1929)

1шт.

443AA

BREATHER COMPLETE WITH STEEL WOOL. See A1496AA (YR. 29-34)

1шт.

SCREW, 5/16" x 3/4" round head machine, N.C. thread

2шт.

WASHER, 5/16" standard lock

2шт.

A1496AA

BREATHER COMPLETE WITH SCREENS. See 443AA (YR. 1935)

1шт.

SCREW, 5/16" x 7/8" hexagon head cap, N.C. thread

2шт.

WASHER, 5/16" standard lock

2шт.

4369A

X

PLUG, crankcase filler (YR. 1929)

1шт.

4446A

BLOCK, cylinder. Use 342AA

1шт.

4862A

BLOCK, cylinder. Use 1293AA

1шт.

4985A

SLEEVE, crankcase filler, LE300767 + (YR. 1934)

1шт.

O966AB

X

GASKET, for 4369A filler plug (YR. 1929)

1шт.

O1402AB

COVER, crankcase hand hole (YR. 1929)

4шт.

SCREW, 1/2" x 3/4" hexagon head cap, N.C. thread

8шт.

O1403AB

X

GASKET, crankcase hand hole cover (YR. 1929)

4шт.

O4400AB

PLUG, starter motor opening (YR. 1932)

1шт.

O4401AB

GASKET, starter motor opening plug (YR. 1932)

1шт.

O4402AB

SCREW, cap, starter motor opening plug. Use O8194AB

1шт.

O8194AB

SCREW, cap, starter motor opening plug (YR. 1932)

1шт.

342AA

BLOCK, cylinder, with main bearing caps and liners reamed to standard size, less cylinder sleeves, for engines without starter. See 1293AA (YR. 29-31)

1шт.

PLUG, 1/4" pipe, square head

1шт.

BOLT, 5/8" x 2-1/4" machine, with hexagon nut

6шт.

BOLT, 5/8" x 2-1/2" machine, with hexagon nut

2шт.

WASHER, 5/8" standard lock

8шт.

1293AA

BLOCK, cylinder, with main bearing caps and liners reamed to standard size, less cylinder sleeves, for engines with provision for starter. See 342AA (YR. 1932)

1шт.

PLUG, 1/4" pipe, square head

1шт.

TEE A10 UNION, 5/16" tube size

1шт.

SCREW, 5/8" x 2-1/4" hexagon head cap, N.F. thread

5шт.

SCREW, 5/8" x 2-1/2" hexagon head cap, N.F. thread

2шт.

NUT, 5/8" hexagon, light, N.F. thread

7шт.

WASHER, 5/8" standard lock

7шт.

4459A

COVER, timing gear. Use 569AA

1шт.

O796AB

RETAINER, crankshaft front felt (YR. 1929)

1шт.

O801AB

FELT, washer, crankshaft (YR. 1929)

1шт.

O1211AB

X

GASKET, timing gear cover (YR. 1929)

1шт.

O1703AB

SCREW, crankshaft felt retainer (YR. 1929)

3шт.

O2819AB

CONNECTION, governor oiling, screws into 4459A covers LE300400 to engine no. 4202249 (YR. 29-38)

1шт.

569AA

COVER, timing gear, with camshaft thrust button (YR. 1929)

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

3шт.

SCREW, 1/2" x 2-1/2" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

5шт.

O1189AB

X

GASKET, oil pump screen (YR. 1929)

1шт.

O1339AB

X

GASKET, oil pan, R.H. (YR. 1929)

1шт.

O1340AB

X

GASKET, oil pan, L.H. (YR. 1929)

1шт.

O1341AB

X

GASKET, oil pan, front (YR. 1929)

1шт.

O2846AB

X

GASKET, oil screen cap screw (YR. 1929)

3шт.

SCREW, 3/8" x 5/8" hexagon head cap, N.C. thread

3шт.

12AA

PAN, oil (YR. 1929)

1шт.

PLUG, 1/4" pipe, square head

2шт.

PLUG, 3/4" pipe, square head

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

25шт.

WASHER, 1/2" standard lock

25шт.

93AA

X

SCREEN, oil pump (YR. 1929)

1шт.

SCREW, 3/8" x 5/8" hexagon head cap, N.C. thread

3шт.
