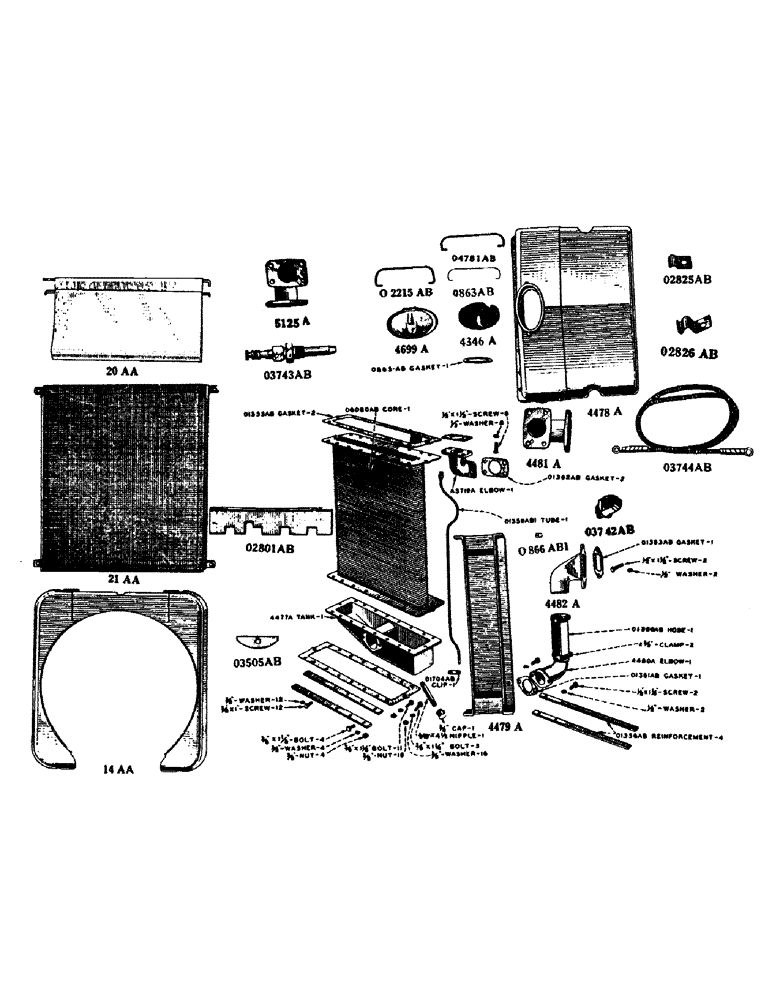

Запчасти Case IH LE (64) - RADIATOR

4346A

CAP, radiator. See 4699A (YR. 1930)

1шт.

4477A

TANK, lower, radiator (YR. 1929)

1шт.

BOLT, 3/8" x 1-1/8" machine, with square nut, N.C. thread

11шт.

BOLT, 3/8" x 1-1/4" machine, with square nut, N.C. thread

5шт.

WASHER, 3/8" standard lock

16шт.

NIPPLE, 3/8" x 4-1/2" pipe

1шт.

CAP, 3/8" hexagon pipe

1шт.

4478A

TANK, top, radiator (YR. 1929)

1шт.

4479A

MEMBER, radator side (YR. 1929)

2шт.

BOLT, 3/8" x 1-1/4" machine, with square nut

2шт.

BOLT, 1/2" x 2-1/4" machine, with hexagon nut

2шт.

SCREW, 3/8" x 1" hexagon head cap, N.C. thread

8шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

2шт.

WASHER, 3/8" standard lock

8шт.

4480A

ELBOW, outlet, radiator (YR. 1929)

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

4481A

ELBOW, inlet, radiator. Use 3335AA

1шт.

A4481A

ELBOW, inlet, radiator. See 5125A and 3335AA (YR. 1937)

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

8шт.

WASHER, 1/2" standard lock

8шт.

4482A

ELBOW, inlet, cylinder (YR. 1929)

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

4699A

CAPSCREW

CAP, radiator. See 4346A (YR. 1929)

1шт.

5125A

ELBOW RADIATOR INLET. Used with engines equipped with high temperature cut-out. See A4481A and 3335AA (YR. 1929)

1шт.

A5719A

ELBOW, inlet, radiator. Use 3335AA

1шт.

O863AB

X

SPRING, for 4346A radiator cap. Use O4781AB

1шт.

O865AB

GASKET

radiator cap (YR. 1929)

1шт.

O866AB1

CONNECTION, radiator overflow tube (YR. 1929)

1шт.

O1355AB

GASKET

radiator head (YR. 1929)

2шт.

O1356AB

REINFORCEMENT, radiator head (YR. 1929)

4шт.

BOLT, 3/8" x 1-1/8" machine, N.C. thread

4шт.

SCREW, 3/8" x 1" hexagon head cap, N.C. thread

12шт.

WASHER, 3/8" standard lock

12шт.

O1359AB

TUBE, radiator overflow. Use 2488AA

1шт.

O1359AB1

TUBE, radiator overflow. Use 2488AA

1шт.

O1360AB

HOSE, radiator (YR. 1929)

1шт.

CLAMP, no. 16 hose

2шт.

O1361AB

GASKET

radiator outlet elbow (YR. 1929)

1шт.

O1362AB

GASKET

radiator inlet elbow (YR. 1929)

2шт.

O1363AB

GASKET

cylinder inlet elbow (YR. 1929)

1шт.

O1704AB

CLIP, radiator overflow tube (YR. 1929)

1шт.

BOLT, 3/8" x 1-1/4" machine, N.C. thread

1шт.

WASHER, 3/8" standard lock

1шт.

O2215AB

SPRING, for 4699A radiator cap. See O4781AB (YR. 1929)

1шт.

O2801AB

SHROUD, fan housing bottom. Prior to Engine no. 4400000 (YR. 30-40)

1шт.

BOLT, 1/4" x 1/2" round head stove, N.C. thread

2шт.

WASHER, 1/4" standard lock

2шт.

O2801AB1

SHROUD, fan housing bottom. Engine no. 4400000 and after, or with 20" fan (YR. 1940)

1шт.

BOLT, 1/4" x 1/2" round head stove, N.C. thread

2шт.

WASHER, 1/4" standard lock

2шт.

O2825AB

X

CLIP, for O3744AB wire (YR. 1935)

1шт.

O2826AB

CLIP, for O3744AB wire (YR. 1935)

1шт.

O3505AB

SHIM, radiator (YR. 1934)

2шт.

O3742AB

X

THERMOSTAT. Used special from 1935 season to 1937 Regular after 1937 (YR. 1935)

1шт.

O3743AB

CUT-OUT, high temperature (YR. 1935)

1шт.

O3744AB

WIRE, high temperature cut-out (YR. 1935)

1шт.

O4781AB

SPRING

for 4346A radiator cap. See O2215AB (YR. 1930)

1шт.

O5640AB

CORE, radiator, with header. High cooling capacity. See O6080AB (YR. 1940)

1шт.

O6080AB

CORE, radiator, with header. Regular. See O5640AB (YR. 1929)

1шт.

14AA

HOUSING, fan. Prior to Engine no. 4400000 (YR. 29-40)

1шт.

BOLT, 1/4" x 5/8" machine, with square nut

6шт.

A14AA

HOUSING, fan. Engine no. 4400000 and after, or with 20" fan (YR. 1940

1шт.

BOLT, 1/4" x 5/8" machine, with square nut, N.C. thread

6шт.

20AA

CURTAIN, radiator (YR. 1929)

1шт.

21AA

SCREEN, radiator (YR. 1929)

1шт.

170AA

RADIATOR, complete (YR. 1929)

1шт.

848AA

GUARD, radiator. Machinery item (YR. 1932), Consists of 1 - guard, 4 - 3/8" x 2" machine bolts with hexagon nuts and 4 - 3/8" lockwasher

1шт.

2488AA

TUBE, radiator overflow, with connector (YR. 1929)

1шт.

3335AA

ELBOW, inlet, radiator. See A4481A and 5125A, Consists of 1 - A5719A elbow, 1-1/2" pipe plug and 4-1/2" x 1-1/2" hexagon head cap screw, N.C. thread. (YR. 29-36)

1шт.
