Запчасти Case IH LE (58) - SPARK AND THROTTLE CONTROL, PRIOR TO ENGINE NUMBER LE305867, ENGINE NUMBER LE305867 AND AFTER

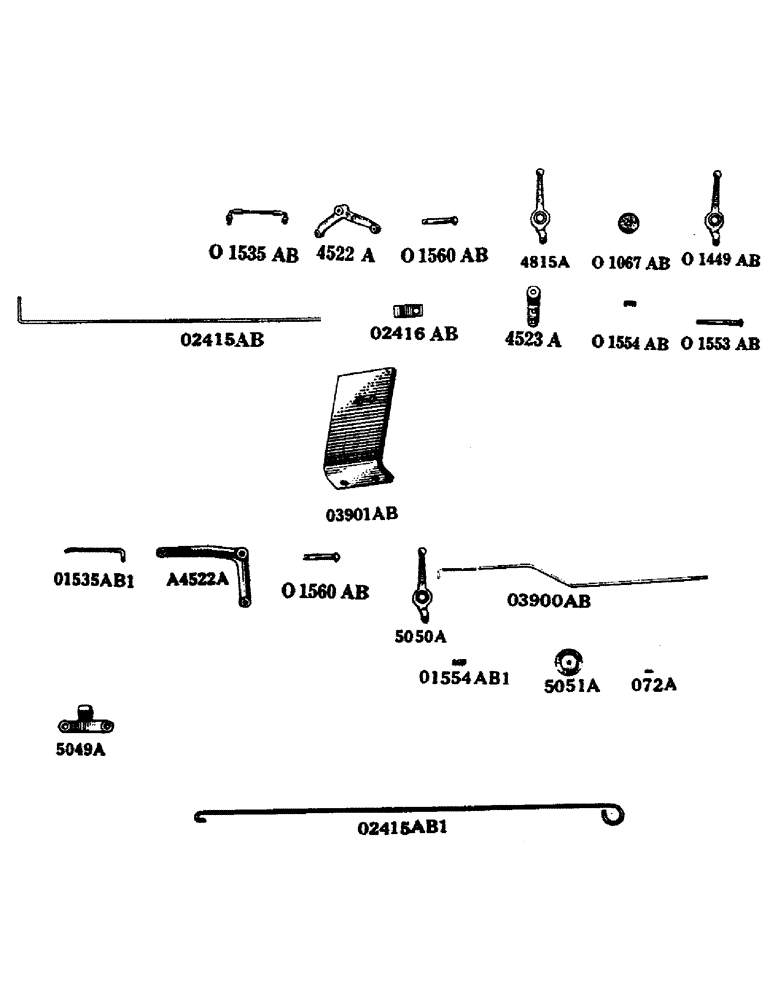

Схема запчастей Case IH LE - (58) - SPARK AND THROTTLE CONTROL, PRIOR TO ENGINE NUMBER LE305867, ENGINE NUMBER LE305867 AND AFTER

№

Артикул

Название

Примечание

Количество

4522A

LEVER, spark, LE305867 - (YR. 29-35)

1шт.

A4522A

LEVER, spark, LE305866 + (YR. 1935)

1шт.

4523A

LEVER, throtle, LE301844 - For Kingston carburetor (YR. 29-35)

1шт.

4815A

LEVER, throttle hand, or rear support plate. Used with Kingston carburetor. LE301844 - See 5050A (YR. 29-35)

1шт.

BOLT, 3/8" x 2-1/4" machine, with square nut

1шт.

NUT, 3/8" square, N.C. thread

1шт.

5049A

BRACKET, throttle rod, used with Zenith carburetor, LE301843 + (YR. 1935)

1шт.

SCREW, 1/4"-20 x 1-1/2" round head machine, N.C. thread

2шт.

WASHER, 1/4" standard plain

1шт.

5050A

LEVER, throttle hand, on rear support plate LE301843 + For Zenith carburetor. See 4815A (YR. 1935)

1шт.

BOLT, 3/8" x 4-1/2" hexagon head machine, N.C. thread

1шт.

5051A

DISC, friction, throttle hand lever, LE301843 + For Zenith carburetor. See O1067AB (YR. 1935)

1шт.

O72A

DOWEL, for 5051A disc, LE301843 + (YR. 1935)

1шт.

O1067AB

DISC, friction, throttle hand lever, LE301844 - For Kingston carburetor. See 5051A (YR. 29-35)

1шт.

O1067AB

DISC, friction, spark hand lever. See 5051A (YR. 1935)

1шт.

O1449AB

LEVER, spark and throttle hand, LE330497 - Use 4815A (YR. 29-31)

1шт.

O1535AB

LINK, magneto lever, LE305867 - (YR. 29-35)

1шт.

PIN, 1/16" x 3/8" cotter

2шт.

O1535AB1

LINK, magneto lever, LE305866 + (YR. 1935)

1шт.

PIN, 1/16" x 3/8" cotter

2шт.

O1553AB

BOLT, spark and throttle hand lever, LE301844 - (YR. 29-35)

1шт.

NUT, 3/8" hexagon, castle, N.F. thread

1шт.

PIN, 3/32" x 7/8" cotter

1шт.

BOLT, 3/8" x 4-1/2" hex. head machine bolt N.C. threaded w/double nuts for spark and throttle hand lever. L301843 +. See O1553AB (YR. 1935)

1шт.

O1554AB

X

SPRING, throttle hand lever. LE301844 - (YR. 29-35)

1шт.

O1554AB1

X

SPRING, throttle hand lever, LE301843 + (YR. 1935)

1шт.

O1560AB

PIN, spark lever (YR. 1929)

1шт.

PIN, 3/32" x 1/2" cotter

1шт.

O2415AB

ROD, spark, LE301844 - For Kingston carburetor. See 766AA (YR. 29-35)

1шт.

PIN, 3/32" x 5/8" cotter

1шт.

O2415AB1

ROD, spark, LE301843 + For Zenith carburetor. See 766AA (YR. 1935)

1шт.

PIN, 3/32" x 5/8" cotter

1шт.

O2416AB

CLIP, for O2415AB rod (YR. 29-35)

1шт.

O3571AB

BRACKET, throttle rod, LE301844 - Used with Kingston carburetor. See O3901AB (YR. 29-35)

1шт.

O3587AB

ROD, throttle, LE301844 - Used with Kingston carburetor (YR. 29-35)

1шт.

PIN, 1/16" x 3/8" cotter

2шт.

O3900AB

ROD, throttle, LE301843 + Used with Zenith carburetor (YR. 1935)

1шт.

NUT, 3/8" hexagon, N.C. thread

2шт.

PIN, 1/8" x 3/4" cotter

2шт.

O3901AB

BRACKET, throttle lever support, LE301844 + See O3571AB (YR. 1935)

1шт.

SCREW, 3/8" x 2-1/2" hexagon head cap, N.F. thread

1шт.

NUT, 3/8" hexagon, N.C. thread

1шт.

766AA

ROD, spark, with clip, LE301844 - For Kingston carburetor. See O2415AB1 (YR. 29-35)

1шт.

PIN, 3/32" x 5/8" cotter

1шт.

Выбрано товаров: 44
