Запчасти Case IH LE (57) - PARTS FOR 4-CMA CASE MAGNETO, ORDER FROM AUTHORIZED CASE MAGNETO DISTRIBUTOR OR SERVICE STATION

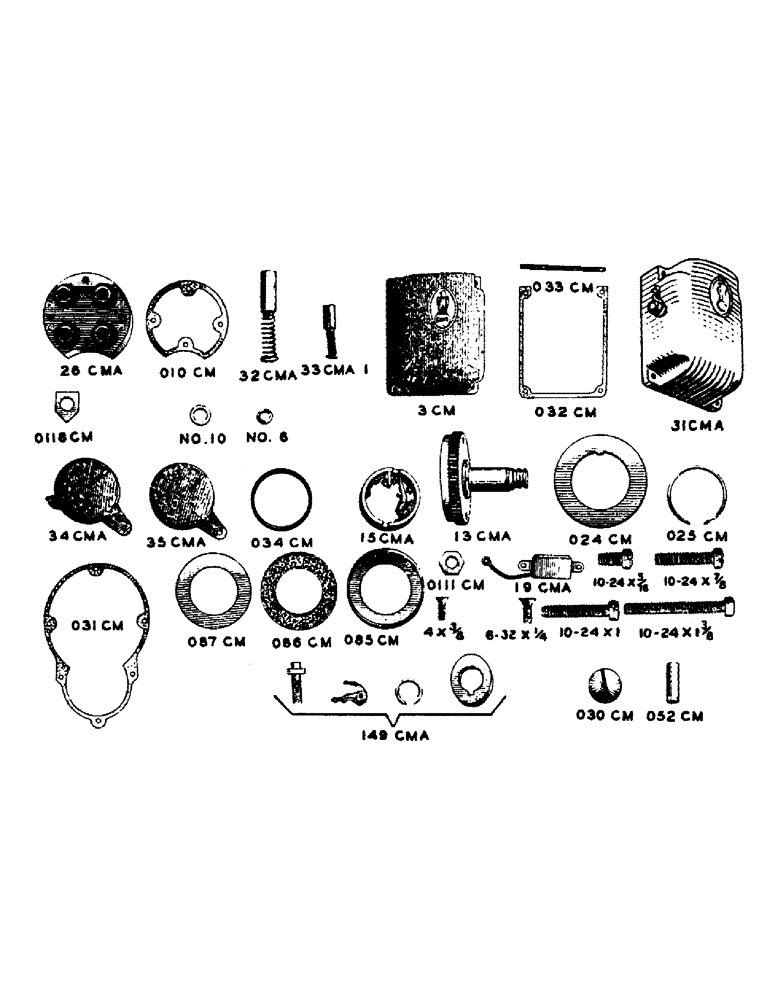

Схема запчастей Case IH LE - (57) - PARTS FOR 4-CMA CASE MAGNETO, ORDER FROM AUTHORIZED CASE MAGNETO DISTRIBUTOR OR SERVICE STATION

Артикул

Название

Примечание

Количество

3CM

COVER, top

1шт.

O10CM

GASKET, distributor block

1шт.

O24CM

WASHER, distributor shaft thrust

1шт.

O25CM

RING, snap, distributor shaft

1шт.

O30CM

PLUG, distributor bearing well screw

2шт.

O31CM

GASKET, magneto frame end cap

1шт.

O32CM

GASKET, frame top cover shelf

1шт.

O33CM

GASKET, frame top cover strip

1шт.

O34CM

RING, cork, breaker box cover

1шт.

O52CM

PIN, fulcrum

1шт.

O85CM

RING, coupling, cupped

1шт.

O86CM

RING, coupling, felt

1шт.

O87CM

WASHER, flat, coupling felt ring

1шт.

O111CM

NUT, coil primary

1шт.

O118CM

POINTER, timing

1шт.

13CMA

GEAR, distributor, shaft and disc

1шт.

15CMA

BOX, breaker, assembly

1шт.

19CMA

CONDENSER ASSEMBLY

1шт.

26CMA

BLOCK, distributor

1шт.

31CMA

COVER, top, with ground terminal for 4 CMA-30-GT magneto

1шт.

32CMA

BRUSH AND SPRING, distributor block

4шт.

33CMA-1

BRUSH AND SPRING, distributor disc

1шт.

34CMA

COVER, breaker box, with compression spring for 20 degree

1шт.

35CMA

COVER, breaker box, with compression spring for 30 degree

1шт.

36CMA

WIRE, shunt

1шт.

149CMA

CONTACT

KIT, contact point. Contains cam, cam ring, breaker bar assembly, stationary contact screw point, nut and wrench with .018" gap gauge, breaker bar spring screw, nut, spacing and lock washers and complete directions for installing

1шт.

WASHER, no. 6 standard lock

1шт.

WASHER, no. 10 standard lock

1шт.

SCREW, no. 10-24 x 5/16" fillister head, for condenser

1шт.

SCREW, no. 10-24 x 7/8" fillister head, for end cap and top cover

1шт.

SCREW, no. 10-24 x 1" fillister head, for distributor block

1шт.

SCREW, no. 10-24 x 1-3/8" fillister head, for top cover

1шт.

SCREW, no. 6-32 x 1/4" fillister head, for shunt wire

1шт.

SCREW, no. 4 x 3/8" flat head Parker-Kalon, for coupling cupped washer

1шт.

Выбрано товаров: 34
