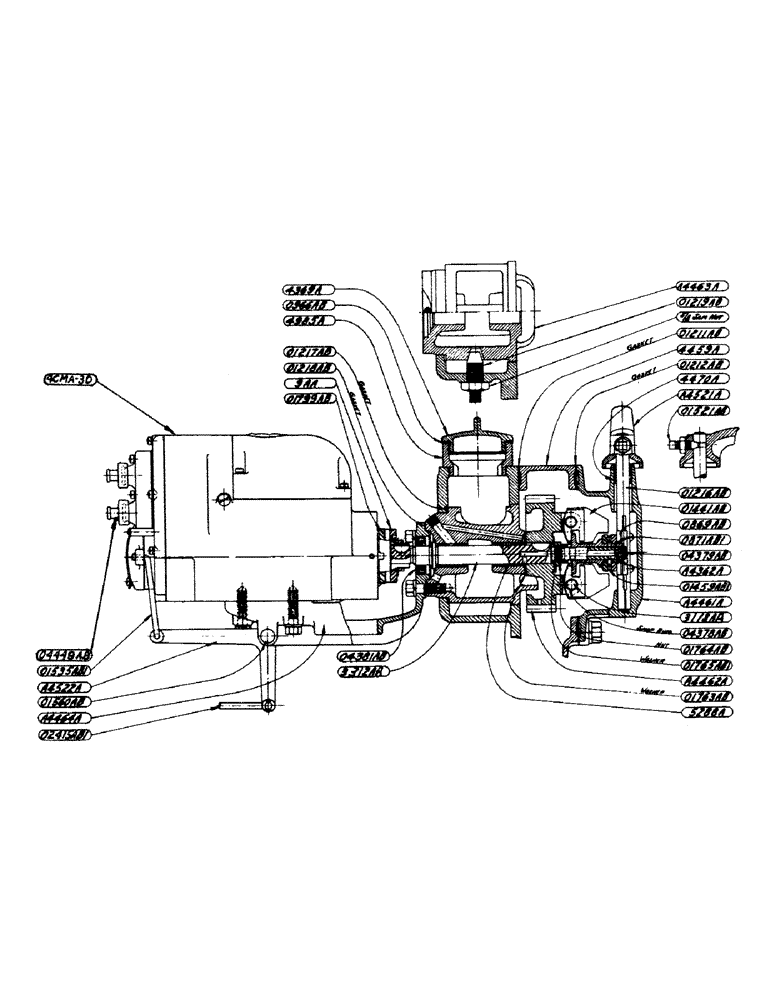

Запчасти Case IH LE (51) - GOVERNOR AND MAGNETO ASSEMBLY, ENGINE NUMBER 4208797 AND AFTER

A4362A

X

SLEEVE, governor (YR. 1929)

1шт.

4431A

COLLAR, governor rod spring. Used with O1709AB2 Zenith carburetor

1шт.

Engine no. LE301844 to no. 4210939 (YR. 35-38)

1шт.

SCREW, 1/4" x 3/4" cup point set, N.C. thread

1шт.

NUT, 1/4" hexagon, N.C. thread

1шт.

4461A

COVER, governor housing. Use 1428AA

1шт.

A4461A

COVER, governor housing. Use A1428AA

1шт.

4462A

GEAR, governor. Prior to engine no. 4202249 (YR. 29-38)

1шт.

KEY, no. 6 Woodruff

1шт.

A4462A

GEAR, governor. Engine no. 4202249 and after (YR. 1938)

1шт.

KEY, no. 9 Woodruff

1шт.

4463A

CARRIER, governor bearing. Prior to engine no. 4202249. See 3716AA (YR. 29-38)

1шт.

A4463A

CARRIER, governor bearing. Use 3716AA

1шт.

4470A

BUSHING, governor housing cover (YR. 1929)

2шт.

4521A

LEVER, governor, LE301844- (YR. 29-35)

1шт.

A4521A

LEVER, governor, LE301843+ (YR. 1935)

1шт.

5022A

CONNECTION, governor spring, LE301843+ (YR. 1935)

1шт.

5288A

BUSHING, governor bearing carrier. Engine no. 4202249 and after (YR. 1938)

2шт.

O7522A

X

JOINT, governor lever security ball (YR. 1929)

1шт.

WASHER, 1/4" standard lock

1шт.

O869AB

FINGER, governor (YR. 1929)

1шт.

SCREW, no. 10 x 1/2" round head machine, N.F. thread

2шт.

WASHER, 3/16" standard lock

2шт.

O871AB

RING, snap, governor bearing. Prior to engine no. 4202249 (YR. 29-38)

1шт.

O871AB1

RING, snap, governor bearing. Engine no. 4202249 and after (YR. 1938)

1шт.

O872AB

PIN, governor weight. Use 3118aa

1шт.

O1193AB

X

NUT, lock, for 4463A governor bearing carrier (YR. 29-38)

1шт.

O1212AB

X

GASKET, governor housing carrier (YR. 1929)

1шт.

O1213AB

SHAFT, governor. Prior to engine no. 4202249. See 3312AA (YR. 29-38)

1шт.

KEY, no. 11 Woodruff

1шт.

NUT, 3/4" hexagon, jam, N.C. thread

1шт.

O1215AB

WASHER, lock, for O1213AB shaft. Prior to engine no. 4202249 (YR. 29-38)

1шт.

O1216AB

SHAFT, governor lever (YR. 1929)

1шт.

O1217AB

PACKING, governor bearing carrier (YR. 1929)

1шт.

O1218AB

GASKET, governor bearing carrier (YR. 1929)

1шт.

O1219AB

SCREW, governor bearing carrier (YR. 1929)

1шт.

NUT, 5/8" hexagon, jam, N.C. thread

1шт.

O1441AB

X

WEIGHT, governor (YR. 1929)

2шт.

O1459AB

X

BEARING, use O145AB1

1шт.

O1459AB1

X

BEARING, thrust, governor shaft, Nice no. 1005 (YR. 1929)

1шт.

O1515AB

STUD, adjusting screw, governor lever, LE301844- (YR. 29-35)

1шт.

NUT, 3/8" hexagon, jam, N.C. thread

1шт.

O1516AB

SCREW, adjusting, governor lever, LE301844- (YR. 29-35)

1шт.

NUT, 3/8" hexagon, N.C. thread

1шт.

O1521AB

SCREW, set, governor lever (YR. 1929)

1шт.

NUT, 5/16" hexagon, jam, N.C. thread

1шт.

O1541AB

CUP, for O1213AB governor shaft, Timken no. O9194. Prior to engine no. 4202249 (YR. 29-38)

2шт.

O1542AB

BEARING ASSY

CONE, for O1213AB governor shaft, Timken no. O9074. Prior to engine no. 4202249 (YR. 29-38)

2шт.

O1578AB

ROD, governor lever to throttle valve, LE301844-. (Used with Kingston carburetor). See O3617AB (YR. 29-35)

1шт.

O1763AB

WASHER, thrust, governor gear. Engine no. 4202249 and after (YR. 1938)

1шт.

O1764AB

NUT, lock, governor shaft (YR. 1929)

1шт.

O1765AB1

NUT, lock, governor shaft (YR. 1929)

1шт.

O1847AB

SPRING, governor. LE301844-. See O3544AB (YR. 29-35)

1шт.

O2819AB

CONNECTION, governor oiling, screws into 4459A timing gear.

1шт.

Engine no. LE300400 to 4202249 (YR. 31-38)

1шт.

O2820AB

TUBE, tee to governor. Prior to engine no. 4202249. See O2820AB2 (YR. 29-38)

1шт.

O2820AB1

TUBE, tee to governor. Use O2820AB2

1шт.

O2820AB2

TUBE, tee to governor. Engine no. 4202249 and after (YR. 1938)

1шт.

O2825AB

X

CLIP, tee to governor tube (YR. 1929)

3шт.

BOLT, 1/4" x 1/2" round head stove, N.C. thread

3шт.

WASHER, 1/4" standard lock

3шт.

O3541AB

STUD, governor housing cover, LE301843+ (YR. 1935)

1шт.

NUT, 1/2" hexagon, N.C. thread

1шт.

O3544AB

SPRING, governor rod, LE301843+. See O1847AB (YR. 1935)

1шт.

O3546AB

ROD, governor spring, LE301843+ (YR. 1935)

1шт.

PIN, 3/32" x 5/8" cotter

1шт.

O3617AB

ROD, governor to Zenith carburetor LE301843+. See O1578AB (YR. 1935)

1шт.

O4378AB

RING, snap, governor weight pin (YR. 1929)

4шт.

O4379AB

PLUG, for 3312AA governor shaft. Engine no. 4202249 and after (YR. 1938)

1шт.

PIN, 3/32" x 3/8" full length taper groove, type 1

1шт.

140AA

GOVERNOR ASSEMBLY. Prior to engine no. 4202249 (YR. 29-38), Consists of: 1 - A4362A, 1 - 4462A, 1 - 4463A, 1 - O871AB, 2 - O872AB, 1 - O1213AB, 1 - O1215AB, 2 - O1441AB, 1 - O1459AB1, 2 - O1541AB and 2 - O1542AB

1шт.

A140AA

GOVERNOR ASSEMBLY. Engine no. 4202249 and after (YR. 1938), Consists of: 1 - A4362A, 1 - A4462A, 1 - A4463A, 2 - 5288A, 1 - O871AB1, 2 - O1441AB, 1 - O1459AB1, 1 - O1763AB, 1 - O1765AB1, 4 - O4378AB, 1 - O4379AB, 2 - 3118AA, and 1 - 3312AA

1шт.

1428AA

COVER, governor housing, with bushing, LE301844-. (Used with Kingston carberutor) (YR. 29-35)

1шт.

SCREW, 1/2" x 3-1/2" hexagon head cap, N.C. thread

3шт.

WASHER, 1/2" standard lock

3шт.

PLUG, 1/8" pipe, square head

1шт.

A1428AA

COVER, governor housing, with bushing, LE301843+. (Used with Zenith carburetor) (YR. 1935)

1шт.

SCREW, 1/2" x 3-1/2" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

PLUG, 1/8" pipe, square head

2шт.

3118AA

PIN, governor weight, with O4378AB snap rings (YR. 1929)

2шт.

3312AA

X

SHAFT, governor, with plug. Engine no. 4202249 and after. See O1213AB (YR. 1938)

1шт.

KEY, no. 6 Woodruff

1шт.

KEY, no. 9 Woodruff

1шт.

3716AA

CARRIER, governor bearing, with bushing. Engine no. 4202249 and after. See 4463A (YR. 1938)

1шт.

CONNECTOR, 1/8" pipe thread x 3/16" tube size, Dole A3 male, with compression screw

1шт.

4464A

BRACKET, magneto. Use A446A

1шт.

A4464A

BRACKET, magneto (YR. 1929)

1шт.

SCREW, 3/8" x 1" hexagon head cap, N.C. thread

3шт.

SCREW, 3/8" x 1-3/8" hexagon head cap, N.C. thread

2шт.

WASHER, 3/8" standard lock

5шт.

O6645A2

MAGNETO, Robert Bosch F.U. 4C225, LE305867-. Use 4CMA Case magneto (YR. 29-35)

1шт.

O6645A3

MAGNETO, American Bosch M.J.A. 4-B-112 with impulse coupling ACA2-A4. Tractor no. LE305866+ to tractor no. 4208797. Use 4CMA-30 Case magneto (YR. 35-38)

1шт.

O874AB

WASHER, felt, magneto bracket. Prior to engine no. 4202249. See O4381AB (YR. 29-38)

1шт.

O875AB

RETAINER, magneto bracket felt. Prior to engine no. 4202249. See O4381AB (YR. 29-38)

1шт.

O1799AB

X

PIECE, magneto coupling center (YR. 1929)

1шт.

O4381AB

SEAL, oil, magneto bracket. Engine no. 4202249 and after. See O874AB and O875AB (YR. 1938)

1шт.

O4738AB

GAUGE, timing and assembling. For 4CMA-30 "Case" magneto (YR. 1938)

1шт.

O8217AB

MEMBER, magneto coupling adjustable drive. Use 9AA

1шт.

O8218AB

CONE, magneto coupling adjusting. Use 9AA

1шт.

O8219AB

NUT, magneto coupling adjusting (YR. 1929)

1шт.

O8220AB

WASHER, magneto coupling lock (YR. 1929)

1шт.

9AA

X

COUPLING, magneto. Consists of 1 - O8217AB, 1 - O8218AB, 1 - O8219AB, and 1 - O8220AB (YR. 1929)

1шт.

136AA

COVER, magneto (For Robert Bosch magneto) (YR. 29-36)

1шт.

4CMA-30

MAGNETO, "Case", engine no. 4208797 and after. See O6645A2 and O6645A3 (YR. 1938)

1шт.

4CMA-30-GT

MAGNETO, "Case", with ground terminal, used with low oil pressure cut-out (YR. 1935)

1шт.
