Запчасти Case IH LE (48) - FUEL PUMP

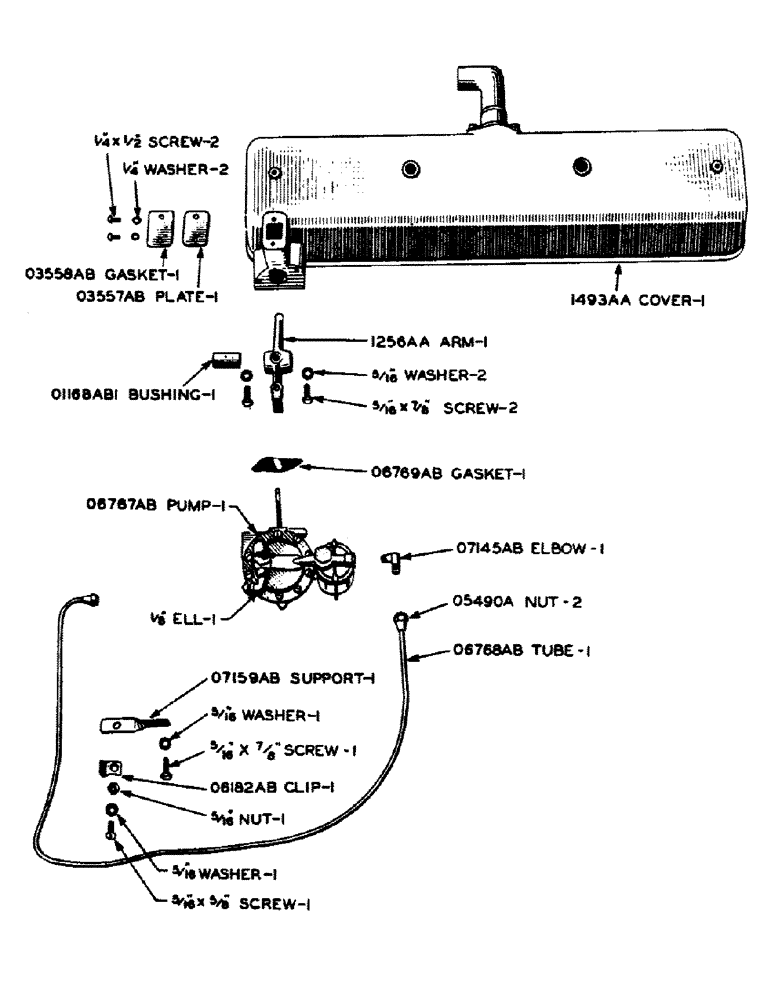

Схема запчастей Case IH LE - (48) - FUEL PUMP

Артикул

Название

Примечание

Количество

A5030A

COVER, cylinder head, use 1493AA

1шт.

O5490A

X

NUT, 5/16" flared tube (Short) Fuel pump to carburetor tube

2шт.

O1168AB1

BUSHING, valve rocker arm

1шт.

O3557AB

PLATE, cylinder head cover

1шт.

SCREW, 1/4" x 1/2" round head machine, N.C. thread

2шт.

WASHER, 1/4" standard lock

2шт.

O3558AB

GASKET, cylinder head cover plate

1шт.

O6182AB

CLIP, fuel pump to carburetor tube

1шт.

SCREW, 5/16" x 5/8" round head machine

1шт.

NUT, 5/16" hexagon, regular, N.C. thread

1шт.

WASHER, 5/16" standard lock

1шт.

O6767AB

PUMP, fuel, purchased from AC Spark Plug Co., their no. 1522134

1шт.

SCREW, 5/16" x 7/8" hexagon head cap, N.C. thread

2шт.

WASHER, 5/16' standard lock

2шт.

ELL, 1/8" street

1шт.

O6768AB

TUBE, fuel, Serial Range: pump-carburetor

1шт.

O6769AB

GASKET, fuel pump

1шт.

O7145AB

X

ELBOW, fuel pump

1шт.

O7159AB

SUPPORT, clip, fuel pump to carburetor tube

1шт.

SCREW, 5/16" x 7/8" hexagon head cap, N.C. thread

1шт.

WASHER, 5/16" standard lock

1шт.

1256AA

ARM, valve rocker, with bushing

1шт.

1493AA

COVER, cylinder head, with breather

1шт.

132108

AIR PRE-CLEANER ASSY

SCREW, bottom cover

3шт.

854003

HOSE

GASKET, bowl

1шт.

854004

HYDRAULIC HOSE,0.38" ID x 24.38"

BOWL, glass

1шт.

854005

FLEXIBLE HOSE

SEAT, bowl

1шт.

854009

HYD TUBE,0.375" OD x 12.25", 4.18" L

SCREEN

1шт.

855012

GASKET, pull rod

1шт.

855016

DECAL

PIN, link

2шт.

855017

DECAL KIT

CLIP, link pin

4шт.

855029

WASHER, diaphragm alignment

1шт.

855064

V-BELT,0.88" W x 69.00" L

Lockwasher, Top Cover Screw 0.88" W x 69.00" L

10шт.

855213

NUT, pull rod

1шт.

855250

ROD, pull

1шт.

855253

SPRING, rocker arm

1шт.

855274

GEARBOX

PROTECTOR, upper diaphragm

1шт.

855279

VALVE, fuel pump

2шт.

855281

PLUG, valve

1шт.

855282

GASKET, valve plug

2шт.

855389

DIAPHRAGM (5 pieces)

2шт.

855390

LOCKWASHER, pull rod

1шт.

855493

SCREW, top cover

10шт.

855532

ROD

CAP, spring

2шт.

855573

COVER, bottom

1шт.

855574

SENDER UNIT

LINK

2шт.

855585

GASKET, bottom cover

1шт.

855761

COVER, top, with valve seat assembly

1шт.

855763

NUT, bail thumb

1шт.

855918

AIR DOME

1шт.

856270

FRAME

SPRING, valve

2шт.

954016

BAIL AND SCREW

1шт.

1521085

BODY, fuel pump

1шт.

1521187

SPRING, diaphragm

1шт.

1521288

WASHER, rocker arm pin

1шт.

1521289

PIN, rocker arm

1шт.

1521720

PROTECTOR, lower diaphragm

1шт.

1522138

ARM, rocker

1шт.

1522280

LEVER, priming

1шт.

Выбрано товаров: 59
