Запчасти Case IH LE (46) - FUEL TANK

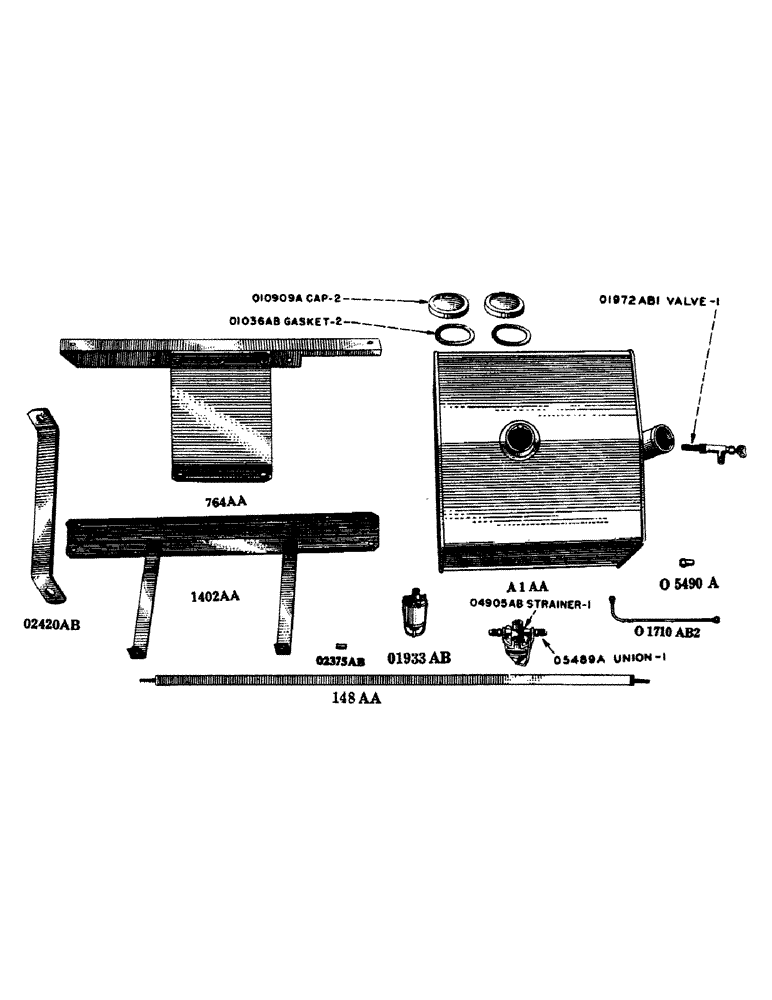

Схема запчастей Case IH LE - (46) - FUEL TANK

Артикул

Название

Примечание

Количество

O5489A

X

UNION, 5/16" x 1/8" flared tube - for O170AB3 tube (YR. 1929)

2шт.

O5490A

X

NUT, 5/16" flared tube (Short) For O1710AB3 and O3902AB tubes (YR. 1929)

2шт.

O1036AB

X

GASKET, fuel tank filler cap (YR. 1929)

2шт.

O1514AB

CUSHION, fuel tank (YR. 1929)

4шт.

O1710AB2

TUBE, needle valve to fuel strainer, LE361268 + to Engine no. 4200000 (YR. 29-38)

1шт.

O1710AB3

TUBE, needle valve to fuel strainer. Engine no. 4200000 and after (YR. 1938)

1шт.

O1711AB

TUBE, Kingston carburetor to fuel strainer. LE301844 - See O3902AB (YR. 29-35)

1шт.

O1933AB

X

STRAINER, fuel. Use O4905AB with 1/8" square head pipe plug

1шт.

O1972AB

VALVE, needle. Prior to Engine no. 4200000. See O1972AB1 (YR. 29-38)

1шт.

O1972AB1

VALVE, needle. Engine no. 4200000 and after. (YR. 1938)

1шт.

O2375AB

TUBE, inlet, for O1933AB fuel strainer (YR. 29-38)

1шт.

O2419AB

BRACE, fuel tank support, long (YR. 29-35)

2шт.

O2420AB

BRACE, fuel tank support, short (YR. 29-35)

2шт.

O3902AB

TUBE, Zenith carburetor to fuel strainer. LE301843 +. See O1711AB (YR. 1935)

1шт.

O4905AB

X

STRAINER, fuel (YR. 1939)

1шт.

PLUG, 1/8" pipe, square head

1шт.

O10909A

X

CAP, filler, fuel tank (YR. 1929)

2шт.

A1AA

TANK, fuel (YR. 1929)

1шт.

148AA

STRAP, fuel tank, with bolts (YR. 1929)

2шт.

NUT, 5/16" hexagon, N.C. thread

4шт.

764AA

SUPPORT, fuel tank rear. See 2296AA (YR. 29-35)

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

1402AA

SUPPORT, fuel tank, front. See 2296AA (YR. 35-39)

1шт.

BOLT, 5/16" x 3/4" machine, N.C. thread

4шт.

BOLT, 3/8" x 3/4" machine, N.C. thread

2шт.

WASHER, 5/16" standard lock

4шт.

WASHER, 3/8" standard lock

2шт.

2296AA

SUPPORT, fuel tank, front and rear. See 764AA and 1402AA (YR. 1940)

1шт.

BOLT, 5/8" x 2-1/2" machine, N.C. thread

2шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

2шт.

WASHER, 1/2" standard lock

2шт.

Выбрано товаров: 32
