Запчасти Case IH LE (44) - FUEL REGULATOR FOR O5666AB AND O7913AB CARBURETOR

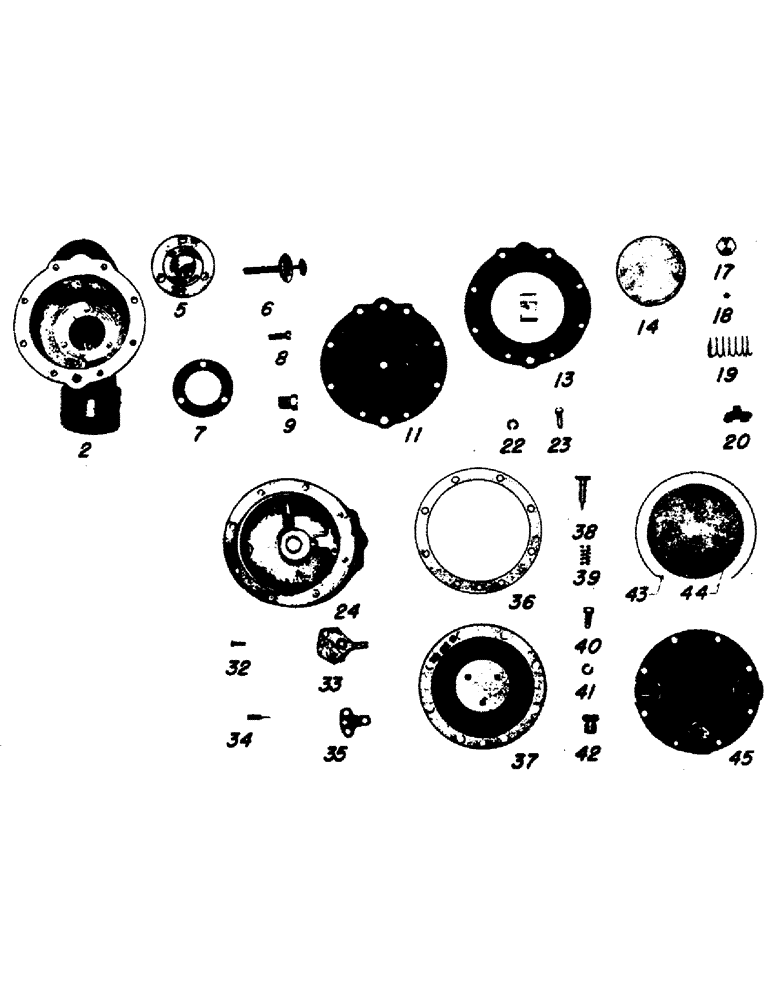

Схема запчастей Case IH LE - (44) - FUEL REGULATOR FOR O5666AB AND O7913AB CARBURETOR

Артикул

Название

Примечание

Количество

2

4791

NUT,5/8"-18, G8

BODY

1шт.

5

268-12

SEAT, valve

1шт.

6

4835

SHAFT

VALVE ASSEMBLY

1шт.

7

3-243

GASKET, valve seat

1шт.

8

821-9

SCREW, valve seat

3шт.

9

5145

RIVET

PLUG

1шт.

11

3-256

DIAPHRAGM, lower (Leather)

1шт.

13

4836

THREADED TIE-ROD

DIAPHRAGM, lower, assembly

1шт.

14

3-252

PLATE, lower diaphragm

2шт.

17

6465

NUT, diaphragm screw

1шт.

18

4759

LEVER

SCREEN, diaphragm by-pass

1шт.

19

3-258

SPRING, diaphragm

1шт.

20

4754

TOY

SCREW, diaphragm

1шт.

22

284

TOY

WASHER, lock, bowl screw

8шт.

23

821-8

HOSE

SCREW, bowl

8шт.

24

6463

BOWL, partial assembly

1шт.

32

771-6

SCREW, pilot, Serial Range: valve-bowl

3шт.

33

4793

SPRING COMPRESSOR

VALVE, pilot, assembly

1шт.

34

4800

CABLE TIE,11"

ROD, push, valve lever

1шт.

35

4795

GASKET, pilot valve

1шт.

36

5546

LEVER

GASKET, cover

2шт.

37

5712

DIAPHRAGM, upper, assembly

1шт.

38

5041

SCREW, idle adjusting

1шт.

39

6190

ELBOW

SPRING, adjusting retainer

1шт.

40

821-8

HOSE

SCREW, cover

8шт.

41

284

TOY

WASHER, lock, cover screw

8шт.

42

5145

RIVET

PLUG

1шт.

43

4798

CHAIN

WIRE, partition plate locking

1шт.

44

4616

SEAL KIT

PLATE, partition

1шт.

45

6492

ROLLER BEARING

COVER, bowl, partial assembly

1шт.

Выбрано товаров: 30
