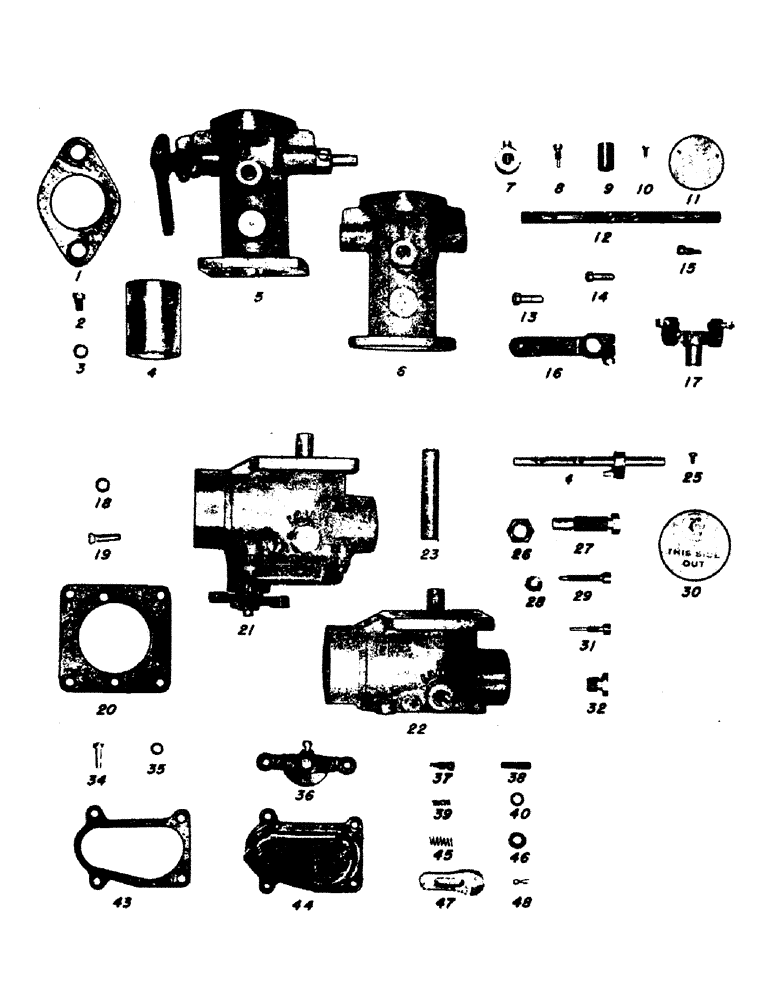

Запчасти Case IH LE (42) - PARTS FOR O7913AB ENSIGN CARBURETOR, THROTTLE TUBE PARTS
№
Артикул
Название
Примечание
Количество
1
3505
FILTER, ENGINE OIL
GASKET, carburetor manifold
1шт.
2
831-5
SCREW, Venturi set
1шт.
3
A215
WASHER, lock, Venturi set screw
1шт.
4
4590-34
VENTURI (Bore must be specified)
1шт.
5
5797
SNAP RING
TUBE, throttle, complete assembly
1шт.
6
5377
TUBE, throttle, partial assembly
1шт.
7
4K682
COLLAR, throttle shaft, assembly
1шт.
8
5B210
SCREW "B" SET
1шт.
9
B176B
BUSHING, throttle bearing
2шт.
10
6732
SCREW, throttle shaft
2шт.
11
5K9E
DISC, throttle
1шт.
12
4830
TOY
SHAFT, throttle
1шт.
13
831-10
HOSE
SCREW, clamp
1шт.
14
2-70
KEY
SCREW, throttle stop adjusting
2шт.
15
5B210
SCREW, "B" set, throttle shaft
1шт.
16
7-603Y1
LEVER, throttle, assembly
1шт.
17
4K644
STOP, throttle, assembly
1шт.
18
A215
WASHER, lock, air horn screw
4шт.
19
831-11
SCREW, air horn
4шт.
20
5K411
GASKET, air horn
1шт.
21
5795
AIR HORN ASSEMBLY
1шт.
22
5963
X
AIR HORN, nozzle and balance tube nozzle assembly
1шт.
23
4653
GUARD
NOZZLE
1шт.
24
5859
SHAFT, choke, with cam lever assembly
1шт.
25
6731
SCREW, choke shaft
2шт.
26
4510
SWITCH
NUT, lock, fuel adjusting screw
1шт.
27
5C64G
SCREW, fuel adjusting
1шт.
28
5005
NUT, lock, starting adjusting screw
1шт.
29
5004
COVER
SCREW, starting adjusting
1шт.
30
6391
WASHER,1 1/4" x 1 3/4"x .033"
DISC, choke (Spring loaded)
1шт.
31
6523
PTO
PLUG, starting adjusting screw
1шт.
32
6525
YOKE
PLUG, fuel adjusting screw
1шт.
34
821-8
HOSE
SCREW, cover plate
4шт.
35
225F
WASHER, lock, cover plate screw
4шт.
36
5282
DECAL
LEVER, double ended choke, with set screw
1шт.
37
5B210
SCREW, set, choke lever
1шт.
38
7C596G
PIVOT, valve lever
1шт.
39
5034
SPRING, latching
1шт.
40
4848
THREADED TIE-ROD
WASHER, spring retaining
2шт.
43
5C406G
GASKET, cover plate
1шт.
44
5C356G
PLATE, cover
1шт.
45
7C598G
SPRING, pressure
1шт.
46
4896
PIN
WASHER, dust, choke
1шт.
47
5183
LEVER, valve
1шт.
48
5346
HANDLE
PIN, cotter
1шт.
Выбрано товаров: 45
