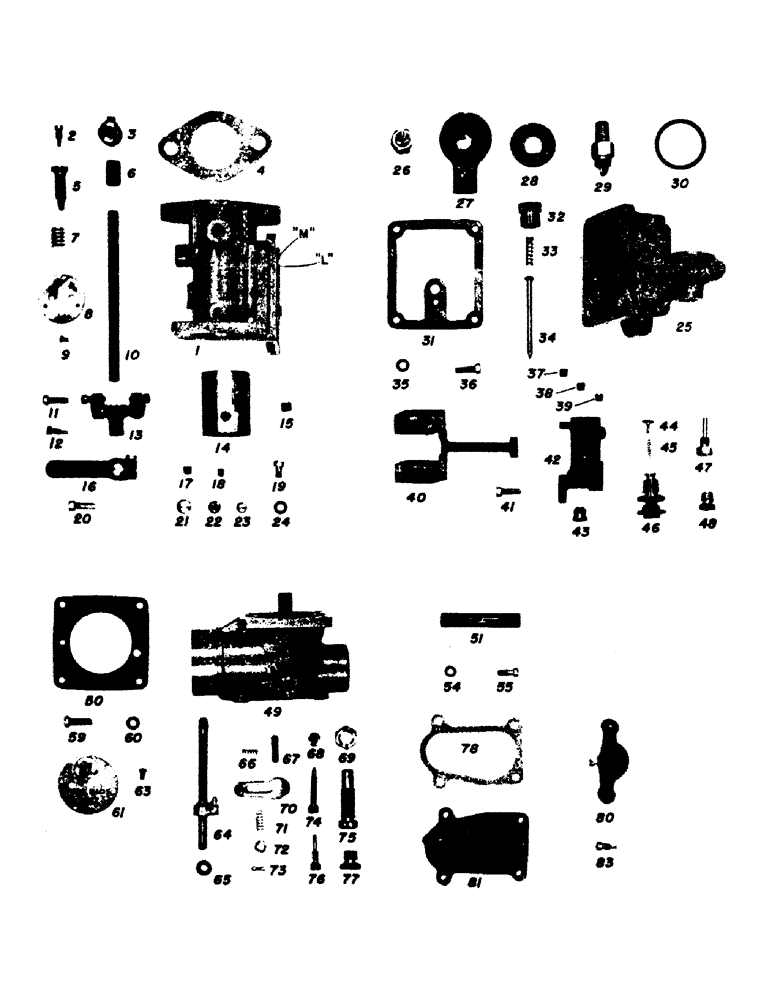

Запчасти Case IH LE (40) - PARTS FOR O5666AB ENSIGN CARBURETOR

1

7207

TUBE, throttle - partial assembly

1шт.

5971

BOLT,Hex, 1" - 8 x 6 3/8", Gr 5

TUBE, throttle - complete assembly (Not shown)

1шт.

2

5B210

SCREW, "B" set

1шт.

3

K682

COLLAR, throttle shaft, assembly

1шт.

4

3505

FILTER, ENGINE OIL

GASKET, carburetor manifold

1шт.

5

387C

SCREW, idle adjusting

1шт.

6

B176B

BUSHING, throttle bearing

2шт.

7

222F

SPRING, idle adjusting retainer

1шт.

8

5K9E

DISC, throttle

1шт.

9

6732

SCREW, throttle shaft

2шт.

10

4830

TOY

SHAFT, throttle

1шт.

11

2-70

KEY

SCREW, throttle stop adjusting

2шт.

12

5B210

SCREW, "B" set, throttle shaft

1шт.

13

4K644

STOP, throttle, assembly

1шт.

14

4786-34

VENTURI ASSEMBLY (Bore must be specified)

1шт.

15

K305

BUSHING, nozzle passage

1шт.

16

7-603Y1

LEVER, throttle, assembly

1шт.

17

3L70

SCREW, "L" bleed

1шт.

18

4M43

SCREW, "M" bleed

1шт.

19

831-5

SCREW, venturi set

1шт.

20

831-10

HOSE

SCREW, clamp

1шт.

21

304

PLUG, 3/8" Welch

1шт.

22

385

TOOTH

PLUG, 1/4" Welch

5шт.

23

302

PLUG, 3/16" Welch

3шт.

24

A215

WASHER, lock, venturi set screw

1шт.

25

K37C

BOWL, fuel

1шт.

5197

BOWL, fuel, assembly (Not shown)

1шт.

26

4-44

LARGE PLATE

NUT, strainer cage

1шт.

27

5A627E

CAGE, strainer, assembly

1шт.

28

4-39

SCREEN, strainer cage

1шт.

29

5A647E

VALVE, float, assembly

1шт.

30

4-24

GASKET, strainer cage

1шт.

31

5K412

GASKET, fuel bowl

1шт.

32

4A64E

SCREW, fuel adjusting

1шт.

33

A198

SPRING, needle valve

1шт.

34

K199

VALVE, needle

1шт.

35

A215

WASHER, lock, fuel bowl screw

4шт.

36

831-10

HOSE

SCREW, fuel bowl

4шт.

37

4-220

PLUG, screw

2шт.

38

4W60

SCREW, "W" bleed

1шт.

39

4SW55

SCREW, "SW" bleed

1шт.

40

5A646E

FLOAT, cork, assembly

1шт.

41

831-10

HOSE

SCREW, fuel, Serial Range: control-bowl

1шт.

42

K46Y

CONTROL, fuel

1шт.

K5610Y

CONTROL, fuel, assembly (37-38-39-42-43-not shown)

1шт.

43

35K191

ORIFICE, fuel

1шт.

44

K150

CAP, float control spring

1шт.

45

K149

SPRING, float control

1шт.

46

5394

HYDRAULIC CYLINDER

BODY, float control, assembly

1шт.

K731

CONTROL, float, assembly (44-45-46 not shown)

1шт.

47

4-30

PIVOT, float lever

1шт.

48

5145

RIVET

PLUG, fuel bowl drain

1шт.

49

5963

X

AIR HORN, nozzle and balance tube nozzle assembly

1шт.

5795

AIR HORN, assembly (Not shown)

1шт.

50

5K411

GASKET, air horn

1шт.

51

4653

GUARD

NOZZLE

1шт.

54

225F

WASHER, lock, cover plate screw

4шт.

55

821-8

HOSE

SCREW, cover plate screw

4шт.

59

831-11

SCREW, air horn

4шт.

60

A215

WASHER, lock, air horn screw

4шт.

61

6391

WASHER,1 1/4" x 1 3/4"x .033"

DISC, choke (Spring loaded)

1шт.

63

6731

SCREW, choke shaft

2шт.

64

5859

SHAFT, choke, with cam lever assembly

1шт.

65

4896

PIN

WASHER, dust, choke

1шт.

66

5034

SPRING, latching

1шт.

67

7C596G

PIVOT, valve lever

1шт.

68

5005

NUT, lock, starting adjusting screw

1шт.

69

4510

SWITCH

NUT, lock, fuel adjusting screw

1шт.

70

5183

LEVER, valve

1шт.

71

7C598G

SPRING, pressure

1шт.

72

4848

THREADED TIE-ROD

WASHER, spring retainer

2шт.

73

5346

HANDLE

PIN, cotter

1шт.

74

5004

COVER

SCREW, starting adjusting

1шт.

75

5C64G

SCREW, fuel adjusting

1шт.

76

6523

PTO

PLUG, screw, starting adjusting screw

1шт.

77

6525

YOKE

PLUG, screw, fuel adjusting

1шт.

78

5C406G

GASKET, cover plate

1шт.

80

5282

DECAL

LEVER, double ended choke, with set screw

1шт.

81

5C356G

PLATE, cover

1шт.

83

5B210

SCREW, "B" set

1шт.
