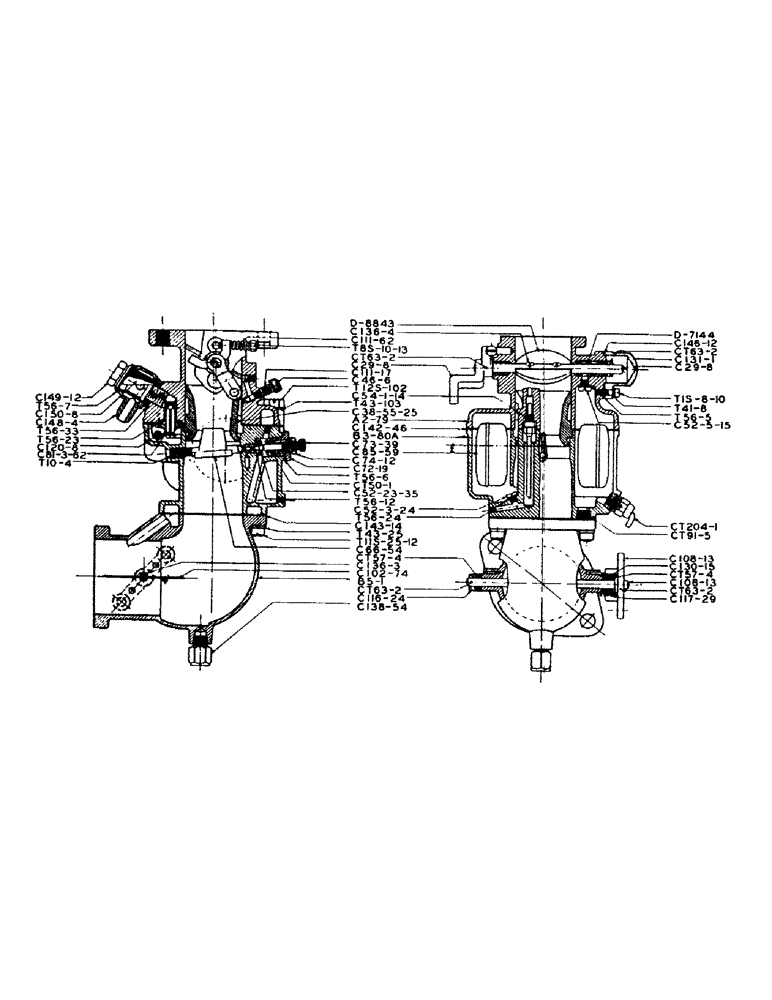

Запчасти Case IH LE (37) - O1709AB2 ZENITH CARBURETOR, MODEL K6A, OUTLINE NUMBER O6799

A2-79

BODY, throttle, assembly (O1709AB2 Carburetor, 35-38)

1шт.

A2-79-1

BODY, throttle, assembly (O4669AB Carburetor, 1938)

1шт.

B3-80A

BODY, fuel (O1709AB2 Carburetor, 35-38)

1шт.

B3-80A

BODY, fuel (O4669AB Carburetor, 1938)

1шт.

B5-1

INTAKE, air, assembly (O1709AB2 Carburetor, 35-38)

1шт.

B5-1

INTAKE, air, assembly (O4669AB Carburetor, 1938)

1шт.

C29-8

SHAFT AND LEVER, throttle (O1709AB2 Carburetor, 35-38)

1шт.

C29-8

SHAFT AND LEVER, throttle (O4669AB Carburetor, 1938)

1шт.

C38-55-25

VENTURI (O1709AB2 Carburetor, 35-38)

1шт.

C38-55-25

VENTURI (O4669AB Carburetor, 1938)

1шт.

C46-6

SCREW, idle adjusting (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

C46-6

SCREW, idle adjusting (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

C52-3-24

JET, compensating - for gasoline and low cost fuel (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

C52-3-24

JET, compensating - for gasoline and low cost fuel (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

C52-3-30

JET, compensating - for alcohol only (O1709AB2 Carburetor, 35-38)

1шт.

C52-3-30

JET, compensating - for alcohol only (O4669AB Carburetor, 1938)

1шт.

C52-5-15

JET, economizer (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

C52-5-15

JET, economizer (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

C52-23-35

JET, main - for gasoline and low cost fuel (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

C52-23-38

JET, main - for gasoline and low cost fuel (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

C52-23-40

JET, main - for alcohol only (O1709AB2 Carburetor, 35-38)

1шт.

C52-23-40

JET, main - for alcohol only (O4669AB Carburetor, 1938)

1шт.

C54-1-14

JET, idling (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

C54-1-14

JET, idling (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

C66-54

NOZZLE, discharge (O1709AB2 Carburetor, 35-38)

1шт.

C66-54

NOZZLE, discharge (O4669AB Carburetor, 1938)

1шт.

C71-31

ADJUSTMENT, main jet, Consists of 1-C73-39 adjusting needle - 1-CT50-1 packing 1-C74-12 packing nut - 1-C72-19 packing retainer nut (O1709AB2 Carburetor, 35-38)

1шт.

C71-31

ADJUSTMENT, main jet, Consists of 1-C73-39 adjusting needle - 1-CT50-1 packing 1-C74-12 packing nut - 1-C72-19 packing retainer nut (O4669AB Carburetor, 1938)

1шт.

C81-3-62

VALVE, fuel, assembly (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

C81-3-62

VALVE, fuel, assembly (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

C85-59

FLOAT, assembly (O1709AB2 Carburetor, 35-38)

1шт.

C85-59

FLOAT, assembly (O4669AB Carburetor, 1938)

1шт.

C102-74

PLATE, air shutter (O1709AB2 Carburetor, 35-38)

1шт.

C102-74

PLATE, air shutter (O4669AB Carburetor, 1938)

1шт.

C108-13

SHAFT AND LEVER, air intake shutter (O1709AB2 Carburetor, 35-38)

1шт.

C108-47

SHAFT AND LEVER, air intake shutter (O4669AB Carburetor, 1938)

1шт.

C111-17

SPRING, idle adjusting screw (O1709AB2 Carburetor, 35-38)

1шт.

C111-17

SPRING, idle adjusting screw (O4669AB Carburetor, 1938)

1шт.

C111-62

SPRING, throttle lever stop screw (O1709AB2 Carburetor, 35-38)

1шт.

C111-62

SPRING, throttle lever stop screw (O4669AB Carburetor, 1938)

1шт.

C116-24

CAP, packing (O1709AB2 Carburetor, 35-38)

1шт.

C116-24

CAP, packing (O4669AB Carburetor, 1938)

1шт.

C117-29

SPRING, air shutter return (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

C117-29

SPRING, air shutter return (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

C120-8

AXLE, float (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

C120-8

AXLE, float (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

C130-15

RETAINER, air shutter shaft packing (O1709AB2 Carburetor, 35-38)

1шт.

C130-15

RETAINER, air shutter shaft packing (O4669AB Carburetor, 138)

1шт.

C131-1

CAP, economizer valve (O1709AB2 Carburetor, 35-38)

1шт.

C131-1

CAP, economizer valve (O4669AB Carburetor, 1938)

1шт.

C136-3

SCREW, air shutter (O1709AB2 Carburetor, 35-38)

2шт.

C136-3

SCREW, air shutter (O4669AB Carburetor, 1938)

2шт.

C136-4

SCREW, choke rod and throttle plate (O1709AB2 Carburetor, 35-38)

4шт.

Part of Service Parts Kit P/N K622

1шт.

C136-4

SCREW, choke rod and throttle plate (O4669AB Carburetor, 1938)

4шт.

Part of Service Parts Kit P/N K623

1шт.

C137-29

PLUG, nozzle screw seal (O4669AB Carburetor, 1938)

1шт.

C138-54

PLUG, drip, assembly (O1709AB2 Carburetor, 35-38)

1шт.

C141-4-2

GASKET, flange. Use O1859AB

1шт.

Part of Service Parts Kit P/N's K622 or K623

1шт.

C142-46

GASKET, bowl to body (O1709AB2 Carburetor, 35-38)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K622

1шт.

C142-46

GASKET, bowl to body (O4669AB Carburetor, 1938)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K623

1шт.

C143-14

GASKET, bowl to air intake assembly (O1709AB2 Carburetor, 35-38)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K622

1шт.

C143-14

GASKET, bowl to air intake assembly (O4669AB Carburetor, 1938)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K623

1шт.

C146-12

GASKET, economizer cap (O1709AB2 Carburetor, 35-38)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K622

1шт.

C146-12

GASKET, economizer cap (O4669AB Carburetor, 1938)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K623

1шт.

C148-4

BODY, union (O1709AB2 Carburetor, 35-38)

1шт.

C148-4

BODY, union (O4669AB Carburetor, 1938)

1шт.

C149-12

PLUG, filter or union body (O1709AB2 Carburetor, 35-38)

1шт.

C149-12

PLUG, filter or union body (O4669AB Carburetor, 1938)

1шт.

C150-8

SCREEN, filter (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

C150-8

SCREEN, filter (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

CR9-16

BUSHING, throttle shaft (O4669AB Carburetor, 1938)

1шт.

CR78-7

PLUG, priming hole (O1709AB2 Carburetor, 35-38)

1шт.

CR88-3

BRACKET, float (O4669AB Carburetor, 1938)

1шт.

CT57-4

WASHER, packing, air shutter shaft (O1709AB2 Carburetor, 35-38)

2шт.

Part of Service Parts Kit P/N K622

1шт.

CT57-4

WASHER, packing, air shutter shaft (O4669AB Carburetor, 1938)

2шт.

Part of Service Parts Kit P/N K623

1шт.

CT57-11

PACKING, drain (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

CT57-11

PACKING, drain (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

CT57-21

PACKING, drain (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

CT57-21

PACKING, drain (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

CT63-2

PIN, shutter and throttle shaft taper (O1709AB2 Carburetor, 35-38)

2шт.

CT63-2

PIN, shutter and throttle shaft taper (O4669AB Carburetor, 1938)

2шт.

CT91-5

PLUG, pipe (O1709AB2 Carburetor, 35-38)

1шт.

CT93B-50

PLUG, drain (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

CT93B-50

PLUG, drain (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

CT93B-51

PLUG, drain, Welch (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

CT93B-51

PLUG, drain, Welch (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

CT204-1

PLUG, drain, assembly, for fuel bowl (O1709AB2 Carburetor, 35-38)

1шт.

CT204-1

PLUG, drain, assembly, for fuel bowl (O4669AB Carburetor, 1938)

1шт.

D7144

VALVE, economizer (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

D7144

VALVE, economizer (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

D8843

PLATE, throttle (O1709AB2 Carburetor, 35-38)

1шт.

D8843

PLATE, throttle (O4669AB Carburetor, 1938)

1шт.

T10-4

SCREW, nozzle set (O1709AB2 Carburetor, 35-38)

1шт.

T10-4

SCREW, nozzle set (O4669AB Carburetor, 1938)

1шт.

T41-8

WASHER, lock, economizer cap screw (O1709AB2 Carburetor, 35-38)

3шт.

Part of Service Parts Kit P/N K622

1шт.

T41-8

WASHER, lock, economizer cap screw (O4669AB Carburetor, 1938)

3шт.

Part of Service Parts Kit P/N K623

1шт.

T43-25

WASHER, lock, intake assembly screw (O1709AB2 Carburetor, 35-38)

4шт.

T43-25

WASHER, lock, intake assembly screw (O4669AB Carburetor, 1938)

4шт.

T43-31

WASHER, lock, bowl to body screw (O4669AB Carburetor, 1938)

4шт.

T43-103

WASHER, lock, bowl to body screw (O1709AB2 Carburetor, 35-38)

4шт.

T56-5

WASHER, fibre, economizer jet (O1709AB2 Carburetor, 35-38)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K622

1шт.

T56-5

WASHER, fibre, economizer jet (O4669AB Carburetor, 1938)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K623

1шт.

T56-6

WASHER, fibre, main jet adjustment (O1709AB2 Carburetor, 35-38)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K622

1шт.

T56-6

WASHER, fibre, main jet adjustment (O4669AB Carburetor, 1938)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K623

1шт.

T56-7

WASHER, fibre, filter plug (O1709AB2 Carburetor, 35-38)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K622

1шт.

T56-7

WASHER, fibre, filter plug (O4669AB Carburetor, 1938)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K623

1шт.

T56-12

WASHER, fibre, main jet (O1709AB2 Carburetor, 35-38)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K622

1шт.

T56-12

WASHER, fibre, main jet (O4669AB Carburetor, 1938)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K623

1шт.

T56-23

WASHER, fibre, fuel valve seat (O1709AB2 Carburetor, 35-38)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K622

1шт.

T56-23

WASHER, fibre, fuel valve seat (O4669AB Carburetor, 1938)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K623

1шт.

T56-24

WASHER, fibre, compensating jet (O1709AB2 Carburetor, 35-38)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K622

1шт.

T56-24

WASHER, fibre, compensating jet (O4669AB Carburetor, 1938)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K623

1шт.

T56-33

WASHER, fibre, union body (O1709AB2 Carburetor, 35-38)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K622

1шт.

T56-33

WASHER, fibre, union body (O4669AB Carburetor, 1938)

1шт.

Part of Gasket Set P/N C181-4

1шт.

Part of Service Parts Kit P/N K623

1шт.

T56-36

WASHER, fibre, throttle stop (O1709AB2 Carburetor, 35-38)

1шт.

Part of Service Parts Kit P/N K622

1шт.

T56-36

WASHER, fibre, throttle stop (O4669AB Carburetor, 1938)

1шт.

Part of Service Parts Kit P/N K623

1шт.

T73-15

PIN, fastening float bracket (O4669AB Carburetor, 1938)

2шт.

T1S8-5

SCREW, economizer cap assembly (O1709AB2 Carburetor, 35-38)

3шт.

Part of Service Parts Kit P/N K622

1шт.

T1S8-5

SCREW, economizer cap assembly (O4669AB Carburetor, 1938)

3шт.

Part of Service Parts Kit P/N K623

1шт.

T1S8-10

SCREW, housing cover (O1709AB2 Carburetor, 35-38)

2шт.

Part of Service Parts Kit P/N K622

1шт.

T1S8-10

SCREW, housing cover (O4669AB Carburetor, 1938)

2шт.

Part of Service Parts Kit P/N K623

1шт.

T8S10-9

SCREW, clamp lever clamp (O1709AB2 Carburetor, 35-38)

1шт.

T8S10-13

SCREW, throttle stop (O1709AB2 Carburetor, 35-38)

1шт.

T8S10-13

SCREW, throttle stop (O4669AB Carburetor, 1938)

1шт.

T11S25-12

SCREW, intake to bowl assembly (O1709AB2 Carburetor, 35-38)

4шт.

T11S25-12

SCREW, intake to bowl assembly (O4669AB Carburetor, 1938)

4шт.

T12S-102

SCREW, bowl to body assembly (O1709AB2 Carburetor, 35-38)

4шт.

T12S-102

SCREW, bowl to body assembly (O4669AB Carburetor, 1938)

4шт.

C181-4

GASKET SET. (O1709AB2 Carburetor, 35-38) Includes: P/N's C142-46, C143-14, C146-12, T56-5, T56-6, T56-7, T56-12, T56-23, T56-24 and T56-33

1шт.

C181-4

GASKET SET. (O4669AB Carburetor, 1938) Includes: P/N's C142-46, C143-14, C146-12, T56-5, T56-6, T56-7, T56-12, T56-23, T56-24 and T56-33

1шт.

K622

KIT, service parts. See note (O1709AB2 Carburetor, 35-38)

1шт.

Includes: P/N's C46-6, C52-3-24, C52-5-15, C52-23-35, C54-1-14, C81-3-62, C117-29, C120-8, C136-4, C142-46, C143-14, C146-12, C150-8, CT57-4, CT57-11, CT57-21, CT93B-50, CT93B-51, D7144, T41-8, T56-5, T56-6, T56-7, T56-12, T56-23, T56-24, T56-33, T56-36, T1S8-5, T1S8-10 and C141-4-2

1шт.

K623

KIT, service parts. See note (O4669AB Carburetor, 1938)

1шт.

Includes: P/N's C46-6, C52-3-24, C52-5-15, C52-23-38, C54-1-14, C81-3-62, C117-29, C120-8, C136-4, C142-46, C143-14, C146-12, C150-8, CT57-4, CT57-11, CT57-21, CT93B-50, CT93B-51, D7144, T41-8, T56-5, T56-6, T56-7, T56-12, T56-23, T56-24, T56-33, T56-36, T1S8-5, T1S8-10 and C141-4-2

1шт.

O1707AB1

ROD, choke, LE301843+ (O1709AB2 Carburetor, 35-38)

1шт.

O1707AB1

ROD, choke, LE301843+ (O4669AB Carburetor, 1935)

1шт.

PIN, 1/16" x 3/8" cotter

1шт.

O1859AB

X

GASKET, carburetor to manifold (O1709AB2 Carburetor, 35-38)

1шт.

O1859AB

X

GASKET, carburetor to manifold (O4669AB Carburetor, 1938)

1шт.
