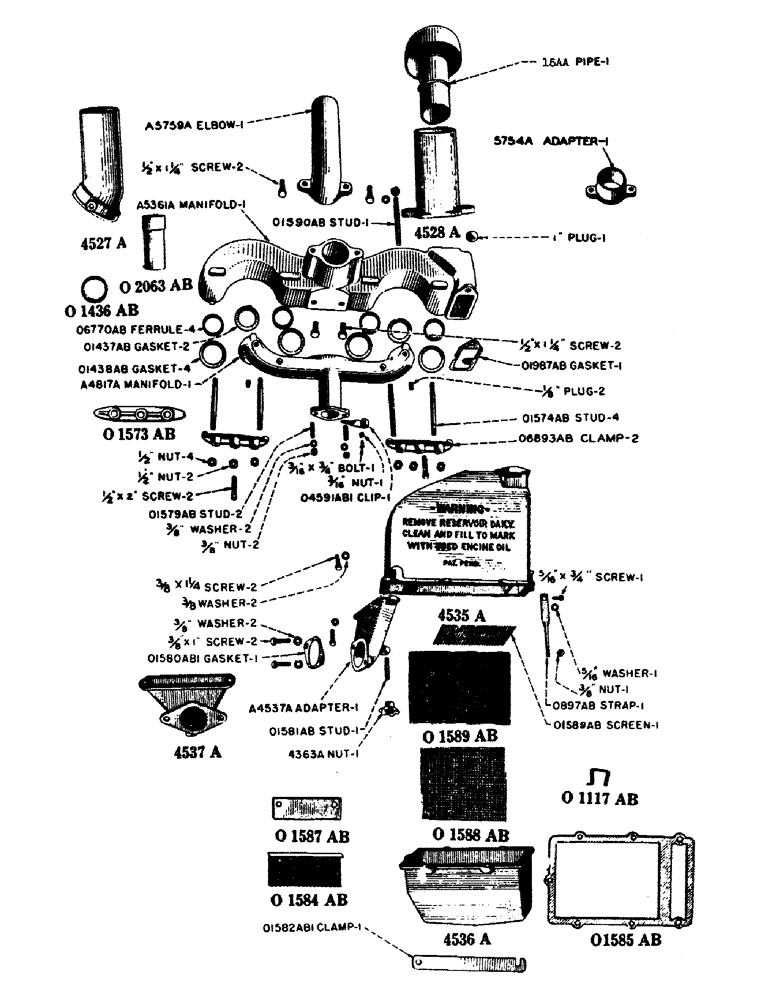

Запчасти Case IH LE (28) - GASOLINE MANIFOLD AND AIR CLEANER, GASOLINE MANIFOLD

4527A

ELBOW, exhaust for 5361A manifold. See 5760A and 5754A

1шт.

SCREW, 3/8" x 1" cup point set, N.C. thread

2шт.

NUT, 3/8" hexagon, N.C. thread

2шт.

4537A

ADAPTER, carburetor. Used with Kingston carburetor. LE301844 -. (YR. 29-35)

1шт.

SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread

2шт.

BOLT, 3/8" x 1-1/2" machine, with hexagon nut, N.C. thread

2шт.

WASHER, 3/8" standard lock

2шт.

A4537A

ADAPTER, carburetor. Used with Zenith carburetor. LE301843 + (YR. 1935)

1шт.

SCREW. 3/8" x 1-1/4" hexagon head cap, N.C. thread

2шт.

WASHER, 3/8" standard lock

2шт.

A4817A

MANIFOLD, inlet, gasoline (YR. 1938)

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

2шт.

PLUG, 1/8" pipe, square head

2шт.

5361A

MANIFOLD, exhaust - gasoline. Use 2741AA

1шт.

A5361A

MANIFOLD, exhaust - gasoline. Use 2741AA

1шт.

5754A

ADAPTER, exhaust elbow. Used with A5361A manifold when using 4527A elbow

1шт.

5759A

ELBOW, exhaust, use 5760A

1шт.

A5759A

ELBOW, exhaust, for A5361A manifold. Use 5760A

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

2шт.

5760A

ELBOW, exhaust, for A5361A manifold. See 4527A (YR. 1929)

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap N.C. thread

2шт.

O1436AB

FERRULE, exhaust part. For 5361A manifold. See O6770AB

4шт.

O1437AB

GASKET, intake port (YR. 1929)

2шт.

O1438AB

GASKET

exhaust port (YR. 1929)

4шт.

O1573AB

CLAMP, for 5361A manifold. See O6893AB

2шт.

SCREW, 1/2" x 2" cup point set, N.C. thread

2шт.

NUT, 1/2" hexagon, jam, N.C. thread

2шт.

O1574AB

STUD, inlet and exhaust manifold (YR. 1929)

4шт.

NUT, 1/2" hexagon, ligt, N.C. thread

4шт.

O1579AB

STUD, carburetor to intake manifold (YR. 1929)

2шт.

NUT, 3/8" hexagon, light, N.F. thread

2шт.

WASHER, 3/8" standard lock

2шт.

O1580AB

GASKET, for 4537A carburetor adapter. LE301844 - (YR. 29-35)

1шт.

O1580AB1

X

GASKET, for A4537A carburetor adapter. LE301843 + (YR. 1935)

1шт.

O2063AB

VENTURI, inlet manifold (YR. 1929)

2шт.

O6770AB

X

FERRULE, exhaust port. For A5361A manifold

4шт.

O6893AB

CLAMP, manifold, used with A5361A manifold. See O1573AB (YR. 1941)

2шт.

SCREW, 1/2" x 2" cup point set, N.C. thread

2шт.

NUT, 1/2" hexagon, jam, N.C. thread

2шт.

1878AA

GASOLINE, manifolds, inlet and exhaust, to change from low cost fuel to gasoline (YR. 1929), Consists of: 1 - A4817A inlet manifold, 1 - 2741AA exhaust manifold, 2 - 1/2" x 1-1/4" hex. hd. cap screw, N.C. thread

1шт.

2741AA

MANIFOLD, exhaust - gasoline, Consists of: 1 - A5361A manifold, 1 - 5754A adpater, 4 - O6770AB ferrule, 2-1/2" x 1-1/4" capscrew N.C. thread

1шт.

4363A

NUT, air cleaner clamp (YR. 1929)

1шт.

4528A

FLANGE, air intake pipe (YR. 1929)

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

1шт.

4535A

BODY, air cleaner (YR. 1929)

1шт.

BOLT, 1/2" x 1-3/4" machine, with hexagon nut, N.C. thread

1шт.

WASHER, 1/2" standard lock

1шт.

4536A

RESERVOIR, air cleaner (YR. 1929)

1шт.

O897AB

STRAP, air cleaner clamp (YR. 1929)

1шт.

SCREW, 5/16" x 3/4" hexagon head cap, N.C. thread

1шт.

WASHER, 5/16" standard lock

1шт.

NUT, 3/8" hexagon N.C. thread

1шт.

O1117AB

SUPPORT, lower screen (YR. 1929)

2шт.

SCREW, no. 10-32 x 1-1/4" round head machine, N.C. thread

2шт.

NUT, no. 10 hexagon, N.C. thread

2шт.

O1581AB

STUD, air cleaner clamp (YR. 1929)

1шт.

O1582AB

CLAMP, air cleaner, LE301844 - (YR. 29-35)

1шт.

O1582AB1

CLAMP, air cleaner, LE301843 + (YR. 1935)

1шт.

O1584AB

SCREEN, air cleaner reservoir (YR. 1929)

1шт.

SCREW, 1/4" - 20 x 5/8" round head machine, N.C. thread

2шт.

NUT, 1/4" - 20 hexagon, N.C. thread

2шт.

WASHER, 1/4" standard lock

2шт.

O1585AB

GASKET, oil reservoir (YR. 1929)

1шт.

O1586AB

REINFORCEMENT, oil reservoir, gasket (YR. 1929)

1шт.

SCREW, 1/4" - 28 x 3/8" fillister head machine

5шт.

O1587AB

SUPPORT, air cleaner screen (YR. 1929)

1шт.

BOLT, 1/4" x 1-3/4" machine, with square nut, N.C. thread

2шт.

WASHER, 1/4" standard lock

2шт.

O1588AB

SCREEN, air cleaner lower (YR. 1929)

1шт.

O1589AB

SCREEN, air cleaner upper (YR. 1929)

13шт.

O1590AB

STUD, air intake flange (YR. 1929)

1шт.

NUT, 1/2" hexagon, N.F. thread

1шт.

WASHER, 1/2" standard lock

1шт.

O1987AB

GASKET

air cleaner body (YR. 1929)

1шт.

15AA

PIPE, air intake (YR. 1929)

1шт.

76AA

AIR CLEANER (YR. 1929)

1шт.
