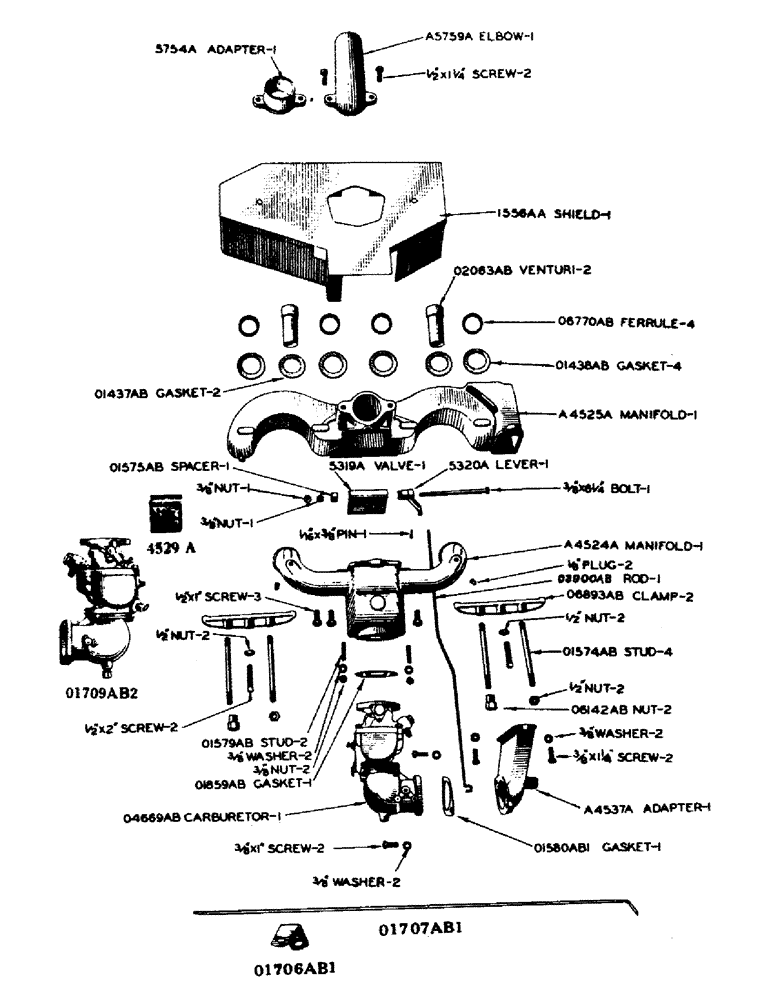

Запчасти Case IH LE (23) - MANIFOLD AND CARBURETOR, LOW COST FUEL, ENGINE NUMBER LE301844 AND AFTER

4524A

MANIFOLD, inlet. Use 416AA

1шт.

A4524A

MANIFOLD, inlet, used with Zenith carburetor. See 416AA (YR. 1935)

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

3шт.

PLUG, 1/8" pipe, square head

2шт.

4525A

MANIFOLD, exhaust. Use 2740AA

1шт.

A4525A

MANIFOLD, exhaust. Use 2740AA

1шт.

4526A

VENTURI, inlet manifold. Use O2063AB

1шт.

4527A

ELBOW, exhaust, for 4525A manifold. See 5754A and 5760A

1шт.

SCREW, 3/8" x 1" cup point set, N.C. thread

2шт.

NUT, 3/8" hexagon, N.C. thread

2шт.

4529A

LEVER, heat regulator. Use 5319A (YR. 29-37)

1шт.

4530A

LEVER, heat regulator. See 5320A (YR. 29-36)

1шт.

BOLT, 3/8" x 6-1/4" machine, with hexagon nt, N.C. thread

1шт.

NUT, 3/8" hexagon, N.C. thread

1шт.

SCREW, 3/8" x 1-1/2" cup point set

1шт.

4534A

BUSHING FOR 4524A MANIFOLD, for throttle valve shaft (YR. 29-35)

2шт.

5051A

DISC, for 5320A heat regulator

1шт.

5319A

VALVE, heat regulator. See 4529A (YR. 1938)

1шт.

5320A

LEVER, heat regulator. Engine no. 4200000 and after. See 4530A (YR. 1938)

1шт.

BOLT, 3/8" x 6-1/4" machine, N.C. thread

1шт.

NUT, 3/8" hexagon, N.C. thread

1шт.

NUT, 3/8" hexagon, jam, N.C. thread

1шт.

5754A

ADAPTER, exhaust elbow. Used with A4525A manifold when using 4527A elbow

1шт.

5759A

ELBOW, exhaust. Use 5760A

1шт.

A5759A

ELBOW, exhaust, for A4525A manifold. Use 5760A

1шт.

SCREW, 1/2" x 1-1/4' hexagon head cap, N.C. thread

2шт.

5760A

ELBOW, exhaust, for A4525A exhaust manifold. See 4527A (YR. 1929)

1шт.

SCREW, 1/2" x 1-1/4" hexagon head cap, N.C. thread

2шт.

O1436AB

FERRULE, exhaust port. For 4525A manifold. See O6770AB

4шт.

O1437AB

GASKET, intake port (YR. 1929)

2шт.

O1438AB

GASKET

exhaust port (YR. 1929)

4шт.

O1573AB

CLAMP, for 4525A manifold. See O6893AB

2шт.

SCREW, 1/2" x 2" cup point set, N.C. thread

2шт.

NUT, 1/2" hexagon, jam, N.C. thread

2шт.

O1574AB

STUD, inlet and exhaust port (YR. 1929)

4шт.

NUT, 1/2" hexagon, light, N.C. thread

4шт.

O1575AB

SPACER, heater valve (YR. 1929)

1шт.

O1576AB

GASKET, between intake and exhaust manifold (YR. 1929)

1шт.

O2063AB

VENTURI, inlet manifold (YR. 1929)

2шт.

O2147AB

PLATE, intake and exhaust manifold. Used to stop overheating of inlet manifold (YR. 1931)

1шт.

O2413AB

ROD, heat regulator. See O3900AB (YR. 31-35)

1шт.

O2414AB

CLIP, for O2413AB rod (YR. 31-35)

1шт.

O2785AB

PLUG, for plugging hole in 416AA when throttle valve is not used in manifold (YR. 30-35)

2шт.

O3900AB

ROD, heat regulator. See O2413AB (YR. 1935)

1шт.

NUT, 3/8" hexagon, N.C. thread

2шт.

PIN, 1/8" x 3/4" cotter

2шт.

O4107AB

NUT, manifold cover (YR. 1936)

2шт.

O4670AB

LINK, heat regulator (YR. 1935)

1шт.

PIN, 3/32" x 5/8" cotter

2шт.

O6142AB

NUT, manifold shield and clamp stud (YR. 1936)

2шт.

O6770AB

X

FERRULE, exhaust port, for A4525A manifold. See O1436AB and 2740AA

4шт.

O6893AB

CLAMP, for A4525A manifold. See O1573AB

2шт.

SCREW, 1/2" x 2" cup point set, N.C. thread

2шт.

NUT, 1/2" hexagon, jam, N.C. thread

2шт.

416AA

MANIFOLD, inlet, with 4534A bushing. Used with Kingston or Ensign carburetor. See A4524A (YR. 29-35)

1шт.

PLUG, 1/8" pipe, square head

2шт.

SCREW, 1/2" x 1" hexagon head cap, N.C. thread

3шт.

1392AA

SHIELD, manifold. See 1556AA, Consists of 1 - 1556AA, 2 - O4107AB and 2 - 1/2" x 1" hexagon head N.F. thread cap screws (YR. 1936)

1шт.

1556AA

SHIELD, manifold. See 1392AA (YR. 1936)

1шт.

SCREW, 1/2" x 1" hexagon head cap, N.f. thread

2шт.

2740AA

MANIFOLD, exhaust, Consists of: 1 - A4525A manifold, 1 - 5754A adapter, 4 - O6770AB ferrule and 2 - 1/2" x 1-1/4" hexagon head cap screw, N.C. thread. (YR. 1929)

1шт.

4531A

VALVE, throttle (YR. 29-35)

1шт.

SCREW, no. 8 - 32 x 1/2" round head machine, N.C. thread

2шт.

WASHER, no. 8 standard lock

2шт.

4532A

STOP, throttle valve (YR. 29-35)

1шт.

PIN, no. 0 x 3/4" taper

1шт.

SCREW, 1/4" x 1" round head machine, N.C. thread

1шт.

NUT, 1/4" hexagon, N.C. thread

1шт.

4533A

LEVER, throttle valve (YR. 29-35)

1шт.

PIN, no. 0 x 3/4" taper

1шт.

4534A

BUSHING, throttle valve shaft (YR. 29-35)

2шт.

4537A

ADAPTER, carburetor (YR. 29-35)

1шт.

SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread

2шт.

BOLT, 3/8" x 1-1/2" machine, with hexagon nut, N.C. thread

2шт.

WASHER, 3/8" standard lock

2шт.

O1577AB

SHAFT, throttle valve (YR. 29-35)

1шт.

O1578AB

ROD, throttle (YR. 29-35)

1шт.

PIN, 3/32" x 1/2" cotter

2шт.

NUT, 1/4" hexagon, N.C. thread

2шт.

O1579AB

STUD, carburetor to inlet manifold (YR. 29-35)

2шт.

NUT, 3/8" hexagon, light, N.F. thread

2шт.

WASHER, 3/8" standard lock

2шт.

O1580AB

GASKET, for 4537A carbretor adapter (YR. 29-35)

1шт.

O1706AB

CLIP, choke rod (YR. 29-35)

1шт.

O1707AB

ROD, choke (YR. 29-35)

1шт.

PIN, 1/16" x 3/8" cotter

1шт.

O1709AB

CARBUREOTR, Kingston 1-1/2" model L. 3. V., LE302745 -. Use O1709AB1 (YR. 29-34)

1шт.

O1709AB1

CARBURETOR, Kingston 1-1/2" model L. 3. L., LE302744 +_ to LE301844 - (YR. 34-35)

1шт.

O1711AB

TUBE, fuel line to carburetor (YR. 29-35)

1шт.

O1859AB

X

GASKET, carburetor to intake manifold (YR. 29-35)

1шт.

1514AA

CARBURETOR AND PARTS NECESSARY TO CHANGE FROM KINGSTON TO ZENITH CARBURETOR (YR. 1929), Consists of the following

1шт.

A4431A

COLLAR

1шт.

A4521A

LEVER

1шт.

A4524A

MANIFOLD

1шт.

A4537A

ADAPTER

1шт.

5022A

CONNECTION

1шт.

5049A

BRACKET

1шт.

5050A

LEVER

1шт.

5051A

DISC

1шт.

O72A

DOWEL

1шт.

O1554AB1

X

SPRING

1шт.

O1580AB1

X

GASKET

1шт.

O1582AB1

CLAMP

1шт.

O1706AB1

CLIP

1шт.

O1707AB1

ROD

1шт.

O1711AB1

TUBE

1шт.

O3541AB

STUD

1шт.

O3544AB

SPRING

1шт.

O3546AB

ROD

1шт.

O3548AB

ROD

1шт.

O3617AB

ROD

1шт.

O4669AB

CARBURETOR

1шт.

1277AA

SHAFT

1шт.

A1428AA

COVER

1шт.

3/32" x 5/8" COTTER PIN

2шт.

1/8" x 3/4" COTTER PIN

1шт.

1/4" x 1-1/2" ROUND MACHINE SCREW

2шт.

1/4" x 3/4" CUP POINT SET SCREW

1шт.

3/8" x 1" HEXAGON HEAD CAP SCREW

2шт.

3/8" x 4-1/2" HEXAGON HEAD CAP SCREW

1шт.

1/4" HEXAGON NUT

1шт.

3/8" HEXAGON NUT

4шт.

1/2" HEXAGON NUT

1шт.

1/4" PLAIN WASHER

1шт.

2340AA

SET OF PARTS TO CHANGE FROM KINGSTON TO ZENITH CARBURETOR AND FROM LOW COST FUEL TO GASOLINE MANIFOLD (YR. 1929), Consists of the following

1шт.

4431A

COLLAR

1шт.

A4521A

LEVER

1шт.

A4537A

ADAPTER

1шт.

5022A

CONNECTION

1шт.

5049A

BRACKET

1шт.

5050A

LEVER

1шт.

5051A

DISC

1шт.

O72A

DOWEL

1шт.

O1554AB1

X

SPRING

1шт.

O1580AB1

X

GASKET

1шт.

O1582AB1

CLAMP

1шт.

O1706AB1

CLIP

1шт.

O1707AB1

ROD

1шт.

O1711AB1

TUBE

1шт.

O3541AB

STUD

1шт.

O3544AB

SPRING

1шт.

O3546AB

ROD

1шт.

O3548AB

ROD

1шт.

O3617AB

ROD

1шт.

O4669AB

CARBURETOR

1шт.

1878AA

GASOLINE MANIFOLDS

1шт.

3/32" x 5/8" COTTER PIN

2шт.

1/8" x 3/4" COTTER PIN

1шт.

3/8" x 1" HEXAGON HEAD CAP SCREW

2шт.

1/4" x 1-1/2" MACHINE SCREW

2шт.

3/8" x 4-1/2" HEXAGON HEAD CAP SCREW

1шт.

3/8" HEXAGON LIGHT NUT

2шт.

1/4" STANDARD PLAIN WASHER

1шт.

A4537A

ADAPTER, carburetor (YR. 1935)

1шт.

SCREW, 3/8" x 1-1/4" hexagon head cap, N.C. thread

2шт.

WASHER, 3/8" standard lock

2шт.

O1579AB

STUD, carburetor to intak manifold (YR. 1935)

2шт.

NUT, 3/8" hex., light, N.F. thread

2шт.

WASHER, 3/8" lock

2шт.

O1580AB1

X

GASKET, for A4537A carburetor adapter (YR. 1935)

1шт.

O1706AB1

CLIP, choke rod (YR. 35-38)

1шт.

O1707AB1

ROD, choke (YR. 35-38)

1шт.

PIN, 1/16" x 3/8" cotter

1шт.

O1709AB2

CARBURETOR, Zenith model no. K6A, Outline no. O-6799, Engine no. LE301844 to Engine no. 4210939. Use O4669AB (YR. 35-38)

1шт.

O1859AB

X

GASKET, carburetor to inlet manifold (YR. 1935)

1шт.

O3617AB

ROD, governor to carburetor (YR. 1935)

1шт.

O4669AB

CARBURETOR, Zenith model no. K6A, Outline No. O-8714. Engine no. 4210939 and after. See O1709AB2 (YR. 1938)

1шт.

SCREW, 3/8" x 1" hexagon head cap, N.C. thread

2шт.

WASHER, 3/8" standard lock

2шт.
