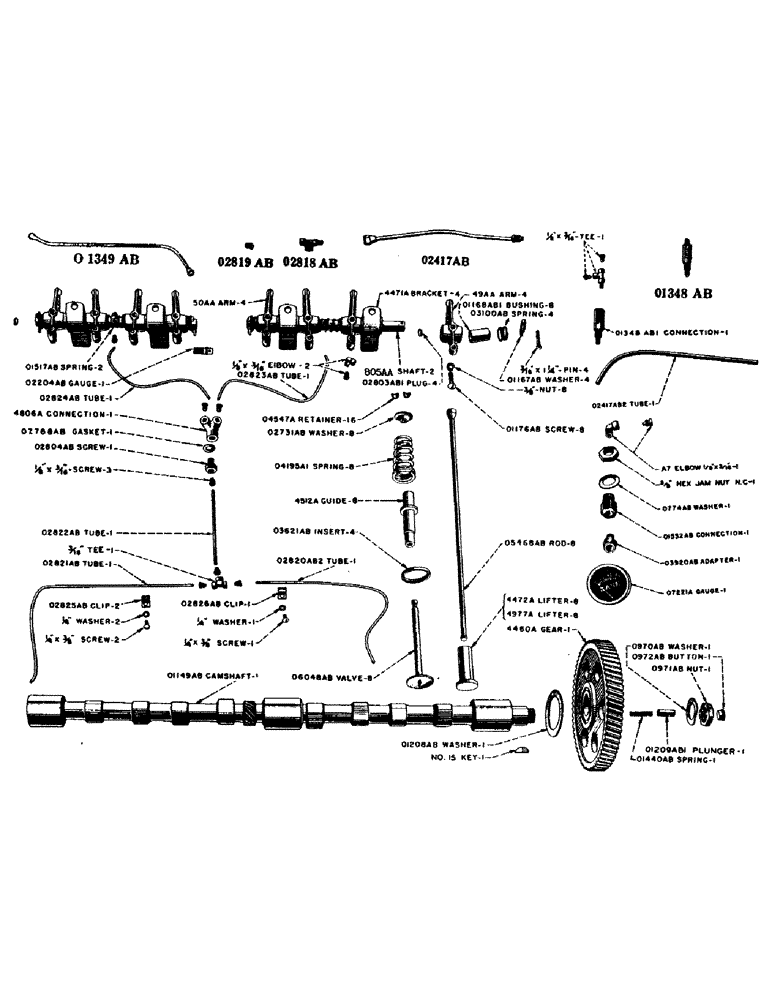

Запчасти Case IH LE (16) - VALVES, PUSH RODS AND CAMSHAFT

4460A

GEAR, camshaft (YR. 1929)

1шт.

4471A

BRACKET, valve rocker arm shaft (YR. 1929)

4шт.

4472A

LIFTER, push rod. See 4977A (YR. 1929)

8шт.

4512A

X

GUIDE, valve stem (YR. 1929)

8шт.

4977A

LIFTER, push rod, .010" oversize. See 4472A) (YR. 1933)

8шт.

O4195A1

SPRING, inlet and exhaust valve (YR. 1929)

8шт.

O4547A

RETAINER, valve spring (2 required per valve) (YR. 1929)

16шт.

O970AB

X

WASHER, lock, camshaft nut (YR. 1929)

1шт.

O971AB

X

NUT, camshaft (1-1/8" hexagon, N.C. thread) (YR. 1929)

1шт.

O972AB

BUTTON, thrust, camshaft (YR. 1931)

1шт.

O1149AB

CAMSHAFT (YR. 1929)

1шт.

KEY, no. 15 Woodruff

1шт.

O1167AB

X

WASHER, valve rocker arm shaft (YR. 1929)

4шт.

O1168AB1

BUSHING, valve rocker arm shaft (YR. 1929)

8шт.

O1176AB

X

SCREW, adjusting, push rod (YR. 1929)

8шт.

NUT, 3/8" hexagon, jam, N.F. thread

8шт.

O1208AB

WASHER, fibre, camshaft (YR. 1929)

1шт.

O1209AB1

PLUNGER, thrust, camshaft (YR. 1929)

1шт.

O1210AB

PIN, camshaft thrust plunger. Use O1209AB1

1шт.

O1440AB

X

SPRING, thrust, camshaft (YR. 1929)

1шт.

O1517AB

SPRING, valve rocker arm shaft (YR. 1929)

2шт.

O2204AB

GAUGE, valve clearance (YR. 1929)

1шт.

O2731AB

X

WASHER, valve spring retainer, LE357352 + (Yr. 1930)

8шт.

O2788AB

CUP, oil, valve rocker arms (YR. 29-30)

1шт.

O2803AB

PLUG, valve rocker arm shaft, LE300400 to LE300648 (YR. 31-33)

4шт.

O2803AB1

PLUG, valve rocker arm shaft, LE300648 + (YR. 1933)

4шт.

O3100AB

SPRING, end, valve rocker arm shaft, LE300648 + (YR. 1933)

4шт.

O3621AB

INSERT, valve seat, exhaust valve, LE300648 + (YR. 1935)

4шт.

O5468AB

X

ROD, push (YR. 1929)

8шт.

O6048AB

VALVE, inlet and exhaust (YR. 1929)

8шт.

49AA

ARM, valve rocker, with bushing, R.H. (YR. 1929)

4шт.

50AA

ARM, valve rocker, with bushing, L.H. (YR. 1929)

4шт.

669AA

SET OF VALVE ROCKER ARMS AND PRESSURE OILING SYSTEM PARTS. LE300401 (YR. 29-30)

1шт.

805AA

SHAFT, valve rocker arm, with plugs and end springs (YR. 1933)

2шт.

PIN, 3/16" x 1-1/4" cotter

4шт.

ELBOW, 1/8" pipe thread x 3/16" tube size, with compression screw, Dole A7 male

2шт.

4806A

CONNECTION, "Y" at cylinder head (YR. 1931)

1шт.

SCREW, 1/8" pipe thread x 3/16" tube size compression, Dole A110 (YR. 1931)

2шт.

O7221A

GAUGE, oil pressure (YR. 1929)

1шт.

O774AB

X

WASHER, oil gauge connection (YR. 1929)

1шт.

O1348AB

CONNECTION, oil gauge tube, LE300401 - (YR. 29-30)

1шт.

O1348AB1

CONNECTION, oil gauge tube, LE300400 + (YR. 1931)

1шт.

TEE, 1/8" pipe thread x 3/16" tube size, Dole A14 service

1шт.

O1349AB

TUBE, inner, to oil gauge (YR. 1929)

1шт.

O1552AB

CONNECTION, oil gauge (YR. 1929)

1шт.

ELBOW, 1/4" flared tube, 1/8" pipe thread x 7/16" N.F. thread

1шт.

NUT, 5/8" hexagon, jam, N.f. thread

1шт.

WASHER, 5/8" standard lock

1шт.

O2417AB

TUBE, connection tee to oil gauge (YR. 29-35)

1шт.

O2417AB1

TUBE, connection tee to oil gauge (YR. 35-37)

1шт.

O2417AB2

TUBE, connection tee to oil gauge (YR. 1938)

1шт.

O2804AB

SCREW, oil connection at cylinder head, LE300400 + (YR. 1931)

1шт.

SCREW, 1/8" pipe thread x 3/16" tube size, compression, Dole A110

1шт.

O2805AB

GASKET, oil connection at cylinder head. Use O7768AB

1шт.

O2818AB

TEE, connection, oil gauge tube LE300400 + (YR. 1931)

1шт.

O2819AB

CONNECTION, governor oiling. LE300400 + to Engine no. 4202249 (YR. 31-38)

1шт.

O2820AB

TUBE, tee to governor. Prior to Engine no. 4202249, see O2820AB2 (YR. 31-38)

1шт.

O2820AB1

TUBE, tee to governor. Use O2820AB2

1шт.

O2820AB2

TUBE, tee to governor. Engine no. 4202249 and after (YR. 1938)

1шт.

O2821AB

TUBE, tee to gauge connection, LE300400 + (YR. 1931)

1шт.

O2822AB

TUBE, tee to cylinder head, LE300400 + (YR. 1931)

1шт.

UNION, 3/16" tube size tee, Dole A10

1шт.

O2823AB

TUBE, "Y" connection to front rocker arm shaft, LE300400 + (YR. 1931)

1шт.

ELBOW, 1/8" pipe thread x 3/16" tube size, A7 male

2шт.

O2824AB

TUBE, "Y" connection to rear rocker arm shaft, LE300400 + (YR. 1931)

1шт.

O2825AB

X

CLIP, oil line to governor, LE300400 + (YR. 1931)

2шт.

SCREW, 1/4" x 3/8" round head machine, N.C. thread

2шт.

WASHER, 1/4" standard lock

2шт.

O2826AB

CLIP, oil line to governor at center of cylinder block, LE300400 + (YR. 1931)

1шт.

SCREW, 1/4" x 3/8" round head machine, N.C. thread

1шт.

WASHER, 1/4" standard lock

1шт.

O3920AB

ADAPTER, oil gauge (Brass) From O7221A gauge to O1552AB connection (YR. 1929)

1шт.

O7768AB

GASKET, oil connection screw at cylinder head (YR. 1931)

1шт.
