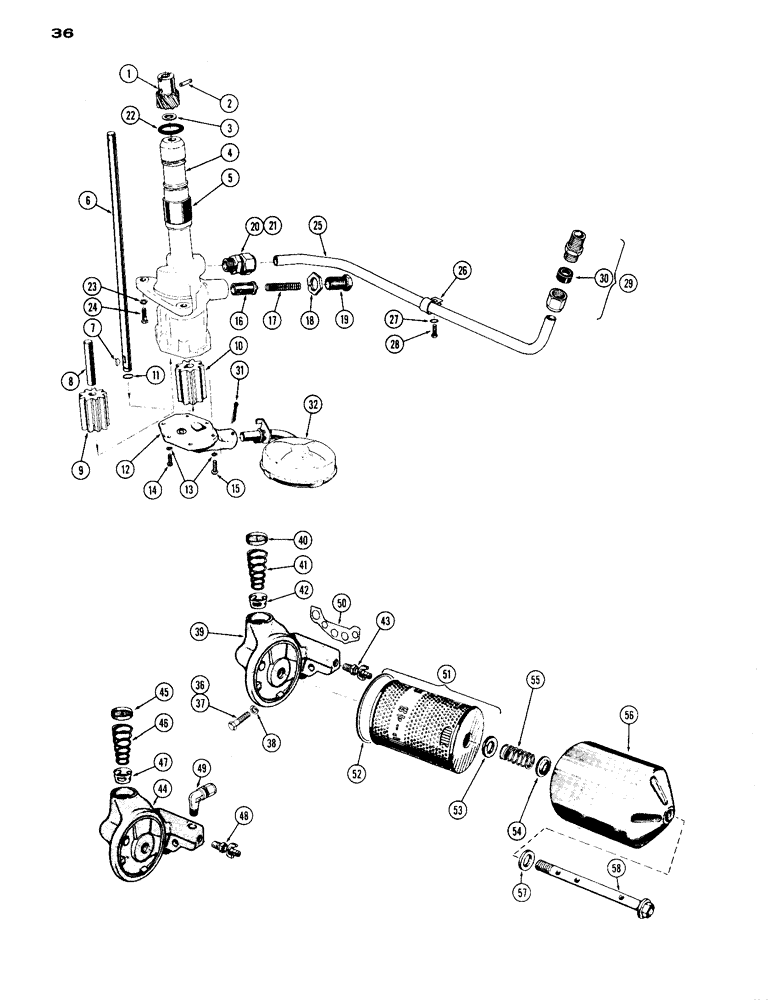

Запчасти Case IH A284 (36) - ENGINE OIL PUMP / ENGINE OIL FILTER, SPARK IGNITION ENGINE

A33443

PUMP

ASSY - oil

1шт.

1

6453A

X

GEAR - drive, pump

1шт.

2

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

1шт.

3

O9732AB

X

WASHER - thrust, drive gear

1шт.

4

A21094

BODY

ASSY. - oil pump

1шт.

5

A21079

SLEEVE

- pump body

1шт.

6

A21102

SHAFT

- drive, pump

1шт.

7

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Drive shaft #5, 1/8" x 5/8"

1шт.

8

O9729AB

SHAFT - stub, pump

1шт.

9

O9731AB

X

GEAR - pump, w/o keyway

1шт.

10

O9730AB

X

GEAR - pump, w/keyway

1шт.

11

A10916

RING, SNAP

RING - snap, drive shaft

1шт.

12

A33442

COVER - pump body

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

14

75-412

SCREW,Rd, 1/4" x 3/4"

- mach., 1/4" x 3/4" N.C.. rd. hd.

5шт.

15

75-424

SCREW

- mach., 1/4" x 1-1/2" N.C. rd. hd.

1шт.

16

A22566

PLUNGER

- relief, pump

1шт.

17

A23598

VALVE SPRING

SPRING - plunger

1шт.

18

O9735AB

NUT - adj. screw

1шт.

19

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adj., pump relief

1шт.

20

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY - oil tube

1шт.

21

222-106

SLEEVE,5/8" Tube

- connector 5/8" Tube

1шт.

22

O8380AB

X

"O" RING - pump body (1-1/16" x 1-7/16" x 1/8")

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

25

A21098

TUBE

- oil, Serial Range: pump-filter

1шт.

26

A10852

CLAMP - oil tube

1шт.

27

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

28

A10072

BOLT,3/8" - 16 x 3/4"

- tube clamp, oil

1шт.

29

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY - 5/8" tube x 1/2" P.T.

1шт.

30

222-106

SLEEVE,5/8" Tube

- connector, 5/8" Tube

1шт.

31

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

32

O8786AB

X

SCREEN ASSY - oil pump

1шт.

36

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

37

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex.

1шт.

38

92-8

LOCK WASHER,1/2"

2шт.

39

A23469

BASE

ASSY - oil filter (Gasoline & Nat. Gas)

1шт.

40

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

41

A21091

VALVE SPRING

SPRING - relief valve

1шт.

42

A21090

VALVE

- relief, oil

1шт.

43

A23656

COCK, DRAIN

VALVE - drain, base

1шт.

44

A23471

BASE ASSY - oil filter (LP Gas)

1шт.

45

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

46

A21091

VALVE SPRING

SPRING - relief valve

1шт.

47

A21090

VALVE

- relief, oil

1шт.

48

A23656

COCK, DRAIN

VALVE - drain, base

1шт.

49

222-442

ELBOW - 1/2" tube x 3/8" P.T. 90º x 3/8" NPT x 11/16"-16

1шт.

50

A21084

GASKET

- mtg., filter base

1шт.

51

A21475

ENGINE OIL FILTER

ELEMENT KIT - oil filter

1шт.

52

A21473

GASKET

- mtg., filter shell

1шт.

53

A21474

GASKET

- bolt, inner

1шт.

54

A21477

RETAINER

- spring

1шт.

55

A21478

SPRING

- retainer, element

1шт.

56

A21471

SHELL

- element, filter

1шт.

57

A21479

GASKET

- bolt, outer

1шт.

58

A21476

BOLT

- mtg., filter shell & element

1шт.
