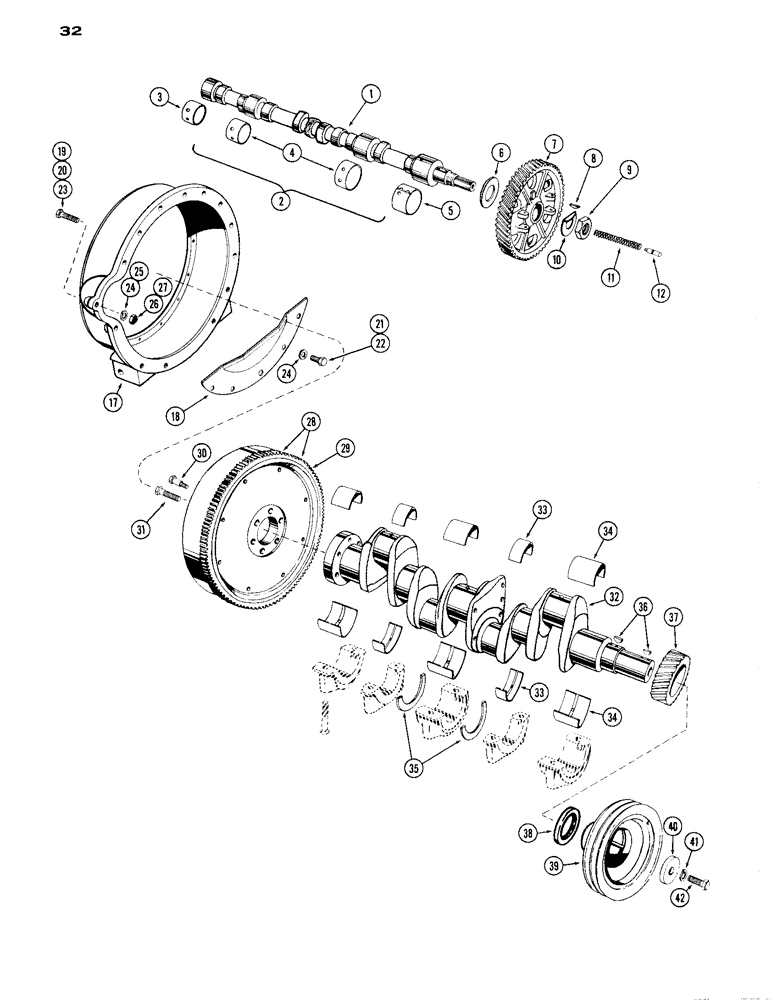

Запчасти Case IH A284 (32) - CAMSHAFT / CRANKSHAFT - FLYWHEEL & HOUSING, SPARK IGNITION ENGINE

1

A23501

CAMSHAFT

1шт.

2

A23577

KIT

BUSHING KIT - camshaft (Set of 4)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - reaf (Order A23577)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (Order A23577)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front (Order A23577)

1шт.

6

A21017

WASHER

- thrust, camshaft

1шт.

7

6451A

X

GEAR - camshaft

1шт.

8

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

9

O971AB

X

NUT - camshaft gear

1шт.

10

O970AB

X

LOCKWASHER -, Serial Range: nut-camshaft

1шт.

11

O9726AB

X

SPRING - thrust plunger

1шт.

12

O9725AB

X

PLUNGER - camshaft thrust

1шт.

17

A9397

HOUSING

- flywheel

1шт.

18

A7081

BEARING

SHIELD - dust

1шт.

19

A32607

STEP BOLT

- hsg. to cyl. block (long)

1шт.

20

A32608

STEP BOLT

BOLT - hsg. to cyl. block (Short)

1шт.

21

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

22

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

23

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

24

92-8

LOCK WASHER,1/2"

8шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

26

25-108

NUT,1/2"-13, G5

- 1/2" N.C., hex.

5шт.

27

25-1010

NUT,5/8"-11, G5

- 3/4" N.C., hex.

2шт.

28

A20877

FLYWHEEL ASSY. - engine

1шт.

29

A20875

GEAR, RING

GEAR - ring, flywheel

1шт.

30

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

BOLT - dowel, flywheel

4шт.

31

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

BOLT -, Serial Range: flywheel-crankshaft

2шт.

32

A22578

CRANKSHAFT - engine

1шт.

33

A20394

LINING

LINER KIT - crankshaft bearing, narrow (Std.)

2шт.

33

A20579

LINING

LINER KIT - crankshaft bearing, narrow (-.002")

2шт.

33

A20582

LINING

LINER KIT - crankshaft bearing, narrow (-.010")

2шт.

33

A20585

KIT

LINER KIT - crankshaft bearing, narrow (-.020")

2шт.

33

A20588

KIT

LINER KIT - crankshaft bearing, narrow (-.030")

2шт.

34

4706AA

X

LINER KIT - crankshaft bearing, wide (Std. size)

3шт.

34

A7182

KIT

LINER KIT - crankshaft bearing, wide (-.002")

3шт.

34

A7194

KIT

LINER KIT - crankshaft bearing, wide (-.020")

3шт.

34

A7188

BEARING LINER

LINER KIT - crankshaft bearing, wide (-.010")

3шт.

34

A7200

KIT

LINER KIT - crankshaft bearing, wide (-.030")

3шт.

35

O9705AB

X

WASHER - thrust bearing (Std. size)

2шт.

35

A7204

WASHER

- thrust bearing (.006" oversize)

2шт.

36

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley to crankshaft #C, 5/16" x 1 1/8", HT

2шт.

37

O9707AB

X

GEAR - crankshaft

1шт.

38

A23433

OIL SEAL

OIL SEAL - front, crankshaft

1шт.

39

A23644

PULLEY

- fan and generator drive

1шт.

40

A23229

WASHER

-, Serial Range: pulley-crankshaft

1шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

42

O10282AB

X

SCREW -, Serial Range: pulley-crankshaft

1шт.
