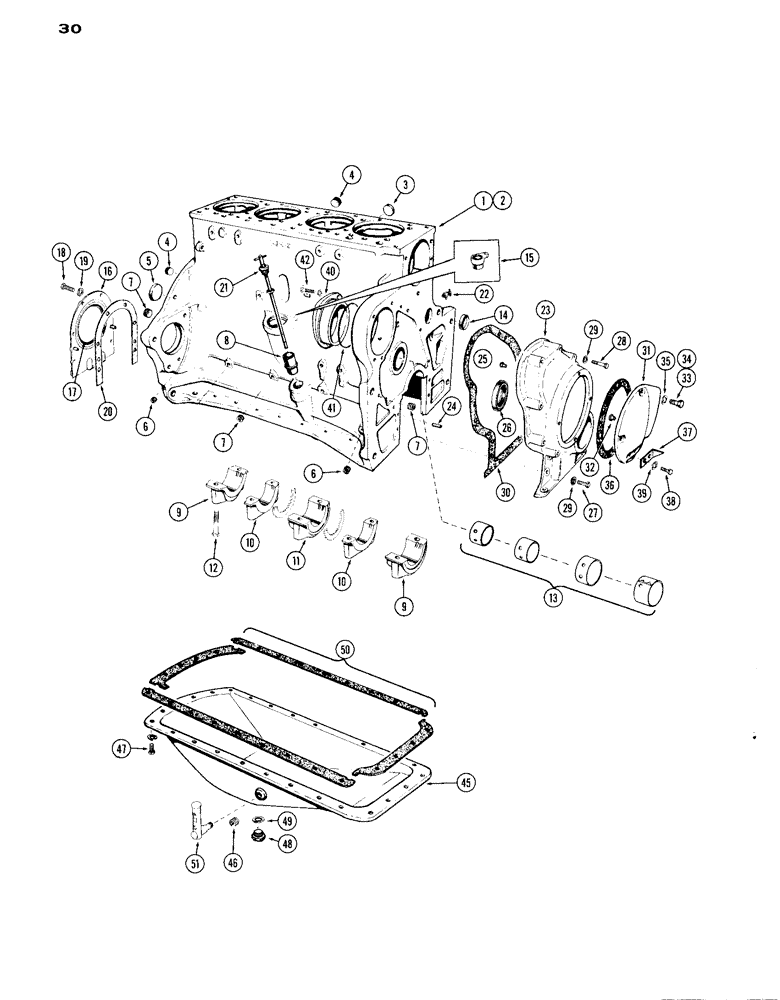

Запчасти Case IH A284 (30) - CYLINDER BLOCK ASSEMBLY / OIL PAN, SPARK IGNITION ENGINE

1

A40360

SHORT BLOCK ASSY (includes stripped block, sleeves, pistons & rings, crankshaft & gear, oil seals & retainer, connecting rods & liners, camshaft & gear and oil pump)

1шт.

2

A23510

X

BLOCK ASSY. - stripped

1шт.

3

41-1622

PLUG,Cup, 1 3/8", Stainless

- cup, left side of block

1шт.

4

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1" socket hd.

2шт.

5

A24361

PLUG

- rear, camshaft hole

1шт.

6

221-41

PLUG

- pipe, 1/8" slotted hd

2шт.

7

221-1843

PLUG

- pipe, 3/8" socket hd

4шт.

8

A20714

X

SOCKET - oil level gauge

1шт.

9

A24941

CAP

- crankshaft bearing, wide

2шт.

10

A24942

CYLINDER END CAP

CAP - crankshaft bearing, narrow

2шт.

11

A24943

CAP

- crankshaft bearing, thrust

1шт.

12

O9706AB

BOLT - bearing, Serial Range: cap-block

10шт.

13

A23577

KIT

BUSHING SET - camshaft

1шт.

14

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, front

1шт.

15

A7621

INSERT - support, distributor

1шт.

16

A32182

RETAINER

- rear oil seal

1шт.

17

A23085

OIL SEAL

OIL SEAL - crankshaft rear

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

19

92-6

LOCK WASHER,3/8"

6шт.

20

A32830

GASKET

- rear oil seal retainer

1шт.

21

A20739

GAUGE

- oil level

1шт.

22

A23656

COCK, DRAIN

VALVE - water drain

1шт.

23

A20703

COVER ASSY - timing gear

1шт.

24

O9710AB

PING - dowel

2шт.

25

O9754AB

BUTTON - thrust

1шт.

26

A23433

OIL SEAL

OIL SEAL - front, crankshaft

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

28

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex hd

8шт.

29

92-6

LOCK WASHER,3/8"

10шт.

30

A33018

GASKET

-, Serial Range: cover-block

1шт.

31

A20833

CAP - timing gear cover

1шт.

32

O9754AB

BUTTON - thrust

1шт.

33

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

34

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

35

92-6

LOCK WASHER,3/8"

4шт.

36

O9752AB

X

GASKET -, Serial Range: cap-cover

1шт.

37

O10853AB

POINTER - timing

1шт.

38

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

39

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

LOCKWASHER - 1/4" int.-ext. Shakeproof

2шт.

40

A7625

COVER - opening

1шт.

41

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - cover

1шт.

42

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

45

A23010

OIL PAN

1шт.

46

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, 1/4" sq. hd

1шт.

47

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

26шт.

48

A14280

PLUG

- drain, oil pan

1шт.

49

O9844AB

X

GASKET - drain plug

1шт.

50

A7616

GASKET KIT

GASKET SET - oil pan

1шт.

51

A11052

GAUGE - sight, oil level

1шт.
