Запчасти Case IH A284 (28) - CYLINDER HEAD ASSEMBLY, SPARK IGNITION ENGINE

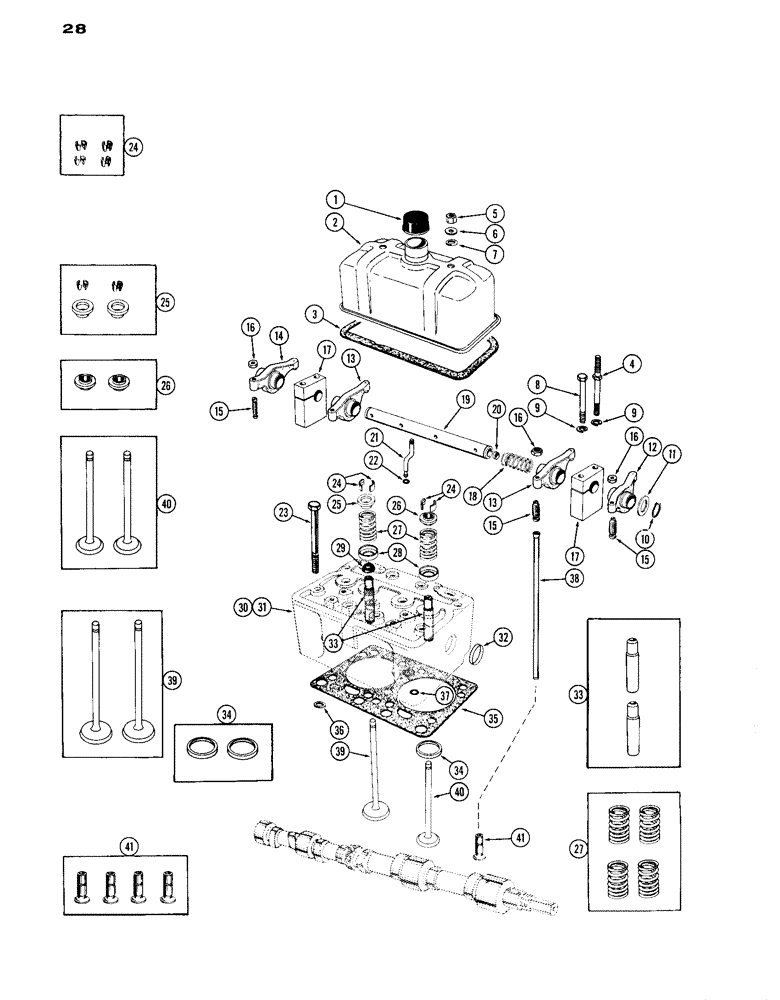

Схема запчастей Case IH A284 - (28) - CYLINDER HEAD ASSEMBLY, SPARK IGNITION ENGINE
24
26
35
10
3
19
17
4
24
7
40
6
15
29
36
37
9
27
18
25
33
15
9
11
39
32
25
15
28
5
20
12
30
40
22
14
24
41
21
13
1
31
16
2
26
16
33
23
38
27
34
16
13
17
34
39
8
41

Артикул

Название

Примечание

Количество

1

O9960AB

X

BREATHER - cylinder head cover

2шт.

2

A20345

COVER - cylinder head

2шт.

3

O9959AB

X

GASKET - cylinder head cover

2шт.

4

O10732AB

STUD - rocker bracket and cyl. head cover

4шт.

5

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

4шт.

6

A23683

WASHER

- cover nut

4шт.

7

A23684

GASKET

GASKET - cover nut

4шт.

8

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

4шт.

9

92-7

LOCK WASHER,7/16"

8шт.

10

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

4шт.

11

O9770AB

X

WASHER - rocker arm

12шт.

12

A22324

ROCKER

ARM ASSY - rocker exh. (#1 and 3 cyl.)

2шт.

13

A22322

ROCKER

ARM ASSY - rocker, intake

4шт.

14

A22326

ROCKER

ARM ASSY - rocker, exh. (#2 and 4 cyl.)

2шт.

15

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker

1шт.

16

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

1шт.

17

O9773AB

BRACKET - rocker arm shaft

4шт.

18

O9769AB

X

SPRING - rocker arm shaft

2шт.

19

A23671

X

SHAFT ASSY - rocker arm

2шт.

20

A22318

PLUG - end, rocker arm shaft

2шт.

21

O9771AB

X

TUBE - oil, rocker arm shaft

2шт.

22

O9772AB

X

"O" RING - oil tube

2шт.

23

A23355

BOLT

- cylinder head

16шт.

24

A40352

LOCK

KEEPER KIT - valve spring (Set of 8)

2шт.

25

A21657

LOCK

RETAINER KIT - int. valve spring (2 ret. & 4 keepers)

2шт.

26

A24993

CAP

ROTO CAP KIT - exh. valve spring (Set of 2)

2шт.

27

A21694

SPRING

KIT - int. & exh. valve (Set of 4)

2шт.

28

O9751AB

X

SEAT - valve spring, int. & exh.

8шт.

29

A10726

SEAL

SHIELD - int. valve stem (Rubber)

4шт.

30

A20809

CYLINDER HEAD

HEAD ASSY - cylinder (Gasoline)

2шт.

31

A21243

HEAD

ASSY - cylinder (LP Gas & Nat. Gas)

2шт.

32

A34124

PLUG,Cup, 1 5/8", Stainless

- cup cyl. head

2шт.

33

A21673

GUIDE

KIT - valve, int. & exh. (Set of 2)

2шт.

34

A33454

INSERT

KIT - valve, exh. (Set of 2)

1шт.

35

A23117

GASKET

- cylinder head

2шт.

36

A7669

RING

- cyl. head gasket (Rubber)

4шт.

37

O8569AB

X

"O" RING - oil, cyl. head gasket

2шт.

38

A21060

ROD

- push, rocker arm

8шт.

39

A33457

VALVE

KIT - intake (Set of 2)

2шт.

40

A33458

VALVE, ENG EXHAUST,

VALVE KIT - exhaust (Set of 2)

2шт.

41

A21653

KIT

LIFTER KIT - push rod (Set of 4)

2шт.

Выбрано товаров: 41
