Запчасти Case IH A284 (26) - AIR CLEANER / INTAKE & EXHAUST MANIFOLD / MUFFLER (OPTIONAL), SPARK IGNITION ENGINE

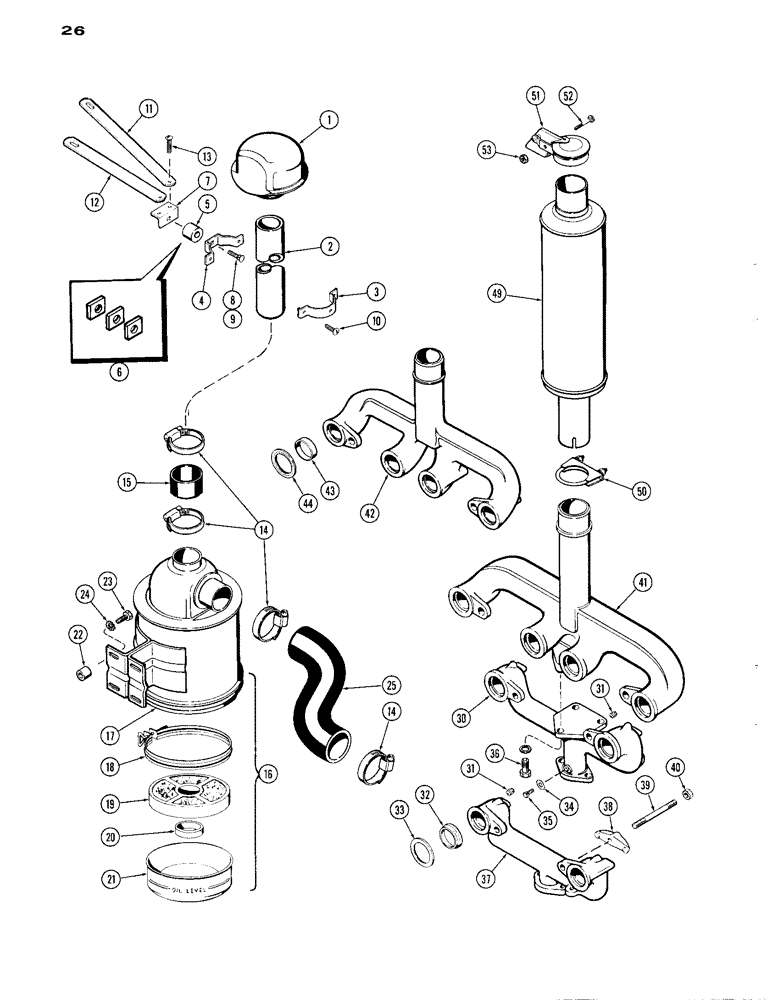

Схема запчастей Case IH A284 - (26) - AIR CLEANER / INTAKE & EXHAUST MANIFOLD / MUFFLER (OPTIONAL), SPARK IGNITION ENGINE
51
36
39
9
20
17
8
2
35
7
44
52
25
18
6
10
42
50
24
37
38
21
14
34
40
3
11
16
12
33
15
19
22
31
30
5
49
23
41
13
1
4
14
43
31
53
32

Артикул

Название

Примечание

Количество

1

A21430

CAP

PRE-SCREENER - air cleaner

1шт.

2

A20055

PIPE - air intake

1шт.

3

A10840

STRAP - intake pipe

1шт.

4

A10839

SUPPORT - intake pipe

1шт.

5

O8266AB

X

SPACER - intake pipe (Type 1 units)

1шт.

6

A11491

SPACER - intake pipe (Type 2 & 3 units)

3шт.

7

A9741

BRACKET - support, int. pipe (Type 1 unit)

1шт.

8

11-532

X

BOLT - 5/16" x 2" rhd., sq. neck (Type 1 unit)

1шт.

9

11-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2"

BOLT, CARRIAGE, (Type 2 & 3 units) Short NK, 5/16"-18 x 1 1/2"

1шт.

10

75-412

SCREW,Rd, 1/4" x 3/4"

- mach., 1/4" x 3/4" N.C. rd. hd.

2шт.

11

A9743

STRAP - supp., int. pipe (Type 1 unit) (10-7/8")

1шт.

12

A9742

STRAP - supp., int. pipe (Type 1 unit) (11-3/4")

1шт.

13

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- mach., 1/4" x 5/8" N.C., rd. hd.

2шт.

14

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - HOSE (2-5/16" TO 3-1/4")

4шт.

15

A7241

HOSE - intake pipe to air cleaner

1шт.

16

A11826

CLEANER ASSY - air

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A11826)

1шт.

18

A8297

CLAMP

ASSY - oil cup, cleaner

1шт.

19

A8295

SCREEN - air cleaner

1шт.

20

A8298

CLAMP ASSY - screen

1шт.

21

A8296

CUP - oil, cleaner

1шт.

22

B18083

BUSHING

SPACER - air cleaner

4шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex

4шт.

24

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

LOCKWASHER - 3/8" ext.-int. Shakeproof

4шт.

25

A21429

INTAKE AIR HOSE,2.25" x 7.94", SAE 10R4 Class SC 715

- Air cleaner to carburetor 2.25" x 7.94", SAE 10R4 Class SC 715

1шт.

30

A20812

X

MANIFOLD - intake (Gasoline)

1шт.

31

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd. P.T.

2шт.

32

A20814

BUSHING,39.69mm ID x 42.93mm OD x 12.7mm L

FERRULE - intake manifold

2шт.

33

O9814AB

X

GASKET - intake manifold

2шт.

34

A20778

GASKET - int. manifold pivot boss (Gasoline)

1шт.

35

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

37

A20900

MANIFOLD - intake (LP Gas & Nat. Gas)

1шт.

38

A24368

CLAMP

- int. & exh. manifold

4шт.

39

O9817AB

X

STUD - manifold clamp

4шт.

40

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

4шт.

41

A20867

MANIFOLD

- exhaust (Gasoline)

1шт.

42

A20901

MANIFOLD - exhaust (LP Gas & Nat. Gas)

1шт.

43

A11837

FERRULE

- exhaust manifold

4шт.

44

A11889

GASKET

- exhaust manifold

4шт.

A34202

MUFFLER ATTACHMENT - unit

1шт.

49

A24314

MUFFLER

- exhaust

1шт.

50

A13240

CLAMP,2-5/8" ID

ASSY - muffler

1шт.

51

A33742

CAP

ASSY - weather, muffler

1шт.

52

11-532

X

BOLT - carriage, 5/16" x 2" N.C.

1шт.

53

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C., hex.

1шт.

Выбрано товаров: 46
