Запчасти Case IH A284 (84) - ENGINE SUPPORTS / ADJUSTABLE SIDE RAILS (OPTIONAL)

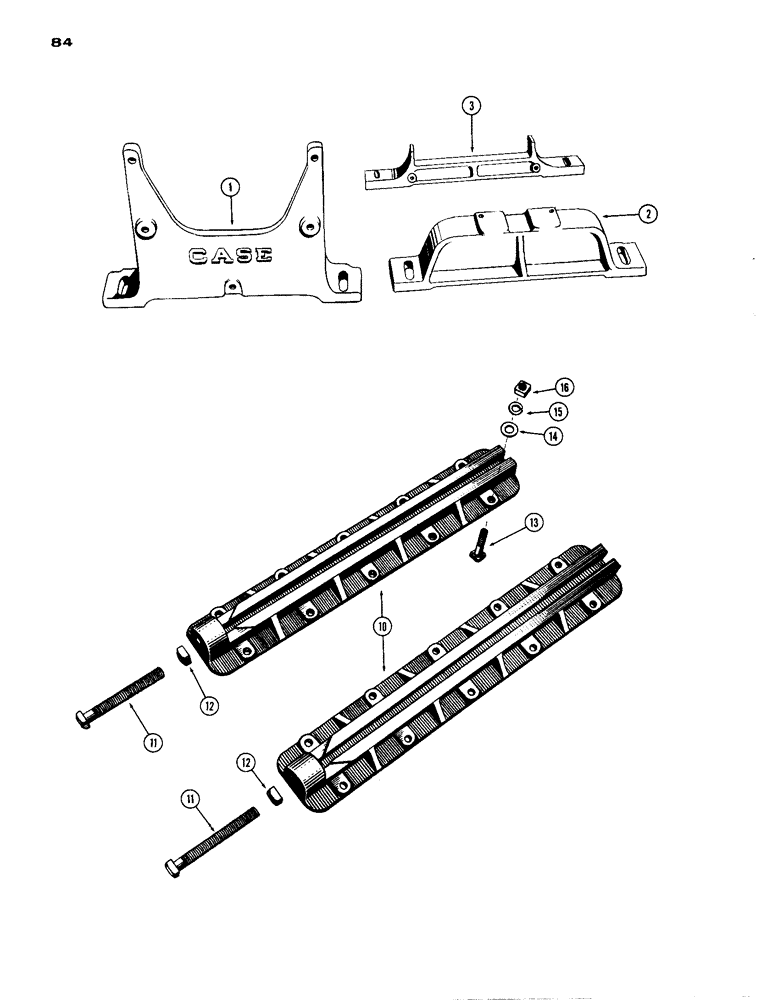

Схема запчастей Case IH A284 - (84) - ENGINE SUPPORTS / ADJUSTABLE SIDE RAILS (OPTIONAL)
12
16
13
12
11
14
11
15
2
1
3
10

Артикул

Название

Примечание

Количество

1

A9629

SUPPORT - engine, frt. (Type 1 engine)

1шт.

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

(Supp. to eng. blk.) Hex, 3/4"-10 x 2 1/2", G5

2шт.

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

(Supp. to eng. blk.) Hex, 3/4"-10 x 4 1/2", G5

2шт.

2

A9277

SUPPORT - engine, frt. (Type 2 & 3 engine)

1шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(Supp. to rad. supp.) Hex, 5/8"-11 x 2", G5

2шт.

3

5083A

SUPPORT - engine, rear (Type 1, 2 & 3 eng.)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C., hex. (Supp. to flywhl. hsg.)

2шт.

1361AA

ATTACHMENT - adj. slide rails (mach. item)

1шт.

10

5133A

RAIL - engine support

2шт.

11

O3788AB

BOLT - adjustable sill

2шт.

12

25-2216

NUT - 1" N.C. square Sq, 1"-8

2шт.

13

17-1456

BOLT - 7/8" x 3-1/2" N.C., sq. hd.

6шт.

14

95-14

WASHER,7/8"

- wrought, SAE 7/8"

6шт.

15

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

6шт.

16

25-2814

NUT - heavy, 7/8" N.C., square

6шт.

Выбрано товаров: 15
