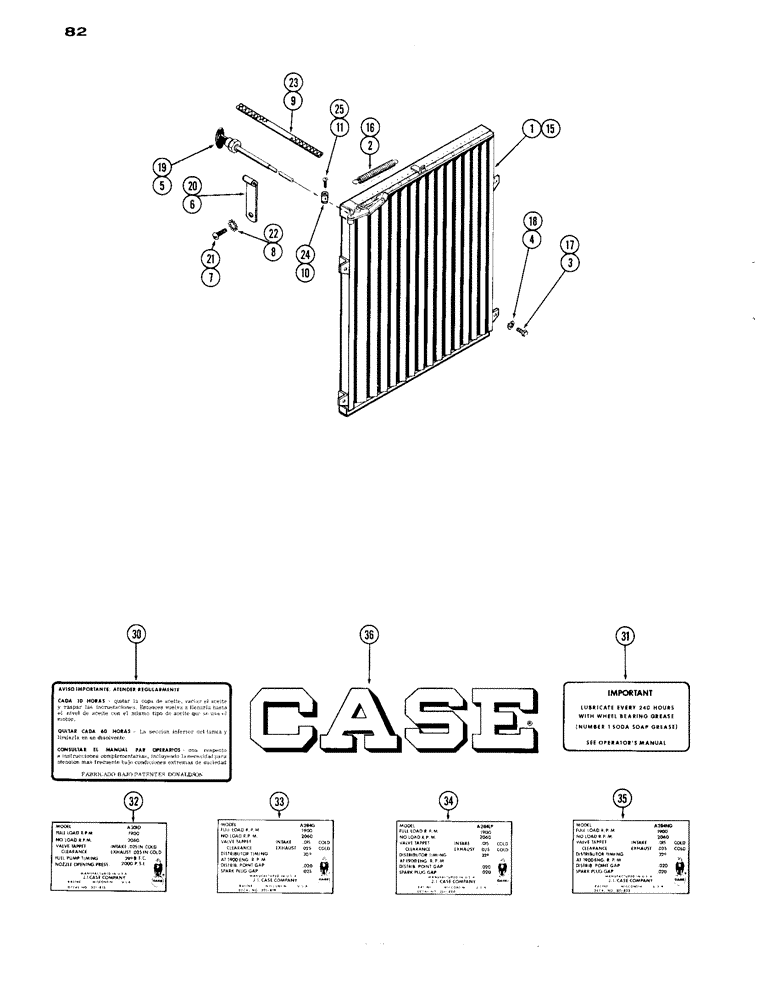

Запчасти Case IH A284 (82) - RADIATOR SHUTTER, OPTIONAL, TYPE TWO POWER UNITS / TYPE THREE POWER UNITS / DECALS

A34127M

ATTACHMENT - rad. shutter (Type 2 Power Units)

1шт.

1

A8152

SHUTTER ASSY. - radiator

1шт.

2

A9909

SPRING - shutter lever

1шт.

3

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F., hex.

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

A9389

CONTROL ASSY. - shutter

1шт.

6

A8153

CLIP - support, shutter control

1шт.

7

75-510

HANDBOOK

SCREW - mach. 5/16" x 5/8" N.C., rd. hd.

1шт.

8

193-45

WASHER,Ext-Int Tooth, 5/16"

LOCKWASHER - 5/16" int.-ext. Shkp.

1шт.

9

O8814AB

LOOM - shutter control

1шт.

10

O7029AB

CLAMP - shutter control wire

1шт.

11

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- mach., #8 x 1/4" N.C., rd. hd.

1шт.

A34128M

ATTACHMENT - rad. shutter (Type 3 Power Units)

1шт.

15

A8152

SHUTTER ASSY. - radiator

1шт.

16

A9909

SPRING - shutter lever

1шт.

17

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F., hex.

4шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

19

A9387

CONTROL ASSY. - rad. shutter

1шт.

20

A8153

CLIP - support, shutter control

1шт.

21

75-510

HANDBOOK

SCREW - mach., 5/16" x 5/8" N.C., rd. hd.

1шт.

22

193-45

WASHER,Ext-Int Tooth, 5/16"

LOCKWASHER - 5/16" ext.-int. Shkp.

1шт.

23

O8814AB

LOOM - shutter control

1шт.

24

O7029AB

CLAMP - shutter control wire

1шт.

25

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- mach., #8 x 1/4" N.C., rd. hd.

1шт.

30

321-581

DECAL - air cleaner instructions (Spanish language)

1шт.

31

321-107

DECAL - important (w/multiple pulley clutch)

1шт.

32

321-812

DECAL

- data, (Diesel Engine)

1шт.

33

321-819

DECAL - data (Gasoline Engine)

1шт.

34

321-820

DECAL - data (LP-Gas Engine)

1шт.

35

321-823

DECAL - data (Natural Gas Engine)

1шт.

36

521-287

DECAL - hood side (CASE) (Type 2 & 3 Units)

2шт.
