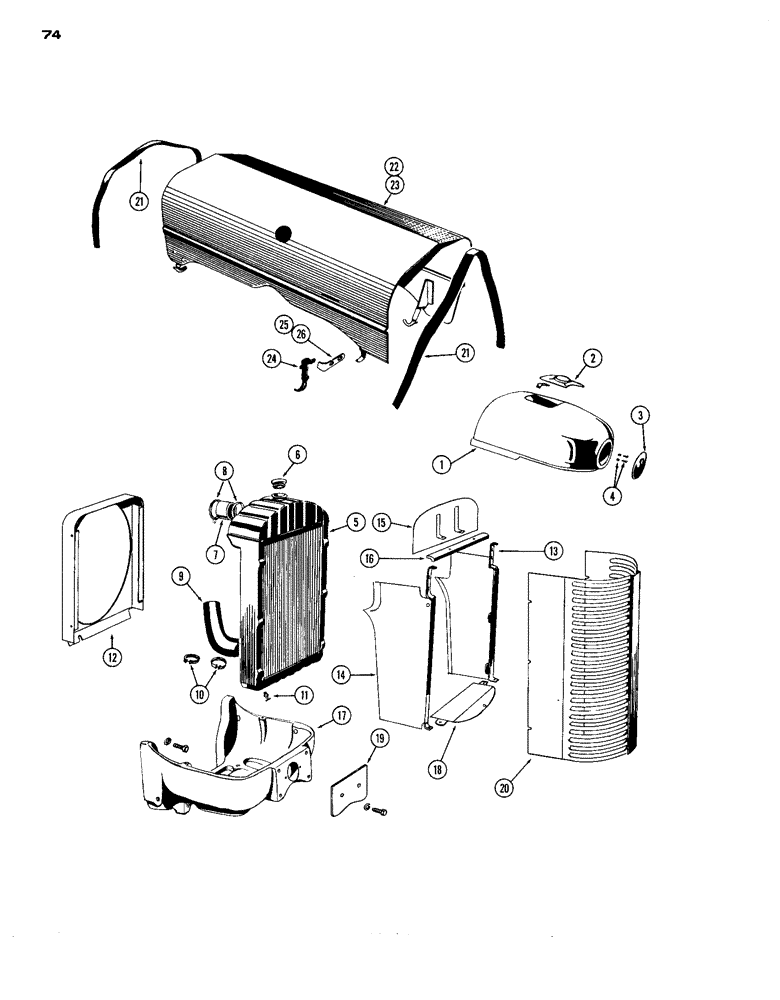

Запчасти Case IH A284 (74) - RADIATOR GRILLE AND HOOD, TYPE TWO AND THREE UNITS

1

A9550

CAP - radiator grille

1шт.

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- mach., 1/4 x 1/2" N.C., rd. hd.

4шт.

2

A22343

DOOR - grille cap

1шт.

3

A7600

EMBLEM CASE/IH

MEDALLION - grille cap

1шт.

4

A8394

PIN & CLIP KIT - medallion (Set of 4)

1шт.

5

A22031

RADIATOR ASSY. - engine

1шт.

6

A11181

RADIATOR CAP

CAP - radiator (4 lb.)

1шт.

7

A22086

RADIATOR HOSE,2.50" x 3.25", SAE 20R2

Inlet, Water

1шт.

8

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (2-5/16" to 3-1/4")

2шт.

9

A20384

RADIATOR HOSE,1.75" ID, 2.00" ID x 6.69", SAE 20R4 Class R Grade 1A

- Radiator to Water Pump 1.75" ID, 2.00" ID x 6.69", SAE 20R4 Class R Grade 1A

1шт.

10

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

11

O9739AB

X

VALVE - drain, radiator

1шт.

12

A22057

SHROUD - radiator

1шт.

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- mach., 1/4" x 1/2" N.C., rd. hd.

4шт.

131-115

NUT

- speed, 1/4" Timmerman

4шт.

13

4941AA

MEMBER - side, radiator L.H.

1шт.

14

4940AA

MEMBER - side, radiator R.H.

1шт.

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Member to rad. support Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Member to rad. Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- member to rad. (5/16" x 1-1/2" N.F., hex.)

4шт.

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- mach., mem. to shroud and grille (1/4" x 1/2" N.C., rd. hd.)

8шт.

15

A8510

BAFFLE - upper radiator

1шт.

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- mach., baffle to brace (1/4" x 1/2" N.C. rd. hd.)

2шт.

16

A11049

BRACE - side member, top

1шт.

76-48

BOLT (MACHINE)

SCREW - mach., brace to member (1/4" x 1/2" N.F. rd. hd.)

2шт.

17

A21791

SUPPORT - radiator and engine

1шт.

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Supp. to cyl. blk. Hex, 3/4"-10 x 2", G5

4шт.

18

A8520

BAFFLE - lower, radiator

1шт.

19

A20279

COVER - support

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover to supp. Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

20

O10964AB

GRILLE - radiator

1шт.

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- mach., grille to mem. (1/4" x 1/2" N.C., rd. hd.)

4шт.

21

A7005

STRIP - antisqueak, hood (2 used on Type 3 Diesel and Gasoline only)

2шт.

22

A20037

HOOD ASSY. - engine (Type 2 on Diesel & Gasoline, Type 2 & 3 on LP-Gas & Nat. Gas)

1шт.

23

A20039

HOOD ASSY. - engine (Type 3 Diesel and Gasoline engine)

1шт.

24

O3771AB

X

CATCH - hood

4шт.

45-38

RIVET,But Hd, 3/16" x 1/2"

- 3/16" x 1/2" W.B. hd.

8шт.

25

A7006

CLIP - hood catch, R.H.

1шт.

26

A7007

CLIP - hood catch, L.H.

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

193-45

WASHER,Ext-Int Tooth, 5/16"

LOCKWASHER - 5/16" ext.-int. Shakeproof

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C., hex.

4шт.
