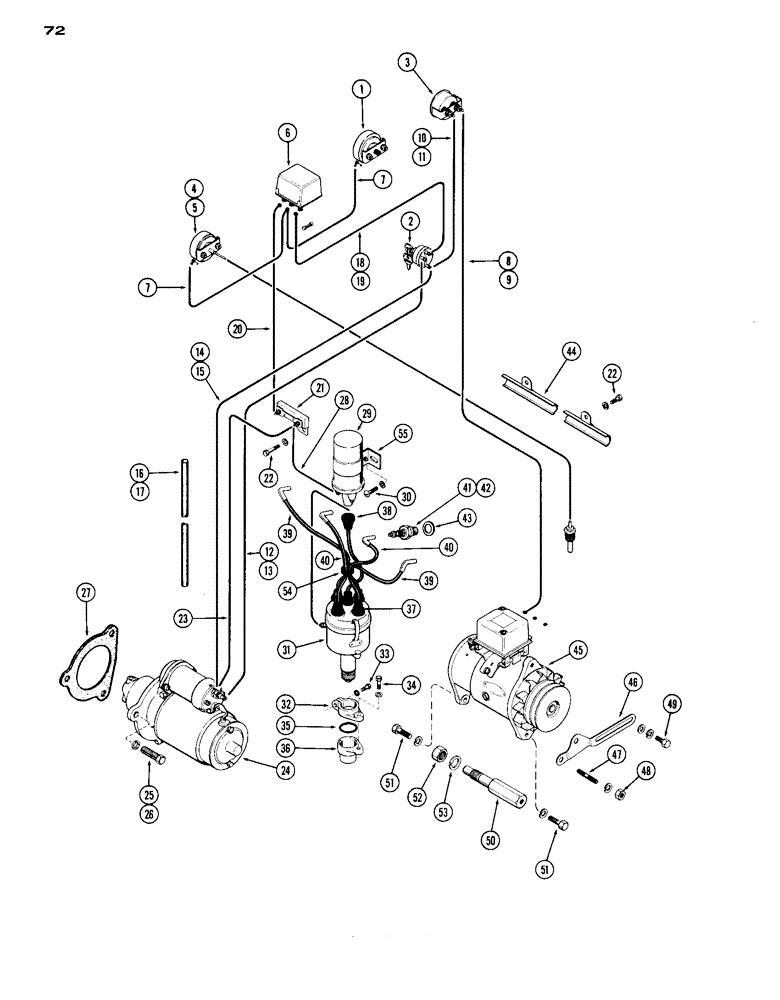

Запчасти Case IH A284 (72) - ELECTRICAL SYSTEM, SPARK IGNITION ENGINE

1

A10475

GAUGE - oil, (Murphy)

1шт.

2

A24511

SWITCH

ASSY - ignition w/key (Gas)

1шт.

3

O3601AB1

X

GAUGE - ammeter

1шт.

4

A10471

GAUGE ASSY. - eng. temp. (Type 1 & 2 Units)

1шт.

5

A10474

GAUGE

ASSY. - eng. temp. (Type 3 Units)

1шт.

6

A23261

SWITCH

ASSY. - relay

1шт.

7

A11193

WIRE - oil ga. & temp. ga. to relay "G" term

2шт.

8

O6272AB

WIRE - ammeter to gen. (Type 1 & 2 Units)

1шт.

9

O7197AB

WIRE - ammeter to gen. (Type 3 Units)

1шт.

10

O3001AB

WIRE - amm. to st. sw. "B" term. (Type 1 & 2 Units)

1шт.

11

O5659AB

WIRE - amm. to st. sw. "B" term. (Type 3 Units)

1шт.

12

A9340

ELECTRICAL WIRE

WIRE - ign. sw. "B" term to st. (Type 1 & 2 Units)

1шт.

13

O5226AB1

WIRE - ign. sw. "B" term. to st. (Type 3 Units)

1шт.

14

O6528AB

WIRE - ign. sw. "S" term to st. (Type 1 & 2 Units)

1шт.

15

O7253AB

WIRE - ign. sw. "S" term. to st. (Type 3 Units)

1шт.

16

O7653AB

LOOM - ign. to starter wires (Type 1 & 2 Units)

1шт.

17

O7666AB

X

LOOM - ign. to starter wires (Type 3 Units)

1шт.

18

A8743

WIRE - ign. "M" term. to relay "B" term. (Type 1 & 2 Units)

1шт.

19

O3001AB

WIRE - ign. "M" term. to relay "B" term. (Type 3 Units)

1шт.

20

A13906

WIRE - relay "C", Serial Range: term.-resistor

1шт.

21

A24504

RESISTOR

- electrical, 12 volt

1шт.

22

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

(Resistor & conduit) Hex, 5/16"-18 x 1/2", G5, Full Thd

3шт.

23

A8743

WIRE - resistor to starter solenoid

1шт.

24

A20873

MOTOR ASSY. - starter (12 V.) (Repairs, P. 67)

1шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

26

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

27

O9866AB

X

GASKET - mtg., starter motor

1шт.

28

O10224AB

WIRE -, Serial Range: resistor-coil

1шт.

29

G44817

COIL

- ignition (12 Volt)

1шт.

30

75-510

HANDBOOK

SCREW - mach., 5/16" x 5/8" N.C., rd. hd.

2шт.

31

A24506

DISTRIBUTOR

ASSY. - ign. (Repairs, P. 69)

1шт.

32

A7622

CLAMP - distributor

1шт.

33

75-520

SCREW - mach., 5/16" x 1-1/4" N.C., rd. hd.

1шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

35

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor mtg.

1шт.

36

A7621

INSERT - distributor

1шт.

37

VT3561

X

NIPPLE - distributor & coil wires

5шт.

38

G46803

BOOT

NIPPLE - coil wire

1шт.

39

A20143

ELECTRICAL WIRE

WIRE - spark plug, #1 & 4 cyl. 15"

2шт.

40

A20144

ELECTRICAL WIRE

WIRE - spark plug, #2 & 3 cyl. 11"

2шт.

41

G44840

SPARK PLUG

PLUG - spark, 18 mm. (Gasoline eng.)

4шт.

42

A20905

SPARK PLUG

PLUG - spark, 18 mm. (LP-and Nat. Gas)

4шт.

43

G46839

GASKET

- spark plug

1шт.

44

A7532

CONDUIT - wire to cyl. block

1шт.

45

A33983

GENERATOR

ASSY. - eng. (Repairs, P. 63)

1шт.

46

A21538

STRAP

- adjusting, generator

1шт.

47

A7391

STUD

- adj. strap to water pump

1шт.

48

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

1шт.

49

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

- sems w/washer, 5/16" x 3/4" pilot pt.

1шт.

50

A22685

X

CARRIER - generator

1шт.

51

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F., hex.

2шт.

52

25-1112

NUT,3/4"-16, G5

- 3/4" N.F., hex.

1шт.

53

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

54

A23258

RING - tie, ignition wires

1шт.

55

G46106

BRACKET

CLAMP - coil, ignition

1шт.
