Запчасти Case IH A284 (68) - A24506 DISTRIBUTOR, SPARK IGNITION ENGINE

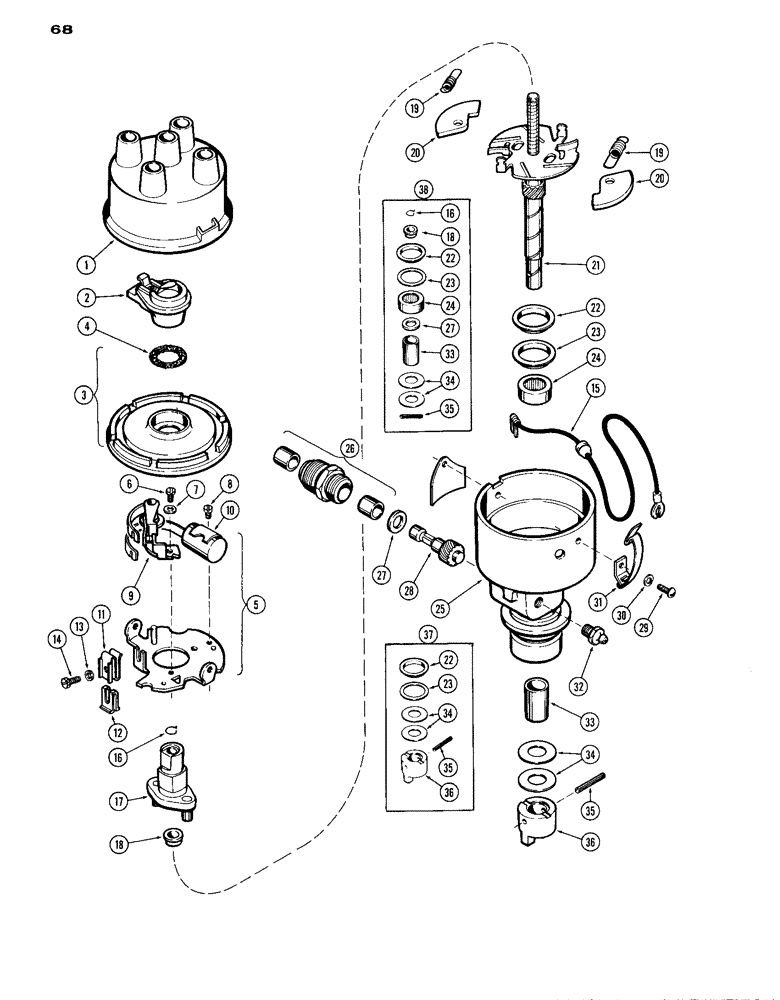

Схема запчастей Case IH A284 - (68) - A24506 DISTRIBUTOR, SPARK IGNITION ENGINE
12
24
9
27
26
34
13
1
28
18
23
20
23
27
23
36
6
3
20
22
14
17
11
22
33
29
2
19
4
38
16
7
32
35
19
16
18
33
25
34
22
37
31
24
21
5
8
35
36
34
30
35
15
10

Артикул

Название

Примечание

Количество

A24506

DISTRIBUTOR

ASSY. - ignition

1шт.

1

A25464

CAP - distributor

1шт.

2

A25466

LARGE PLATE

ROTOR - distributor

1шт.

3

A24763

PLATE

ASSY. - seal

1шт.

4

A24764

WASHER

- seal plate (Felt)

1шт.

5

A40330

PLATE

ASSY. - breaker

1шт.

6

A24776

SCREW,Locking, #8 - 32 x 3/16"

- breaker contact

1шт.

7

195-509

WASHER,3/16"

- plain, #8 SAE

1шт.

8

169-56

SCREW - #6 x 3/16" N.C., Fill hd.

1шт.

9

A24771

PACKAGE, REPAIR

BREAKER - contact

1шт.

10

A8370

PACKAGE

CONDENSER - distributor

1шт.

11

A24774

CLIP

- retaining

1шт.

12

A24773

INSULATOR

- distributor

1шт.

13

195-506

WASHER,#6

- plain, SAE #6

1шт.

14

A24775

SCREW,0.138"-32 x 1/32"

- breaker clip

1шт.

15

A24772

HARNESS

WIRE - primary

1шт.

16

NSS

NOT SOLD SEPARAT

RING - snap, cam retaining (Order A40326)

1шт.

17

A24762

CAM - distributor

1шт.

18

NSS

NOT SOLD SEPARAT

SPACER - cam (Order A40326)

1шт.

19

A24778

SPRING KIT

SPRING SET - dist. governor

1шт.

20

A24754

WEIGHT - governor

1шт.

21

A24833

DRIVE SHAFT

SHAFT - drive, distributor

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - thrust, outer (Order A40326)

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - thrust, inner (Order A40326)

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - needle, distributor (Order A40326)

1шт.

25

NSS

NOT SOLD SEPARAT

BASE - distributor (Order A24506)

1шт.

26

A24781

HOUSING - shaft, tach. drive

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - thrust, tach. drv. shaft (Order A40326)

1шт.

28

A24761

SHAFT

- drive, distr. tach.

1шт.

29

A24779

SCREW - mtg., cap clamp & brke. plate

2шт.

30

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

31

A40329

SPRING

CLAMP - spring, dist. cap.

2шт.

32

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4" str.

1шт.

33

NSS

NOT SOLD SEPARAT

BUSHING - distributor (Bronze) (Order A40326)

2шт.

34

NSS

NOT SOLD SEPARAT

WASHER - thrust, (Lower) (Order A40324 or A40326)

2шт.

35

NSS

NOT SOLD SEPARAT

PIN - ROLL, 1/8" x 13/16" (Order A40324 or A40326)

2шт.

36

NSS

NOT SOLD SEPARAT

COUPLING - drive shaft (Order A40324)

1шт.

37

A40324

SHAFT CPLG. KIT - distributor

1шт.

38

A40326

PACKAGE, REPAIR

BEARING KIT - distributor

1шт.

Выбрано товаров: 39
