Запчасти Case IH A284 (58) - INSTRUMENT PANEL, TYPE THREE DIESEL UNITS / TYPE THREE GASOLINE UNITS

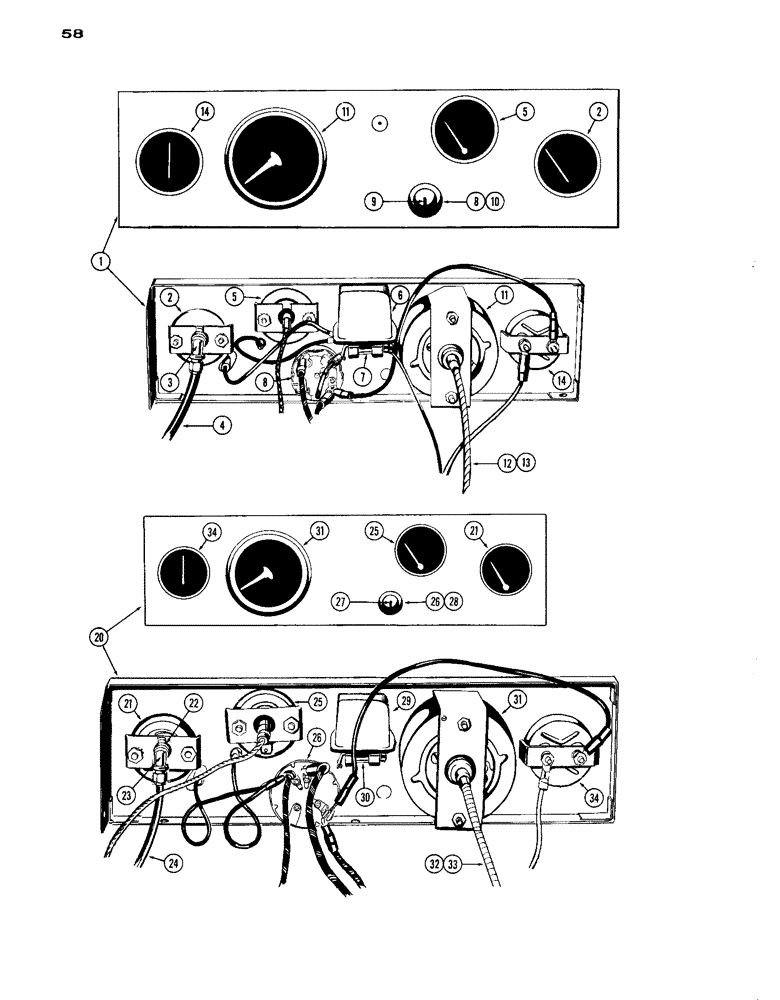

Схема запчастей Case IH A284 - (58) - INSTRUMENT PANEL, TYPE THREE DIESEL UNITS / TYPE THREE GASOLINE UNITS
6
1
27
28
34
25
24
4
30
25
21
33
34
8
12
31
23
11
2
21
26
29
8
11
5
5
22
26
3
20
9
32
10
2
14
31
13
14
7

Артикул

Название

Примечание

Количество

1

A11197

PANEL - instrument, Type 3 diesel units

1шт.

2

A10475

GAUGE ASSY. - oil (Murphy)

1шт.

3

222-53

ELBOW,3/8"-24 x 1/8 NPTF

- 1/8" tube x 1/8" male P.T.

1шт.

4

A20034

TUBE - oil gauge

1шт.

5

A10474

GAUGE

ASSY. - eng. temperature

1шт.

6

A23261

SWITCH

ASSY. - relay

1шт.

7

223-14

FUSE,10 Amp, Type SFE

- relay switch

1шт.

8

A24510

SWITCH

- starting (Diesel) includes keys

1шт.

9

A24509

KEY

- ignition start, Set of 2

2шт.

10

O7549AB

SPACER - ignition switch

2шт.

11

A11190

TACHOMETER

ASSY. - engine

1шт.

12

A11198

CABLE ASSY. - tachometer

1шт.

13

A20370

X

CABLE - tachometer drive

1шт.

14

O3601AB1

X

GAUGE - ammeter

1шт.

A9321

CLIP - instrument panel, upper (Not illust.)

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

20

A11197

PANEL - instrument, Type 3 gasoline units

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

A9321

CLIP - panel, upper (Not illust.)

1шт.

21

A10475

GAUGE - oil (Murphy)

1шт.

22

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - 1/8" tube x 1/8" male P.T.

1шт.

23

222-53

ELBOW,3/8"-24 x 1/8 NPTF

- 1/8" tube x 1/8" male P.T.

1шт.

24

A20034

TUBE - oil gauge

1шт.

25

A10474

GAUGE

- engine temperature

1шт.

26

A24511

SWITCH

- ignition, w/key (Gas)

1шт.

27

A24509

KEY

- ignition switch

2шт.

28

A11736

SPACER - ignition switch

1шт.

29

A23261

SWITCH

ASSY. - relay

1шт.

30

223-14

FUSE,10 Amp, Type SFE

- relay switch

1шт.

31

A11190

TACHOMETER

ASSY. - engine

1шт.

32

A11093

CABLE ASSY. - tachometer drive

1шт.

33

A20260

X

CABLE - drive, tachometer

1шт.

34

O3601AB1

X

GAUGE - ammeter

1шт.

Выбрано товаров: 33
