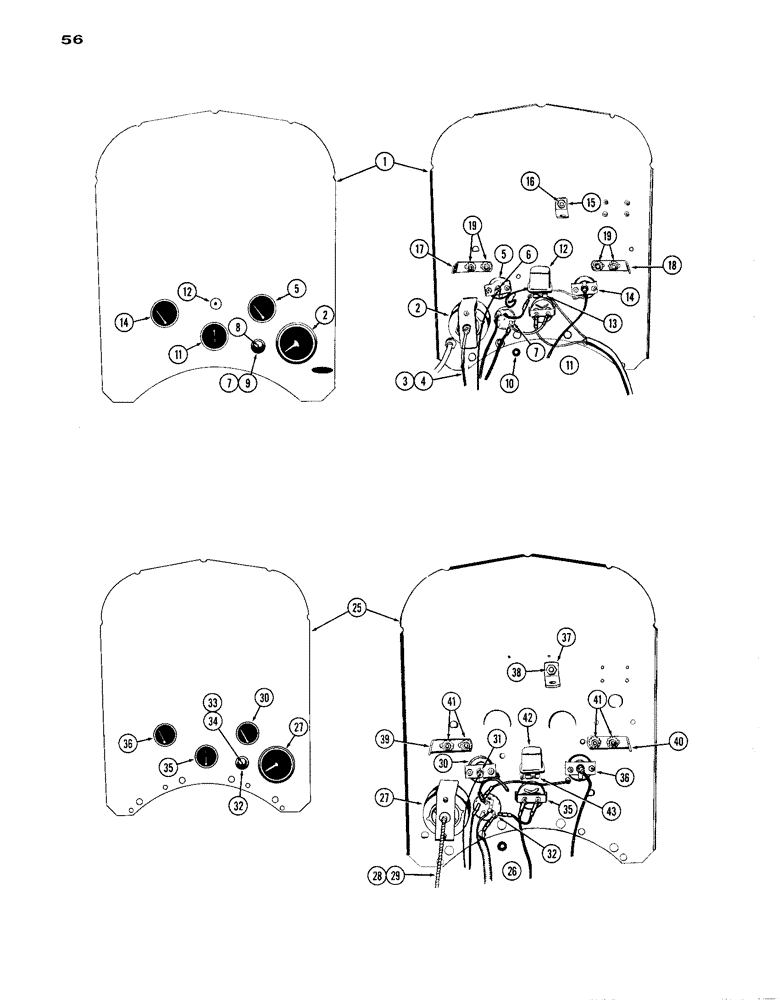

Запчасти Case IH A284 (56) - INSTRUMENT PANEL, TYPE TWO DIESEL UNITS / TYPE TWO GAS UNITS / TYPE 2 & 3 LP GAS & NAT. GAS UNITS
№
Артикул
Название
Примечание
Количество
1
A11192
PANEL - instrument, Type 2 diesel units
1шт.
2
A11190
TACHOMETER
ASSY. - engine
1шт.
3
A11191
CABLE ASSY. - tachometer
1шт.
4
A20366
X
CABLE - tachometer
1шт.
5
A10475
GAUGE - oil (Murphy)
1шт.
6
A11189
TUBE - oil gauge
1шт.
7
A24510
SWITCH
- starting (Diesel) includes keys
1шт.
8
A24509
KEY
- ignition start, Set of 2
2шт.
9
O7339AB
SPACER - ignition switch
2шт.
10
O8066AB
SPACER - instrument panel
4шт.
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- 1/2" x 2-1/2" N.C., hex.
2шт.
13-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
- 1/2" x 3" N.C., hex.
2шт.
11
O3601AB1
X
GAUGE ASSY. - ammeter
1шт.
12
A23261
SWITCH
ASSY. - relay
1шт.
14
A10471
GAUGE ASSY. - eng. temperature (Murphy)
1шт.
15
A9358
BRACE - rear hood support
1шт.
16
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
17
A7006
CLIP - hood latch, rear R.H.
1шт.
18
A7007
CLIP - hood latch, rear L.H.
1шт.
19
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
25
A11192
PANEL - instrument, Type 2 gasoline units, Type 2 & 3 L.P. Gas & Natural Gas Units
1шт.
26
O8066AB
SPACER - instrument panel
4шт.
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- 1/2" x 2-1/2" N.C., hex.
2шт.
13-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
- 1/2" x 3" N.C., hex.
2шт.
27
A11190
TACHOMETER
ASSY. - engine
1шт.
29
A20260
X
CABLE - drive, tachometer
1шт.
30
A10475
GAUGE - oil (Murphy)
1шт.
31
A11189
TUBE - oil gauge
1шт.
32
A24511
SWITCH
- ignition, w/key (Gas)
1шт.
33
A24509
KEY
- ignition switch
2шт.
34
A11736
SPACER - ignition switch
1шт.
35
O3601AB1
X
GAUGE ASSY. - ammeter
1шт.
36
A10471
GAUGE ASSY. - engine temperature
1шт.
37
A9358
BRACE - rear hood support
1шт.
38
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
39
A7006
CLIP - hood latch, rear R.H.
1шт.
40
A7007
CLIP - hood latch, rear L.H.
1шт.
41
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
42
A23261
SWITCH
ASSY. - relay
1шт.
Выбрано товаров: 42
