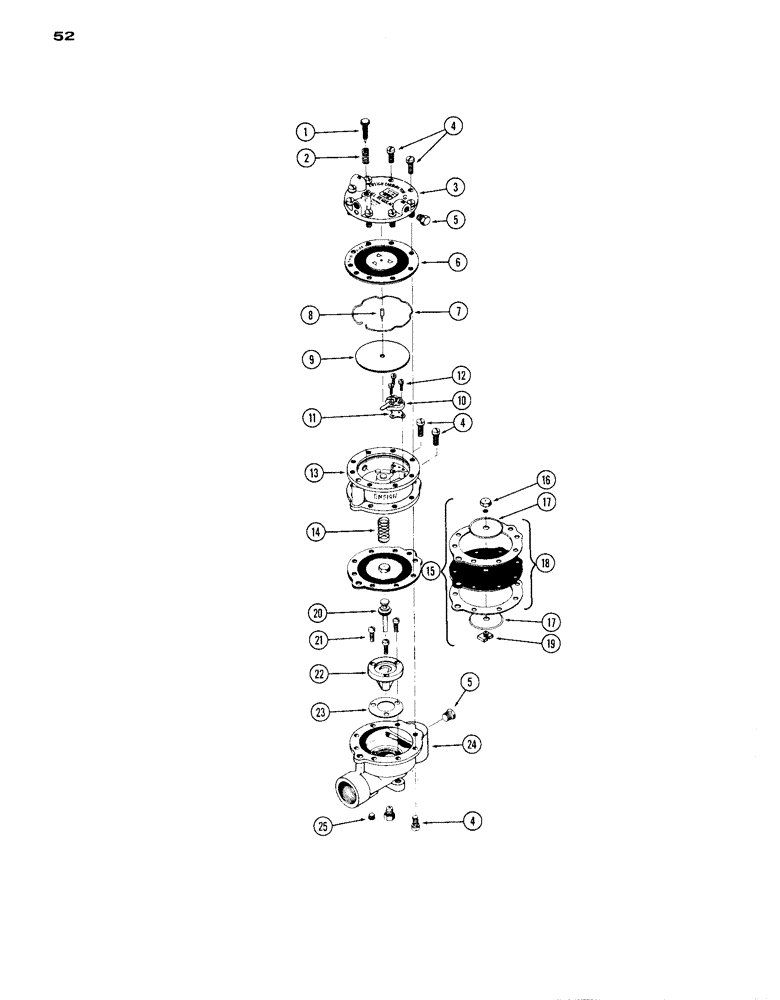

Запчасти Case IH A284 (52) - A9730 REGULATOR, NATURAL GAS ENGINE

A9730

REGULATOR ASSY. - fuel, nat. gas

1шт.

1

B50106

SCREW - adjusting, idle

1шт.

Part of carburetor repair kit P/N B50048

1шт.

2

A40714

SPRING - tension, idle screw

1шт.

Part of carburetor repair kit P/N B50048

1шт.

3

A40715

COVER - bowl, regulator

1шт.

4

B50034

SCREW - cover and body

16шт.

Part of carburetor repair kit P/N B50048

1шт.

5

221-1001

PLUG,Sq Hd, 1/8"-27 NPTF

- pipe, 1/8" sq. hd.

2шт.

6

B50127

DIAPHRAGM - upper, regulator

1шт.

Part of carburetor repair kit P/N B50048

1шт.

7

A40717

LOCKWIRE - plate, regulator

1шт.

Part of carburetor repair kit P/N B50048

1шт.

8

A40716

ROD - push, upper diaphragm

1шт.

Part of carburetor repair kit P/N B50048

1шт.

9

A40718

PLATE - partition

1шт.

10

A40720

VALVE - pilot, regulator

1шт.

Part of carburetor repair kit P/N B50048

1шт.

11

A40721

GASKET - pilot valve

1шт.

Part of carburetor repair kit P/N B50048

1шт.

12

A40719

SCREW - mtg., pilot valve

3шт.

Part of carburetor repair kit P/N B50048

1шт.

13

A40722

BOWL - regulator

1шт.

14

A40723

SPRING - diaphragm

1шт.

Part of carburetor repair kit P/N B50048

1шт.

15

B50096

DIAPHRAGM ASSY. - lower

1шт.

Part of carburetor repair kit P/N B50048

1шт.

16

A40724

NUT - diaphragm

1шт.

17

A40725

PLATE - diaphragm

2шт.

18

A40726

DIAPHRAGM - lower

1шт.

19

A40727

PLATE - screw, diaphragm

1шт.

20

A40728

VALVE - diaphragm, lower

1шт.

Part of carburetor repair kit P/N B50048

1шт.

21

B50035

SCREW - mtg., valve seat

3шт.

Part of carburetor repair kit P/N B50048

1шт.

22

A40729

SEAT - valve, lower diaphragm

1шт.

Part of carburetor repair kit P/N B50048

1шт.

23

A40730

GASKET - valve seat

1шт.

Part of carburetor repair kit P/N B50048

1шт.

24

A40731

BODY - regulator

1шт.

25

B50058

PLUG - drain, body

1шт.

B50048

REPAIR KIT - reg. Includes: Ref. 1, 2, 4, 6, 7, 8, 10, 11, 12, 14, 15 and 20 thru 23

1шт.
