Запчасти Case IH A284 (50) - FUEL SYSTEM, NATURAL GAS ENGINE

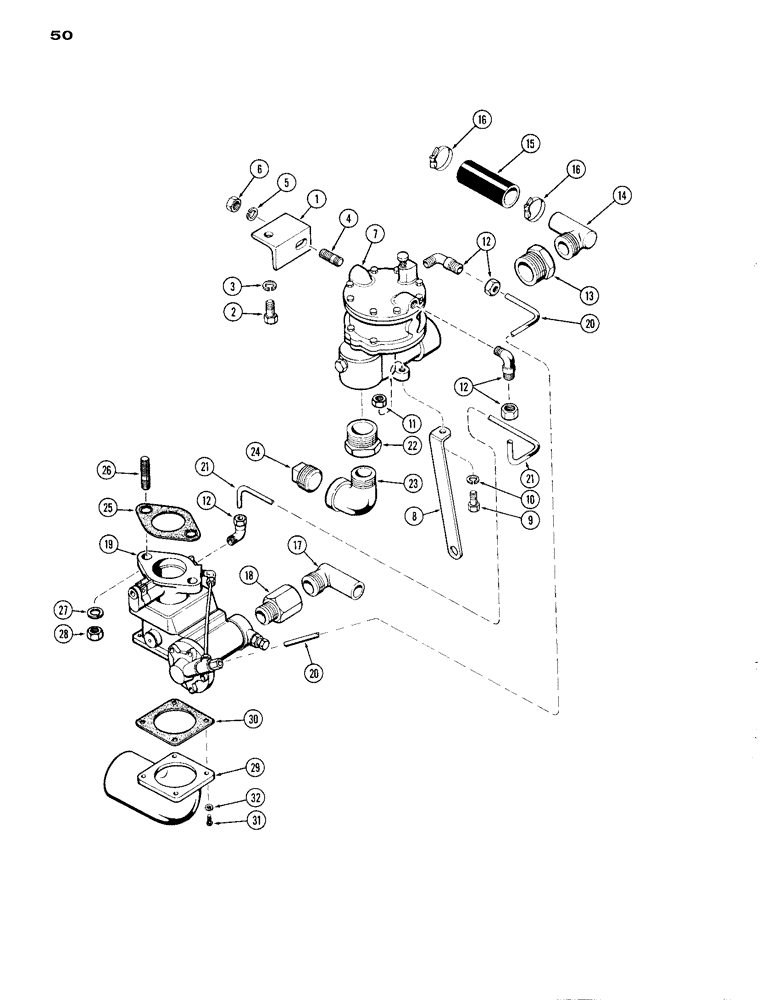

Схема запчастей Case IH A284 - (50) - FUEL SYSTEM, NATURAL GAS ENGINE
2
32
5
8
9
12
11
4
22
10
24
1
21
12
18
15
31
26
19
17
7
12
3
13
27
28
6
16
20
14
25
23
30
29
21
20
16

Артикул

Название

Примечание

Количество

1

A33568

BRACKET - mtg., regulator upper

1шт.

2

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

3

92-6

LOCK WASHER,3/8"

1шт.

4

A20626

STUD - mtg., Serial Range: bracket-regulator

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

1шт.

7

A9730

REGULATOR ASSY. - fuel (Repairs, P. 53)

1шт.

8

A33569

SUPPORT - regulator, lower

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C., hex.

1шт.

12

222-431

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

- 3/16" tube x 1/8" male P.T. (90deg.)

3шт.

13

A33567

ADAPTER

REDUCER - pipe, 1" Male to 1/2" Female P.T.

1шт.

14

A9155

90 ELBOW

- hose connection, 3/4" x 1/2" P.T.

1шт.

15

A33571

HOSE

-, Serial Range: regulator-carburetor

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

17

O8822AB

ELBOW - hose connection, 3/4" hose to 3/4" P.T.

1шт.

18

A33570

X

CONNECTOR - reducer, 3/4" female to 1/2" male P.T.

1шт.

19

A21229

STIFFENER

CARBURETOR ASSY. - fuel (Repairs, P. 47)

1шт.

20

A33572

TUBE - regulator to carburetor balance

1шт.

21

A33573

TUBE - regulator to carburetor idle

1шт.

22

221-604

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducer, 1" to 3/4" P.T.

1шт.

23

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

24

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - pipe, 3/4" sq. hd.

1шт.

25

O889AB1

X

GASKET -, Serial Range: carburetor-manifold

1шт.

26

A10029

STUD - mtg., Serial Range: carb.-manifold

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

2шт.

29

A21240

ELBOW - adapter, carburetor

1шт.

30

O8950AB

X

GASKET -, Serial Range: elbow-carburetor

1шт.

31

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- mach., #12 x 5/8" N.C., rd. hd.

4шт.

32

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

4шт.

A34171

CONVERSION KIT - nat. gas to LP-gas (mach. item)

1шт.

Выбрано товаров: 33
