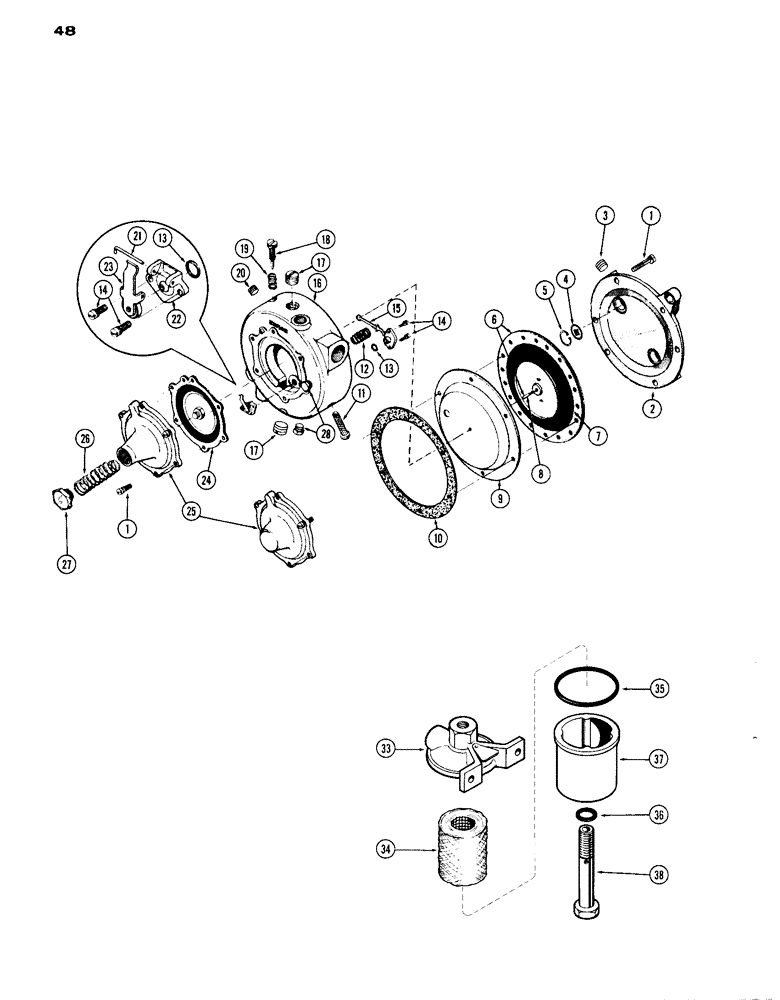

Запчасти Case IH A284 (48) - A21231 REGULATOR / A24535 FILTER, LP-GAS ENGINE

A21231

REGULATOR ASSY. - engine fuel

1шт.

1

B50035

SCREW - mtg., frt. & rear cover

12шт.

Part of regulator repair kit P/N B50052

1шт.

2

B50201

PLATE - cover, low pressure end

1шт.

3

221-1041

PLUG

- pipe, 1/8" slotted headless

1шт.

4

B50087

VALVE - compensator

1шт.

5

B50086

RING - retaining, valve

1шт.

6

B50180

DIAPHRAGM

ASSY. - low pressure

1шт.

Part of regulator repair kit P/N B50052

1шт.

7

A40079

DIAPHRAGM

- low pressure

1шт.

8

B50178

PIN - push, diaphragm

1шт.

Part of regulator repair kit P/N B50052

1шт.

9

B50175

PLATE - partition

1шт.

10

B50177

GASKET - partition plate

1шт.

Part of regulator repair kit P/N B50052

1шт.

11

B50168

STRAINER - fuel inlet

1шт.

Part of regulator repair kit P/N B50052

1шт.

12

B50191

SPRING - valve, low pressure

1шт.

Part of regulator repair kit P/N B50052

1шт.

13

B50179

"O" RING - low & hi pressure valve

2шт.

Part of regulator repair kit P/N B50052

1шт.

14

B50029

SCREW - valve mtg., high & low pressure

4шт.

Part of regulator repair kit P/N B50052

1шт.

15

B50181

VALVE - low pressure

1шт.

Part of regulator repair kit P/N B50052

1шт.

16

A25248

HOUSING - regulator

1шт.

17

221-1044

PLUG - pipe, 1/2" slotted headless

2шт.

18

B50024

SCREW - adjusting idle

1шт.

Part of regulator repair kit P/N B50052

1шт.

19

B50022

SPRING - idle adjusting

1шт.

Part of regulator repair kit P/N B50052

1шт.

20

A40167

SCREW - orifice, regulator

1шт.

21

B50159

PIN - valve lever

1шт.

22

B50176

VALVE - hi pressure

1шт.

Part of regulator repair kit P/N B50052

1шт.

23

B50182

LEVER - hi pressure valve

1шт.

24

B50108

DIAPHRAGM ASSY. - high pressure

1шт.

25

B50110

COVER - hi pressure end

1шт.

26

B50153

SPRING - hi pressure

1шт.

Part of regulator repair kit P/N B50052

1шт.

27

B50112

GUIDE - hi pressure spring

1шт.

28

221-1001

PLUG,Sq Hd, 1/8"-27 NPTF

- pipe, 1/8" sq. hd.

2шт.

B50052

REPAIR KIT - reg. Includes: Ref. 1, 6, 8, 10 thru 15, 18, 19, 22 and 26

1шт.

A24535

FILTER

ASSY. LP - gas fuel

1шт.

33

A24536

COVER - filter

1шт.

34

A24616

KIT

ELEMENT KIT - filter

1шт.

35

A24539

GASKET

-, Serial Range: body-cover

1шт.

36

A24538

GASKET

- retainer bolt

1шт.

37

A24537

BODY - element housing, filter

1шт.

38

A24541

BOLT - retainer, body

1шт.
